Lumbar Control Switch: Installation
WARNING:
To reduce the risk of serious injury, read and follow all warnings, cautions and notes at the beginning of the removal procedure.

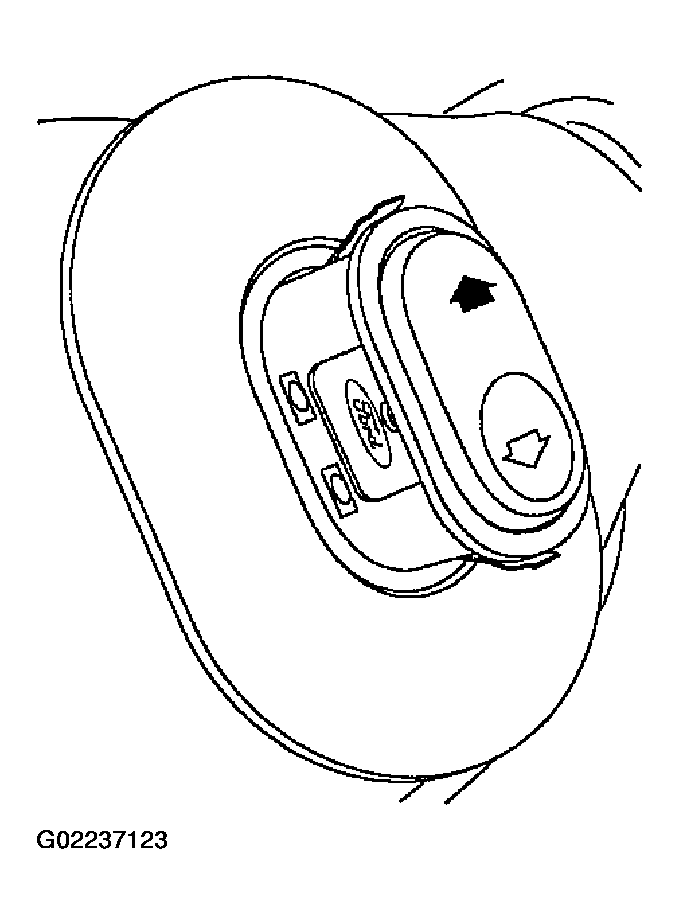

- Install the power lumbar switch until seated into bezel.
- Connect the power lumbar switch electrical connector.
- Assemble the front seat cushion. For additional information, see FRONT SEAT CUSHION .
- Install the affected seat. For additional information, see FRONT SEAT .
- Reactivate the supplemental restraint system (SRS). For additional information, see SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
- With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, see SYSTEM OPERATION CHECK .
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system deactivation/reactivation procedure.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
