Seat Heater Switch

Fig 1: Testing Seat Heater Switch - Driver Side
G00380006Courtesy of FORD MOTOR CO.

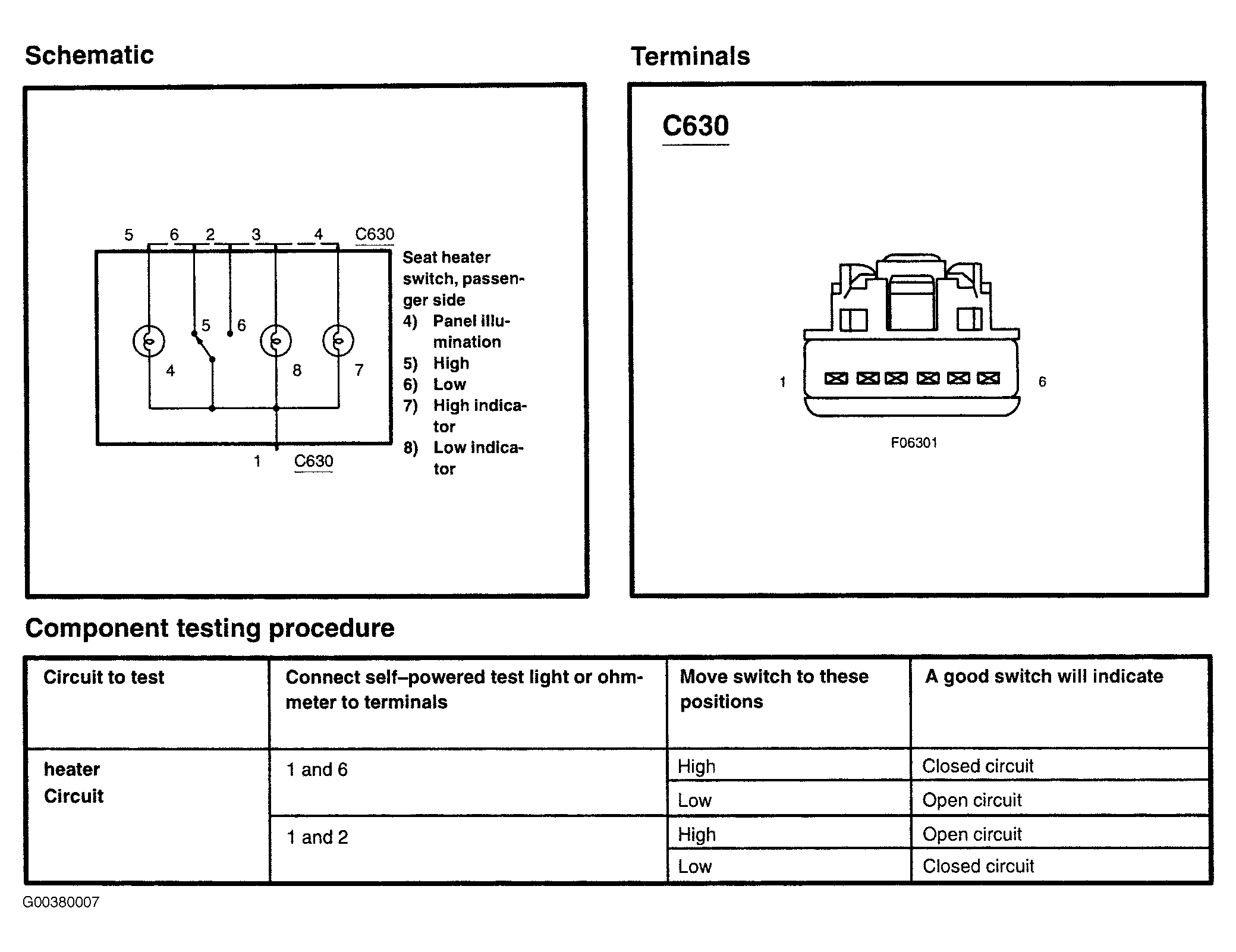

Fig 2: Testing Seat Heater Switch - Passenger Side
G00380007Courtesy of FORD MOTOR CO.
