Removal and Installation

Remove rear seat bottom. For additional information, see REAR SEAT CUSHION .
Disconnect the rear anti-lock brake sensor electrical connector.

Fig 1: Locating Rear Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Push the sensor harness grommet through the passenger compartment floor.

Fig 2: Locating Grommet In Passenger Compartment Floor
Courtesy of FORD MOTOR CO.

WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

Raise and support the vehicle. For additional information, see JACKING & HOISTING .
Disconnect the routing clips.

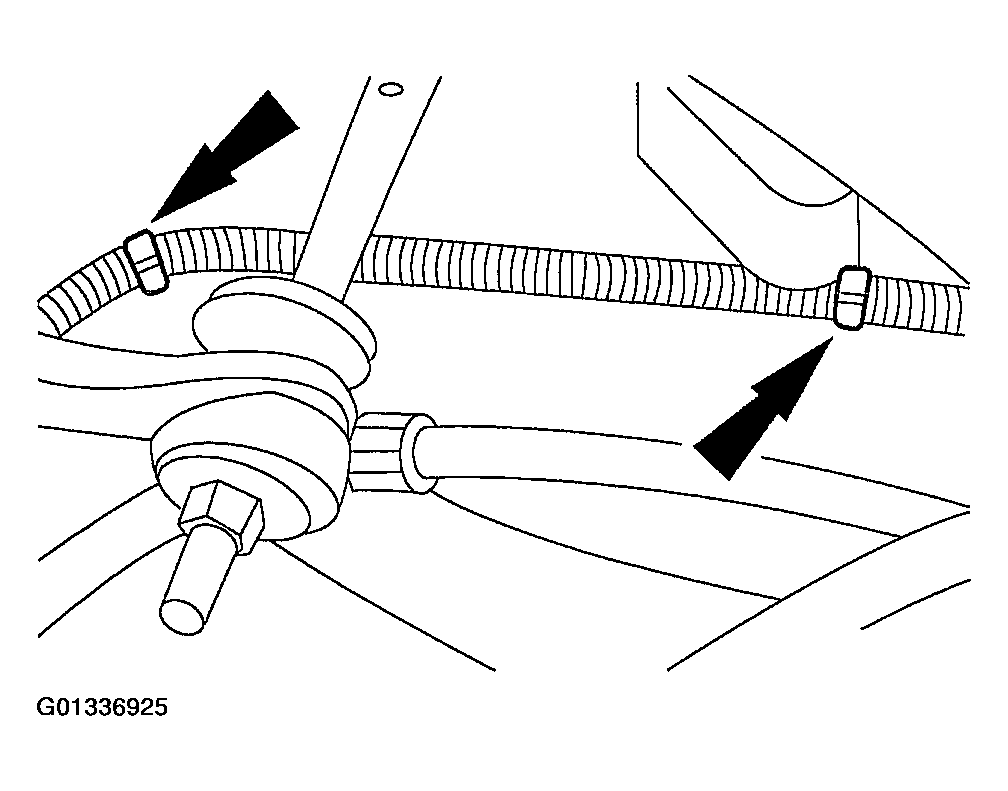

Fig 3: Locating Routing Clips
Courtesy of FORD MOTOR CO.
Remove the rear anti-lock brake sensor.
1. Remove the bolt.
2. Remove the sensor.

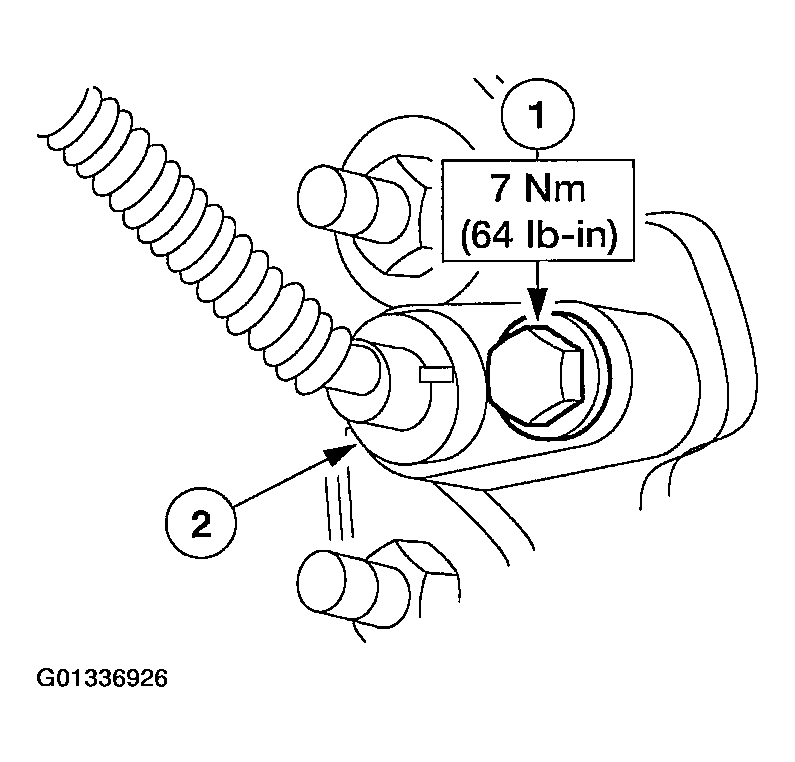

Fig 4: Removing Rear Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
