Town Car Protection Series
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Description And Operation
>>
Disassembled Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Disassembled Views

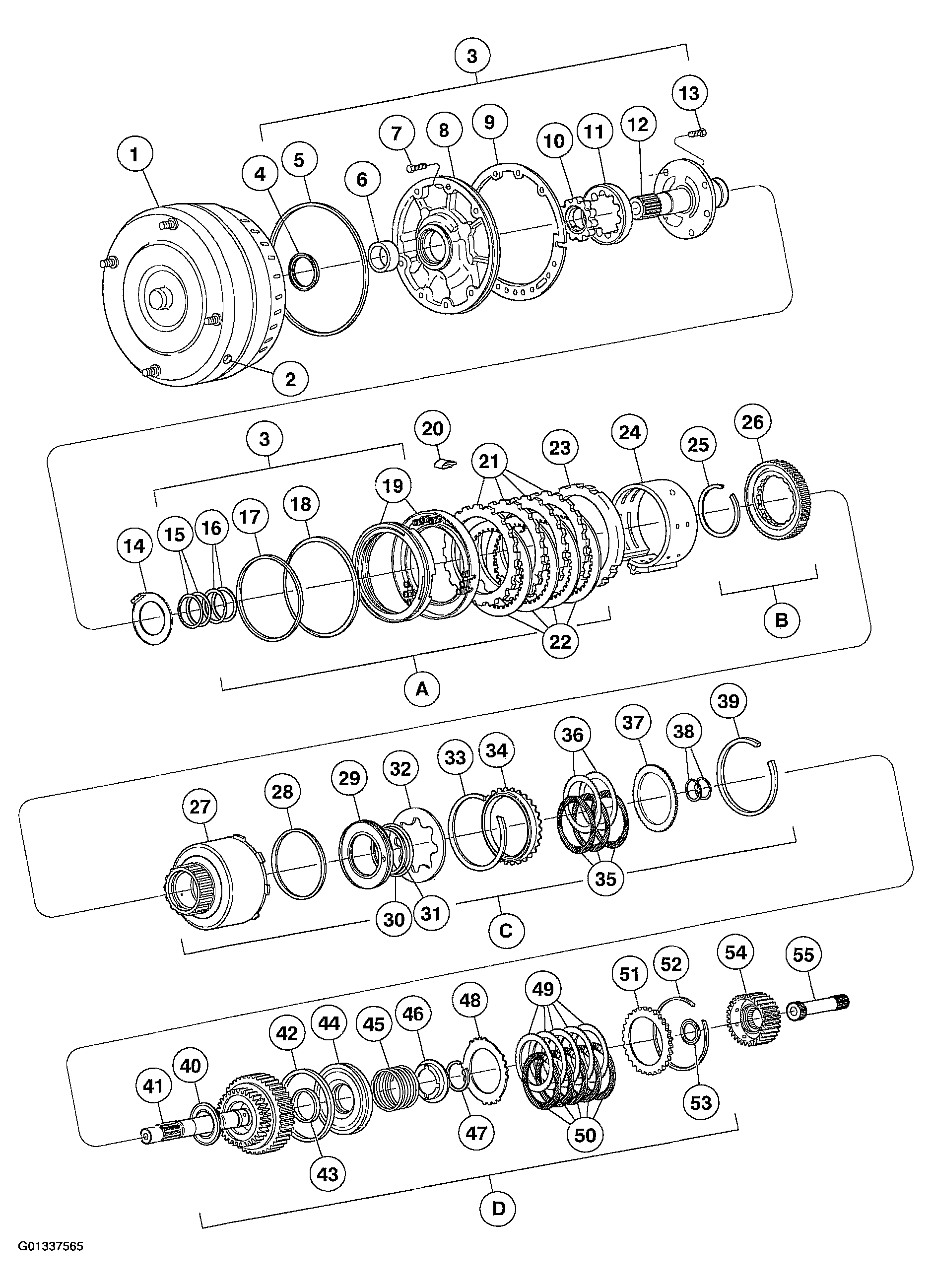

Fig 1: 4R70W Automatic Transmission - Disassembled View (1 Of 2)
Courtesy of FORD MOTOR CO.

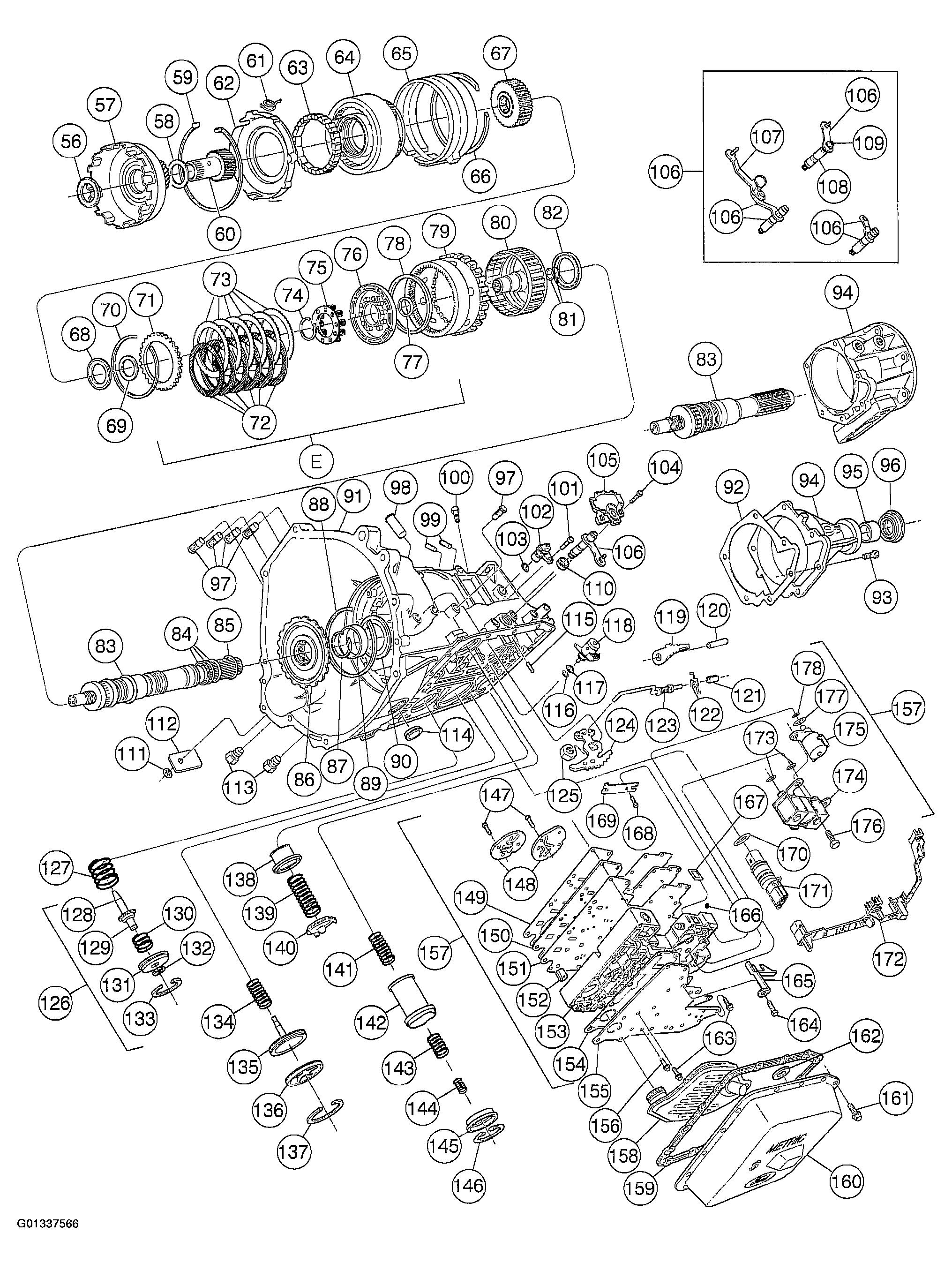

Fig 2: 4R70W Automatic Transmission - Disassembled View (2 Of 2)
Courtesy of FORD MOTOR CO.

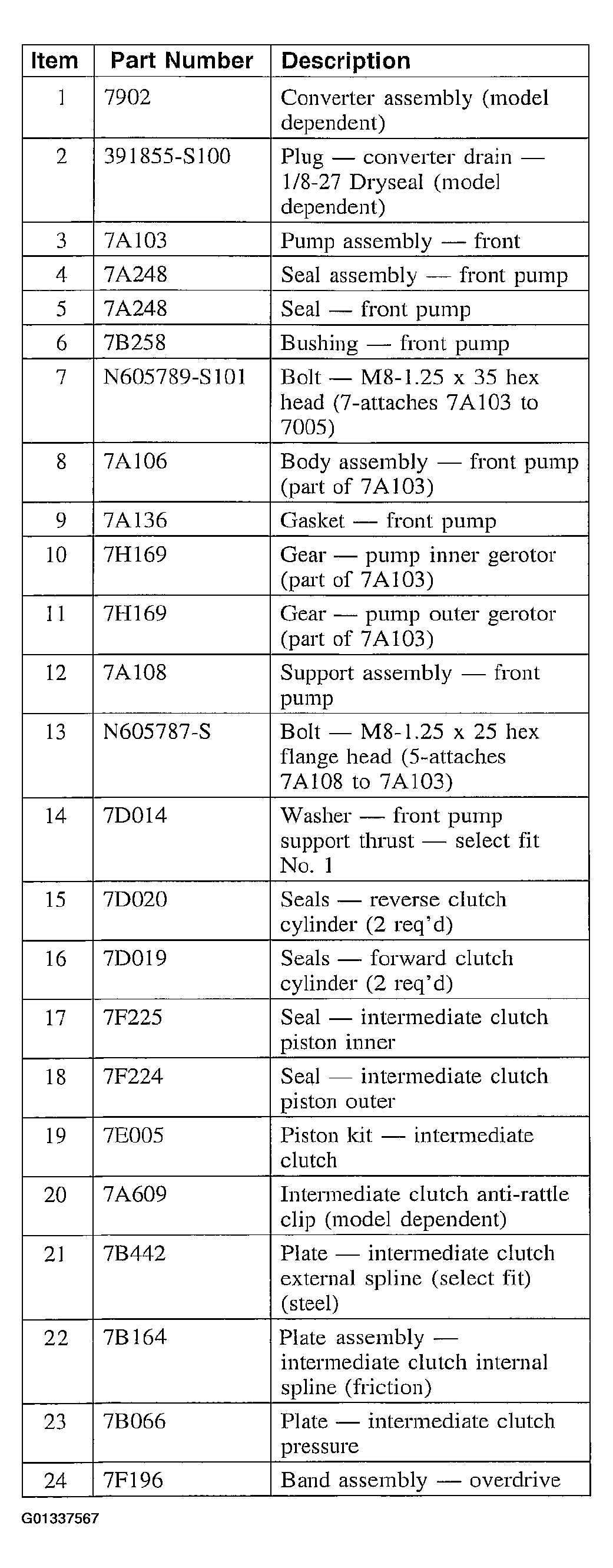

Fig 3: 4R70W Automatic Transmission - Disassembled View Legend (Items 1-24)
Courtesy of FORD MOTOR CO.

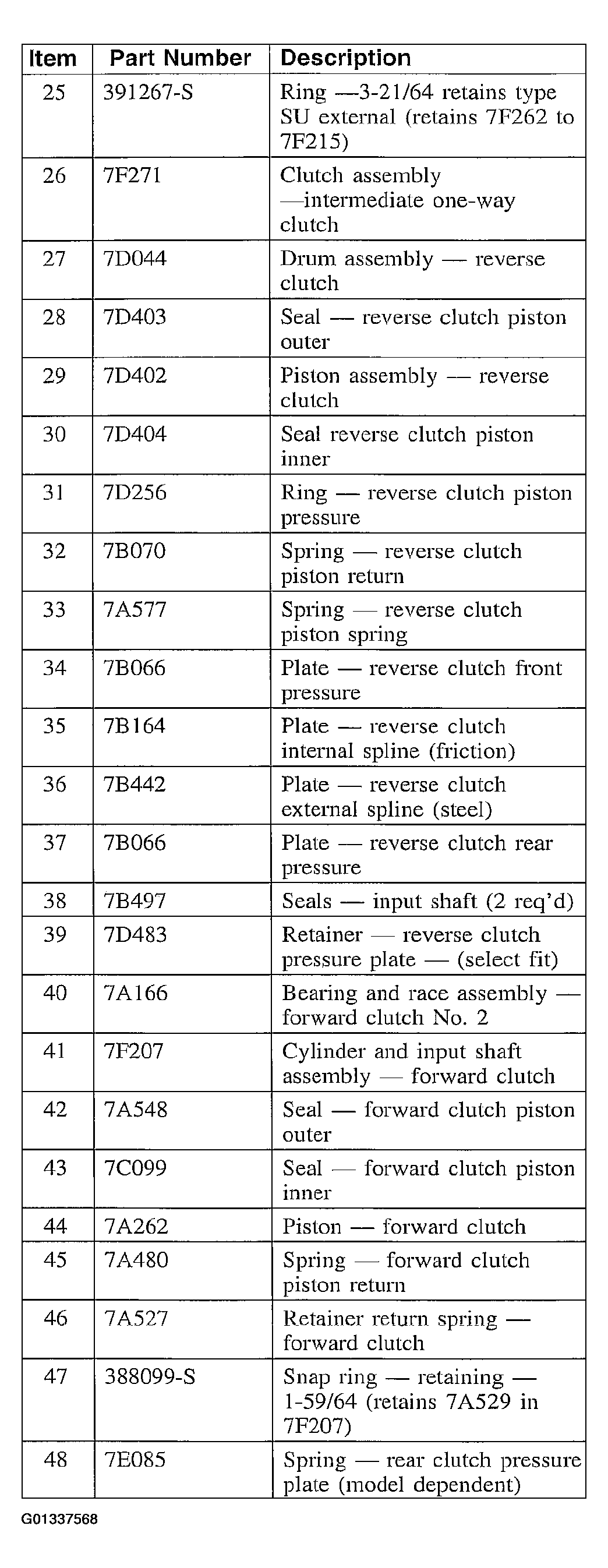

Fig 4: 4R70W Automatic Transmission - Disassembled View Legend (Items 25-48)
Courtesy of FORD MOTOR CO.

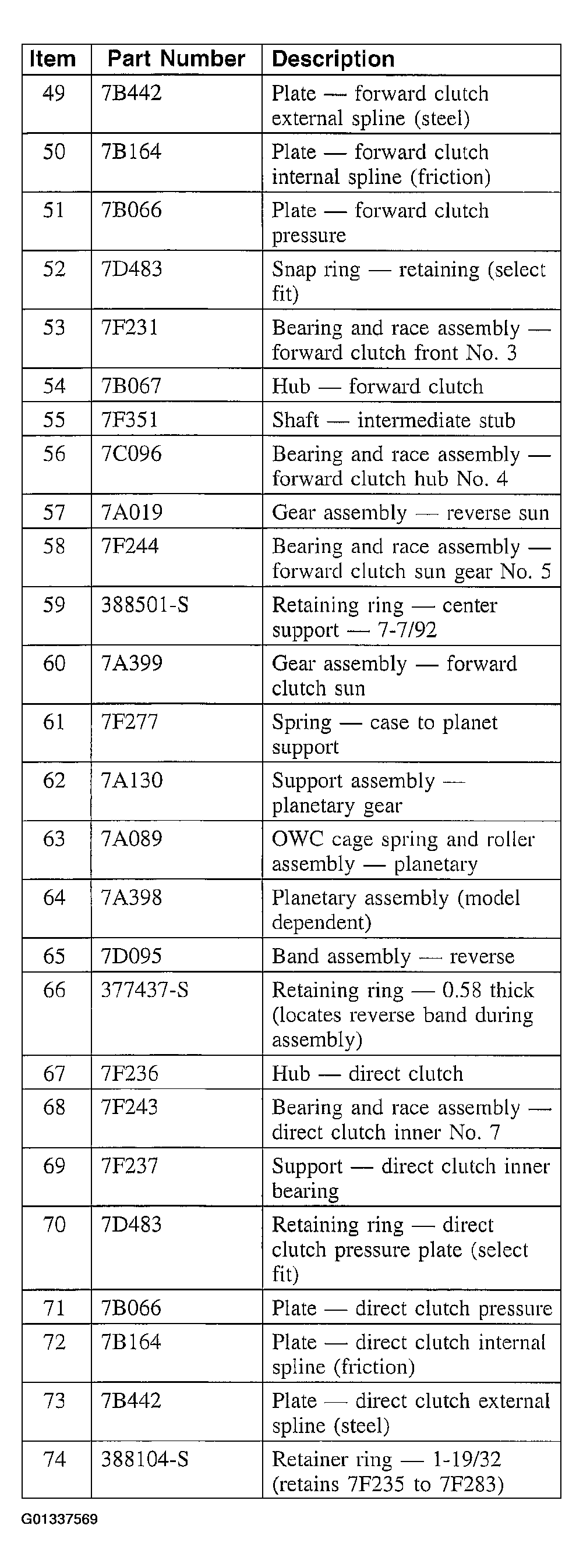

Fig 5: 4R70W Automatic Transmission - Disassembled View Legend (Items 49-74)
Courtesy of FORD MOTOR CO.

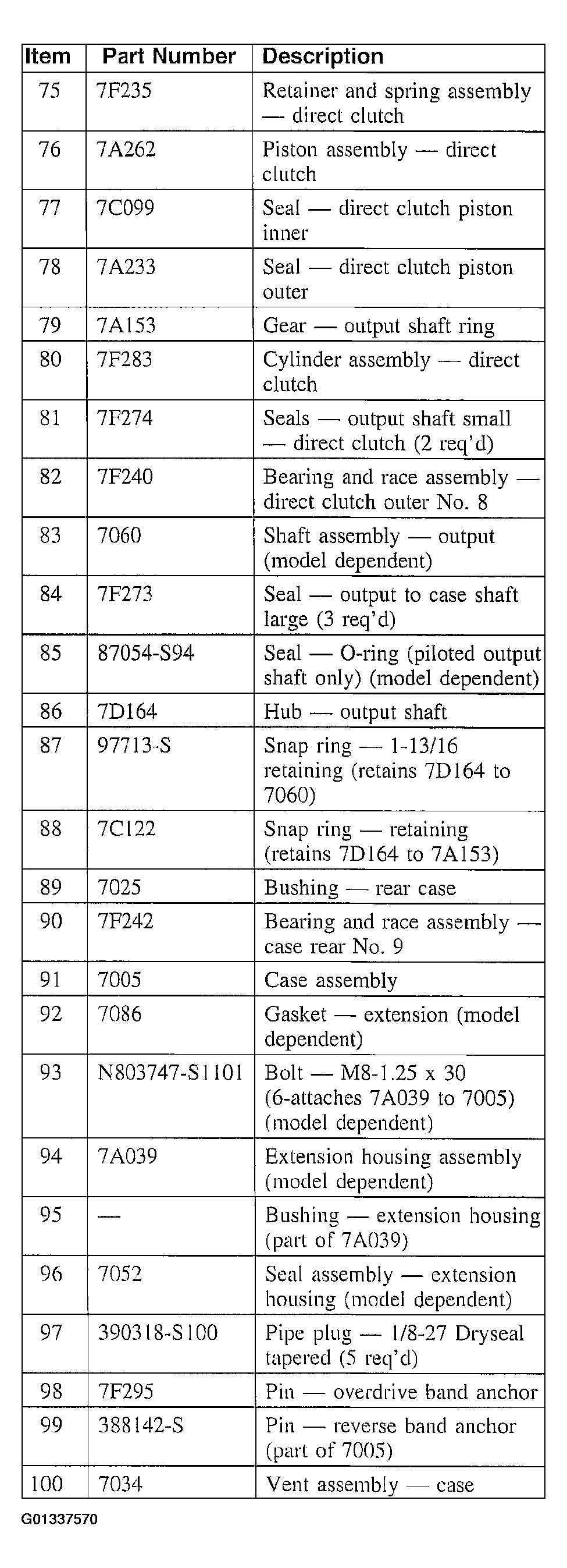

Fig 6: 4R70W Automatic Transmission - Disassembled View Legend (Items 75-100)
Courtesy of FORD MOTOR CO.

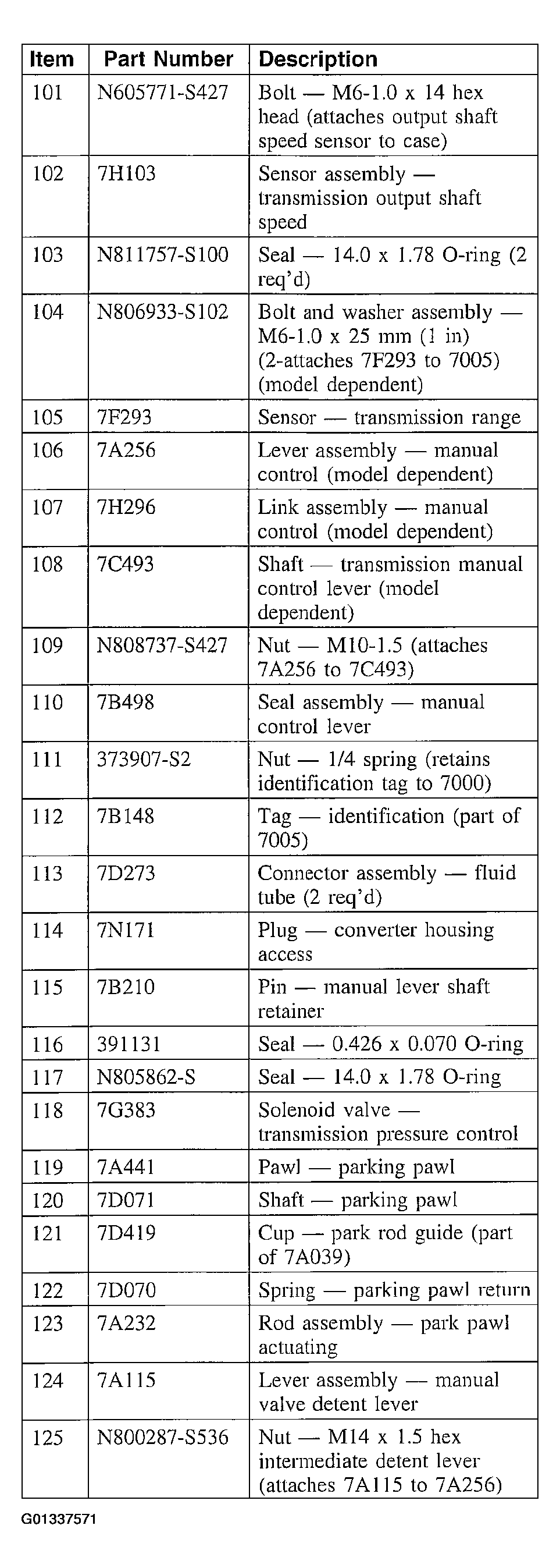

Fig 7: 4R70W Automatic Transmission - Disassembled View Legend (Items 101-125)
Courtesy of FORD MOTOR CO.

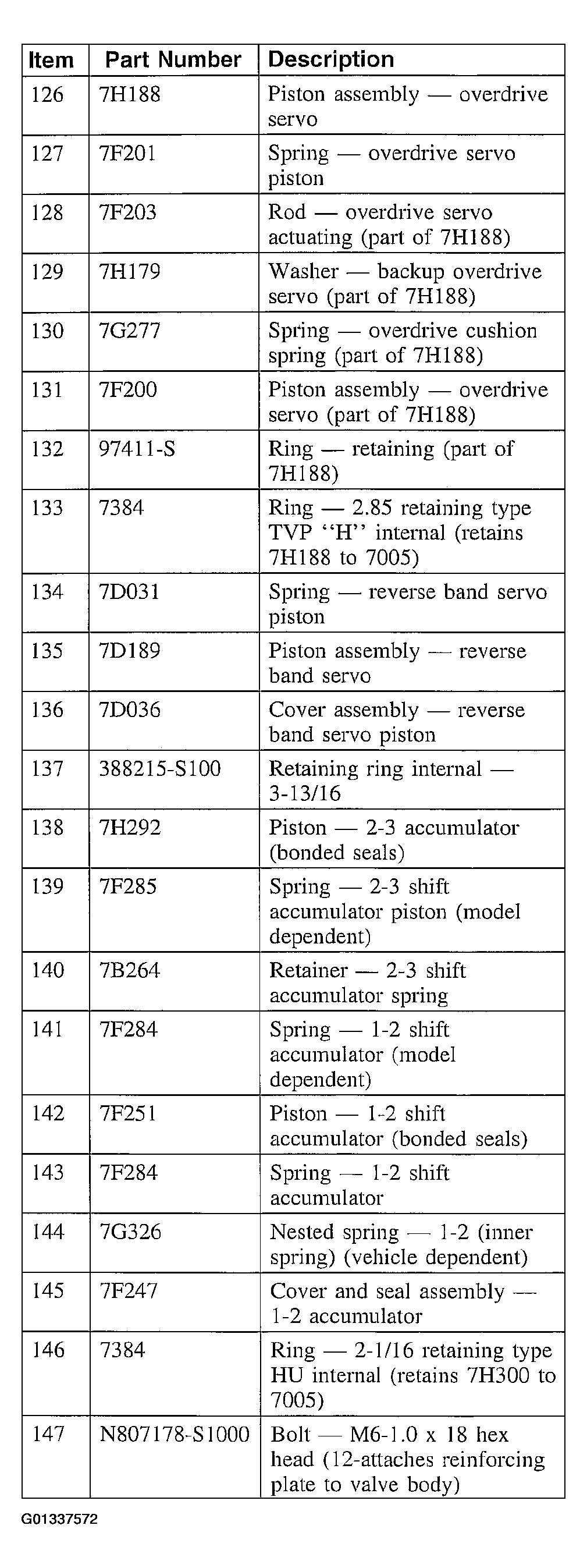

Fig 8: 4R70W Automatic Transmission - Disassembled View Legend (Items 126-147)
Courtesy of FORD MOTOR CO.

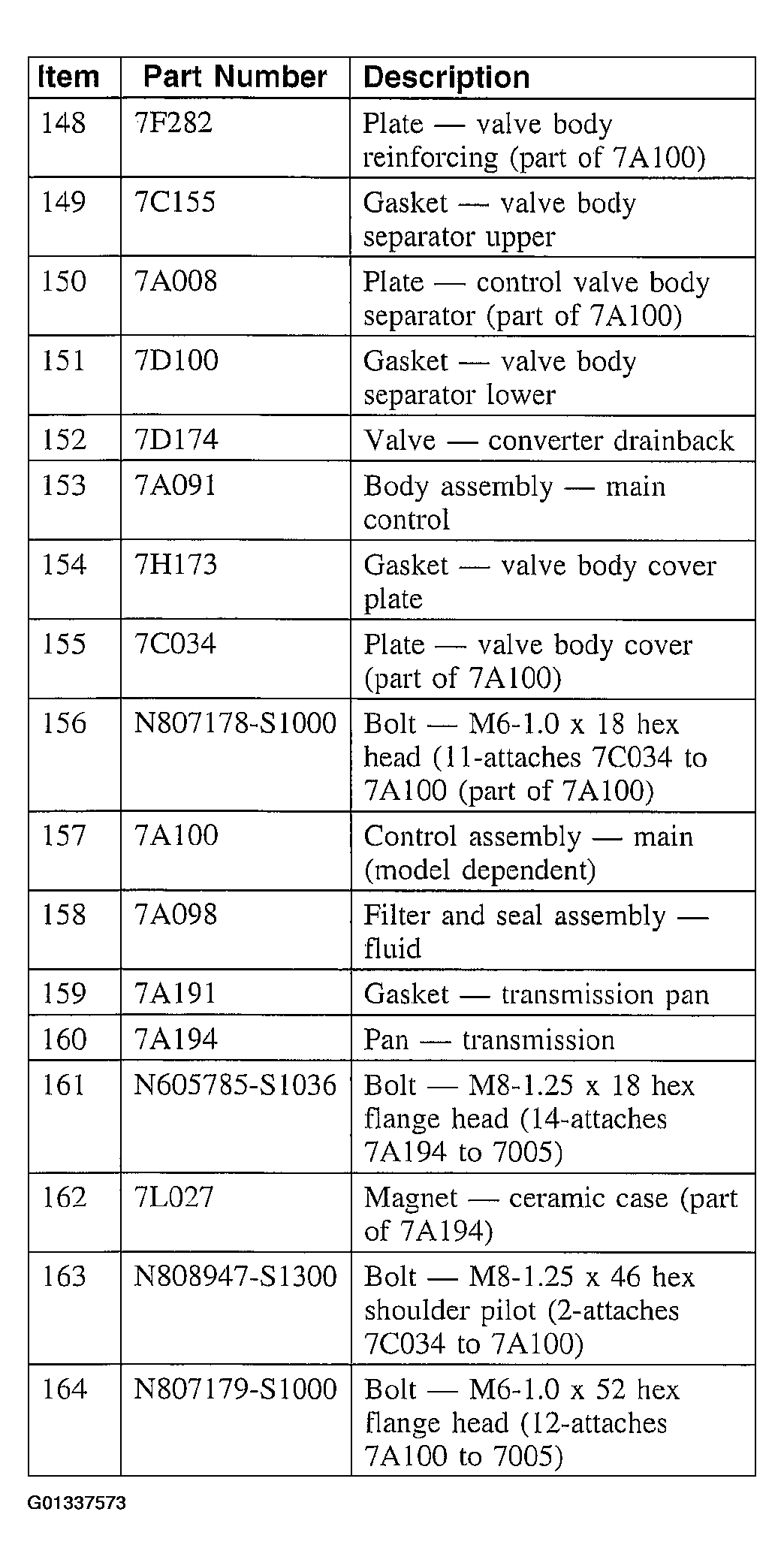

Fig 9: 4R70W Automatic Transmission - Disassembled View Legend (Items 148-164)
Courtesy of FORD MOTOR CO.

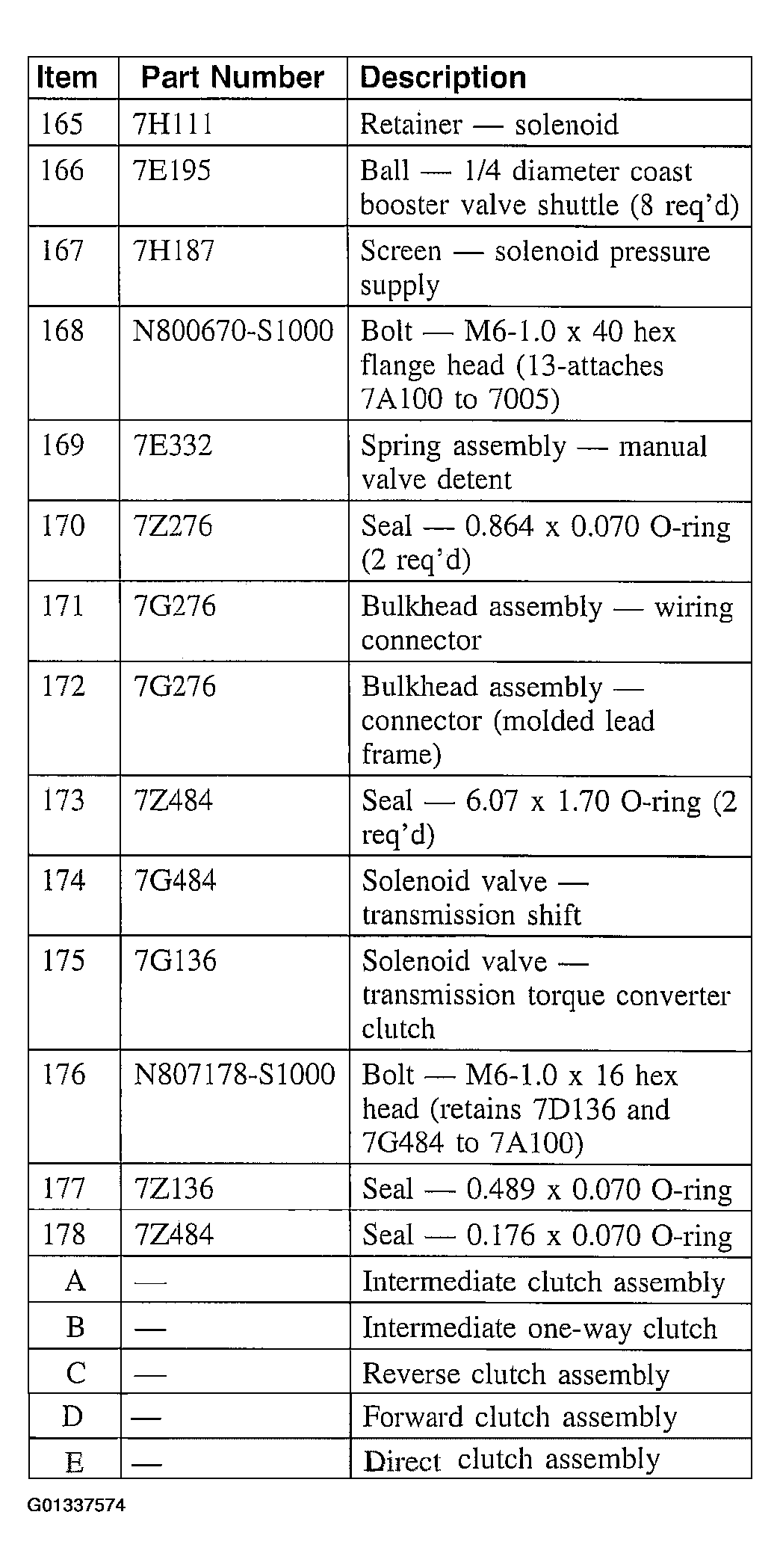

Fig 10: 4R70W Automatic Transmission - Disassembled View Legend (Items 165-178 & Items A-E)
Courtesy of FORD MOTOR CO.
