Transmission Connector Layouts: Notes

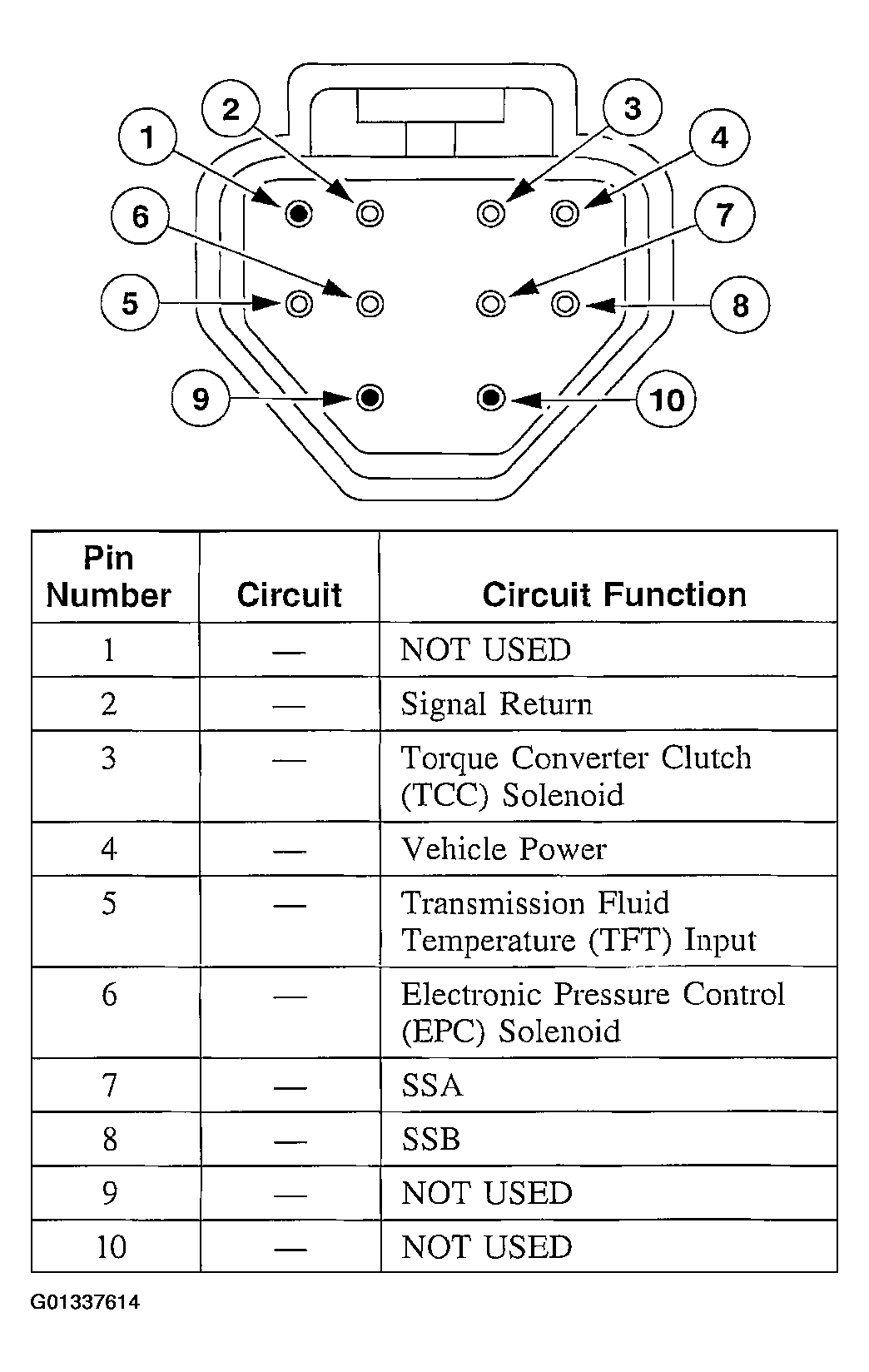

Fig 1: Identifying Transmission Vehicle Harness Connector Terminals
G01337614Courtesy of FORD MOTOR CO.

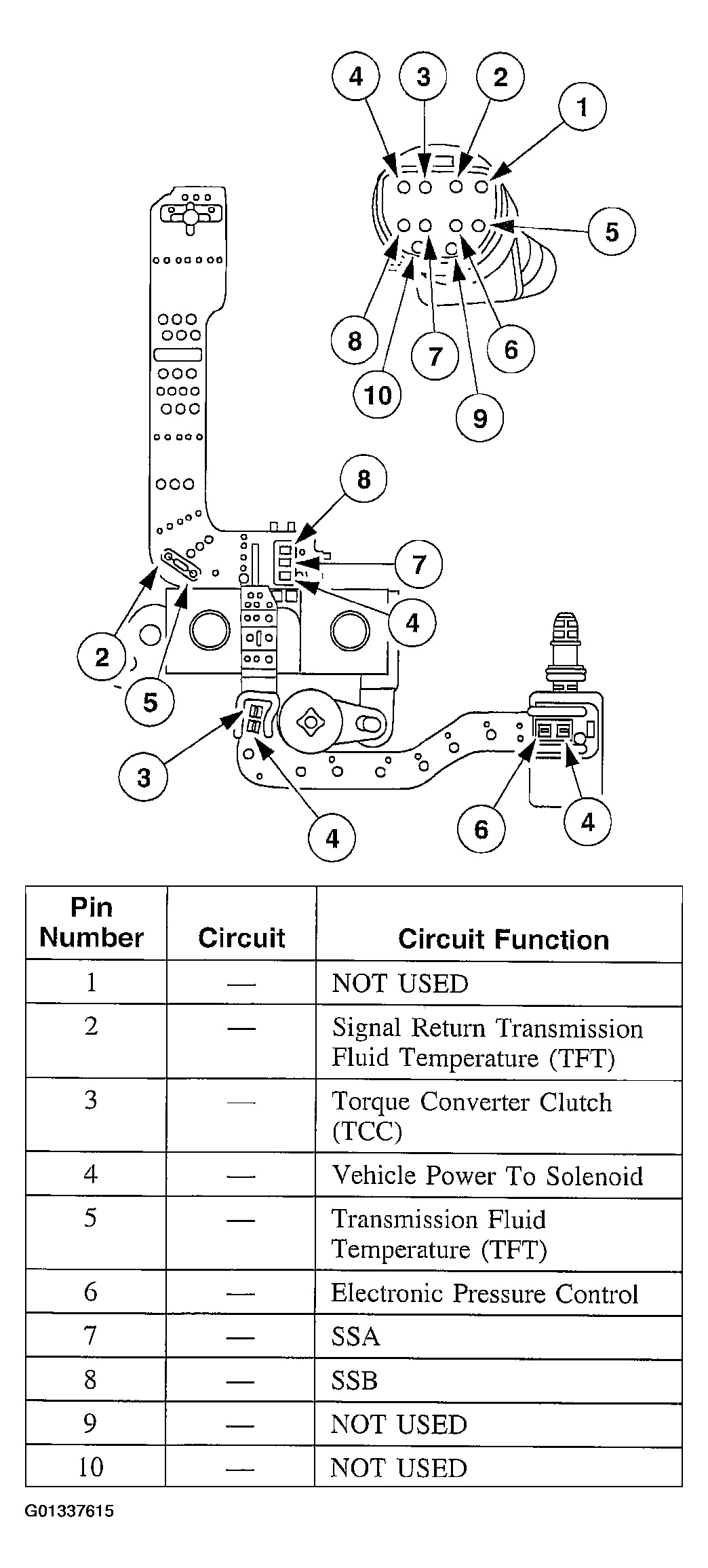

Fig 2: Identifying Transmission Internal Harness Connector Terminals
G01337615Courtesy of FORD MOTOR CO.

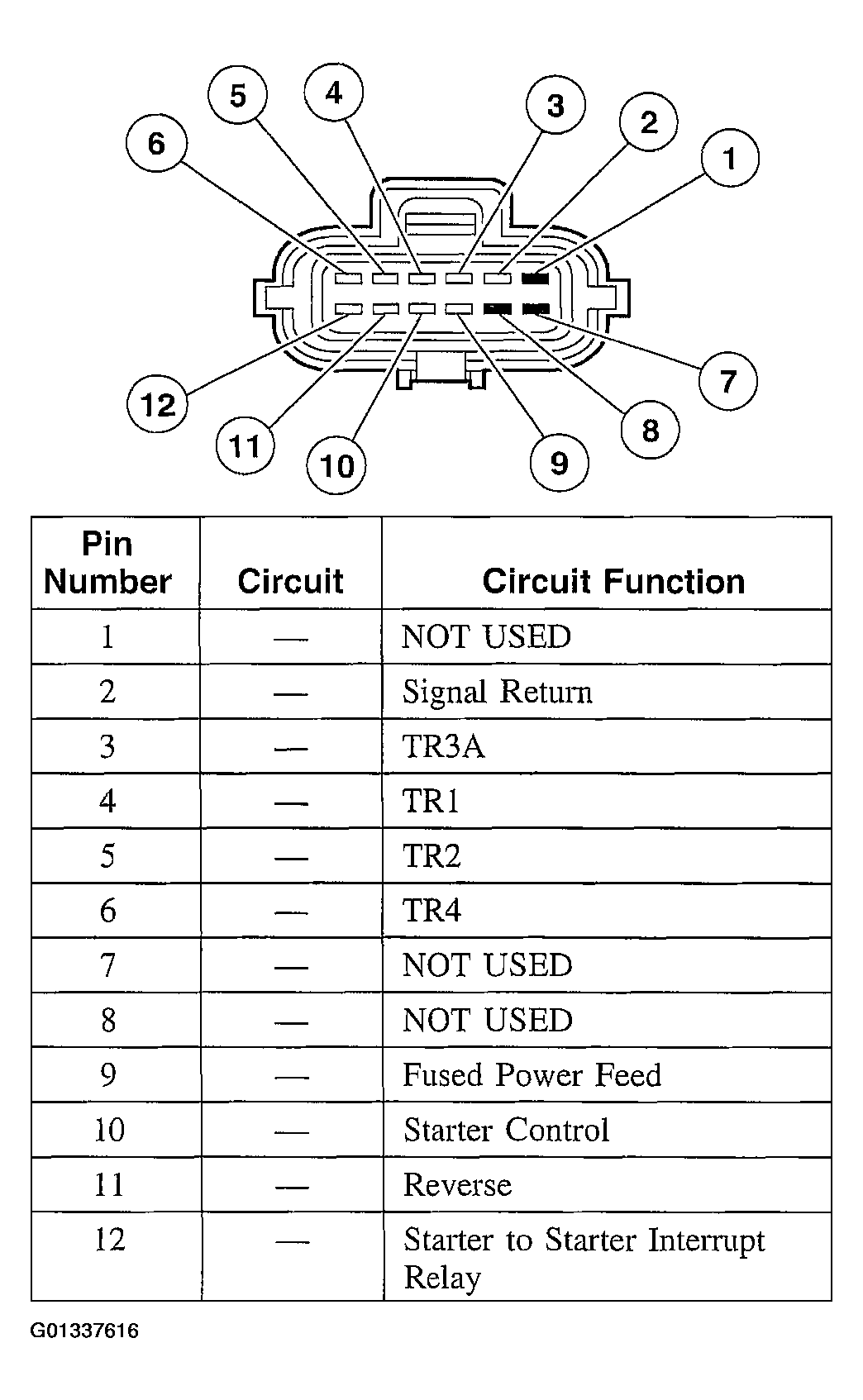

Fig 3: Identifying Digital Transmission Range (TR) Sensor Connector Terminals
G01337616Courtesy of FORD MOTOR CO.

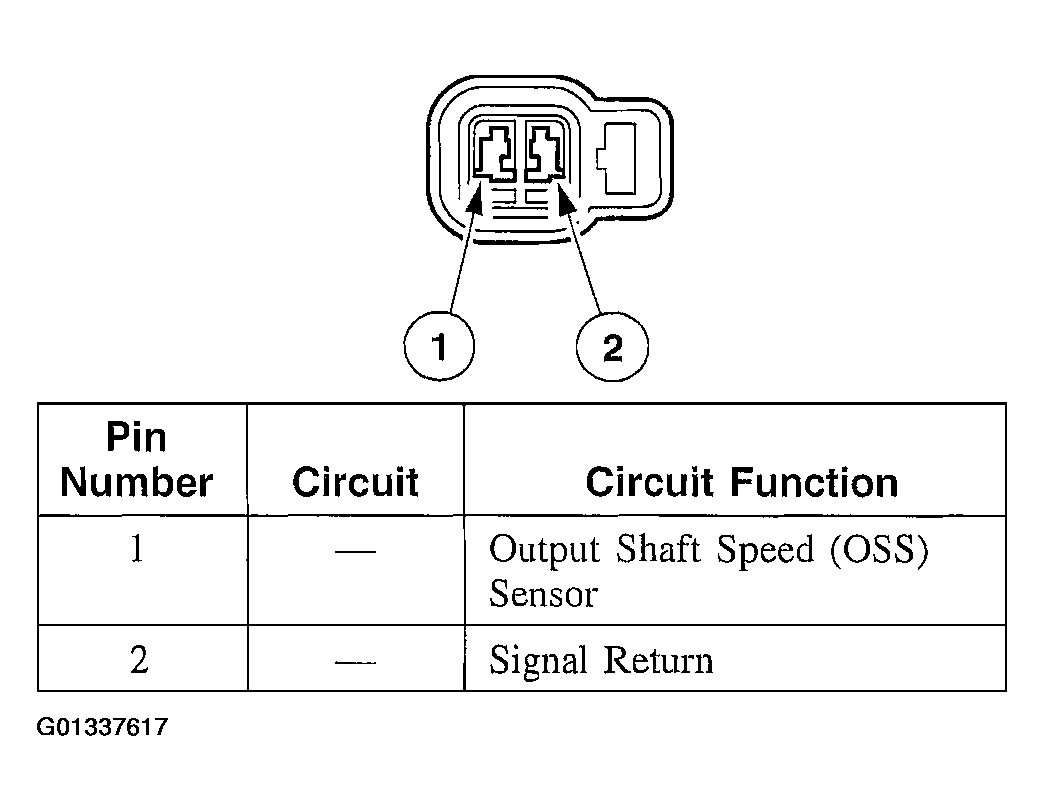

Fig 4: Identifying Output Shaft Speed (OSS) Sensor Harness Connector Terminals
G01337617Courtesy of FORD MOTOR CO.
