Clockspring C218a

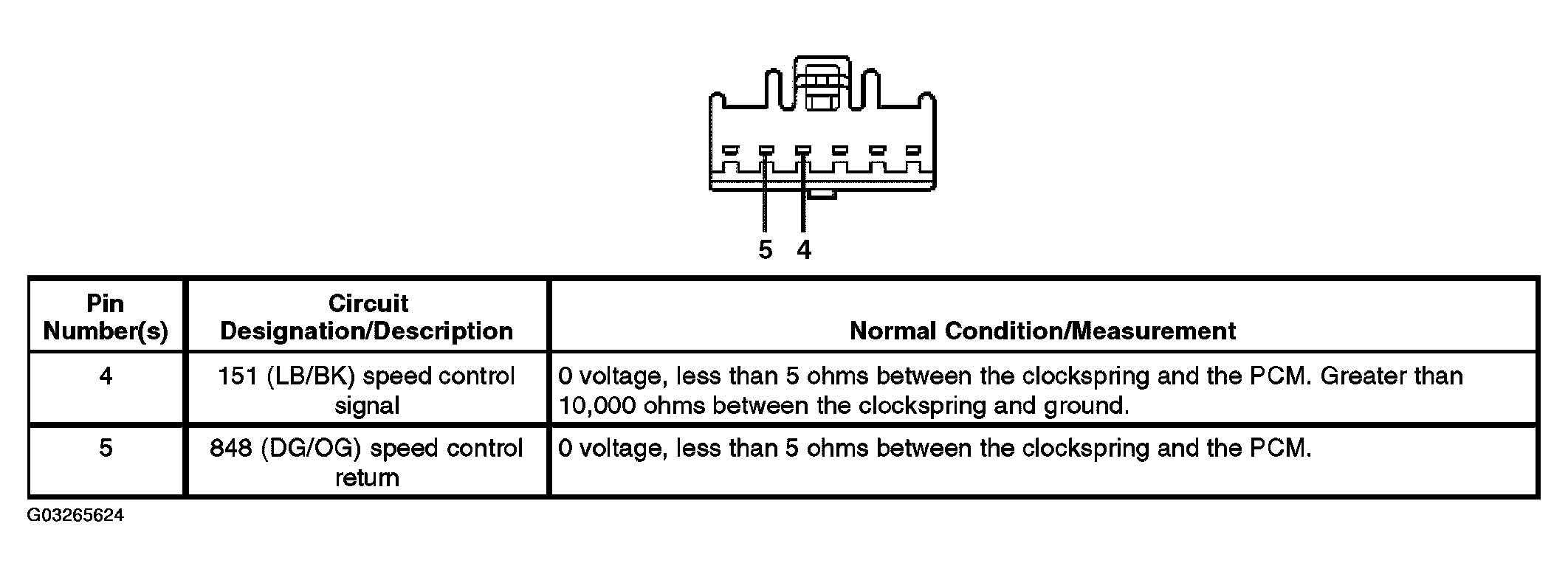

Fig 1: Locating Clockspring C218a Connector Pin
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
