Antenna Module C4082

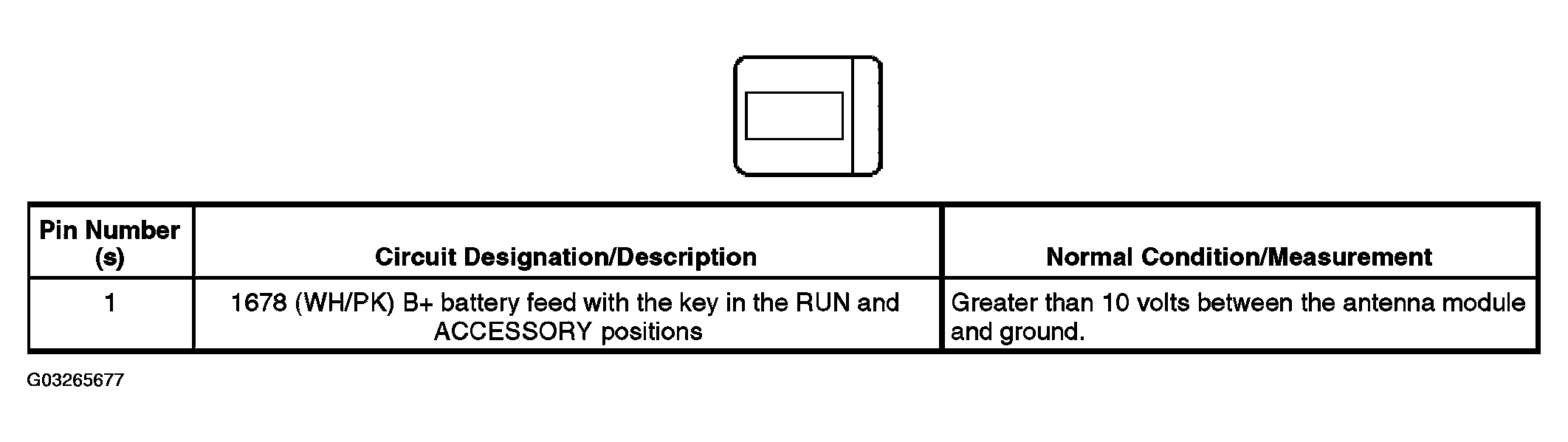

Fig 1: Identifying Antenna Module C4082 Pinouts Reference Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
