Audio Unit Amplifier: Notes

  1. Disconnect the battery.
  2. Remove the right side rear quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  3. Remove the parts in the order indicated in the following illustration and table.

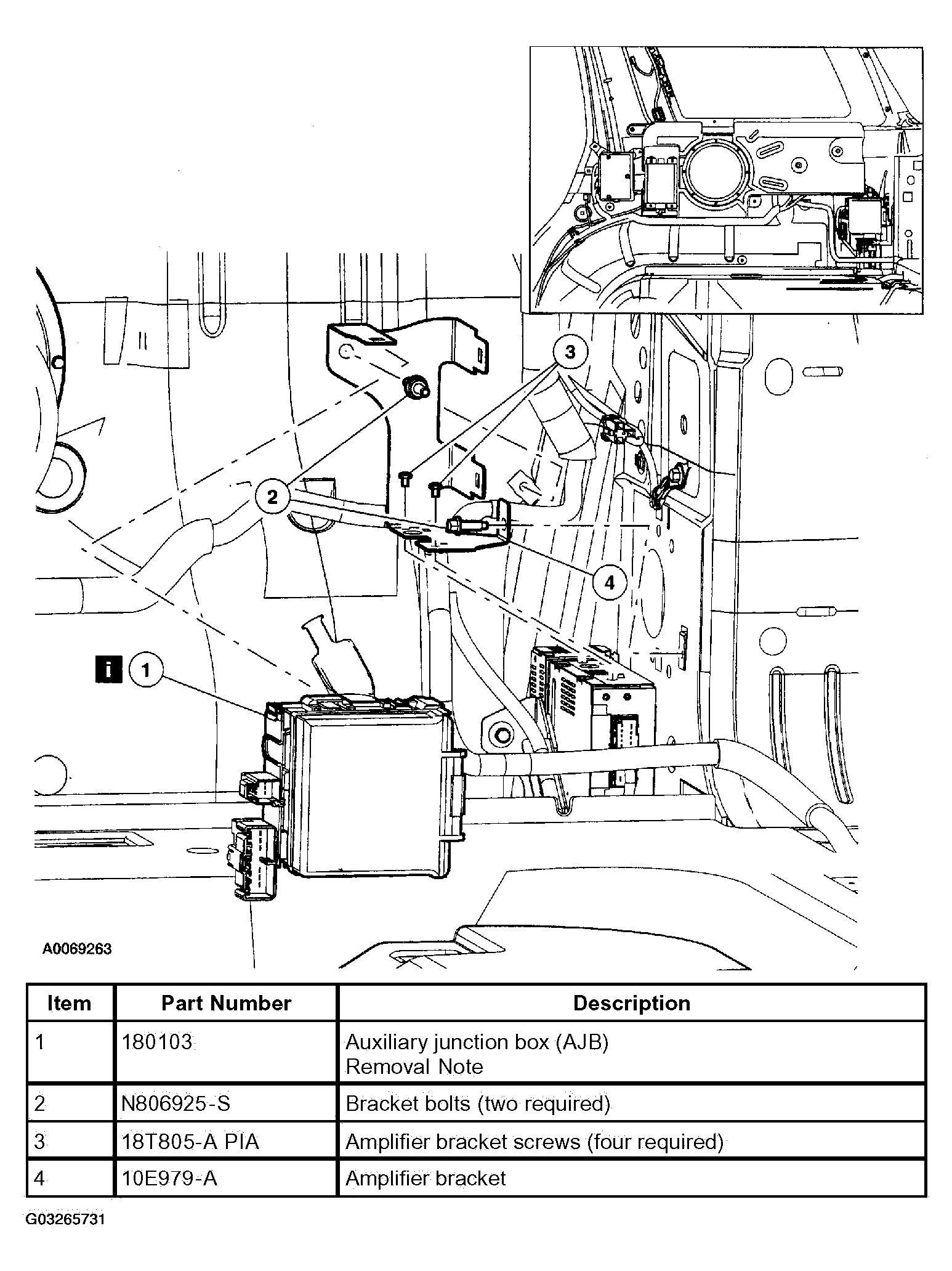

    Fig 1: Identifying Removal Order Of Audio Unit Amplifier (Items 1-4)
    G03265731Courtesy of FORD MOTOR CO.

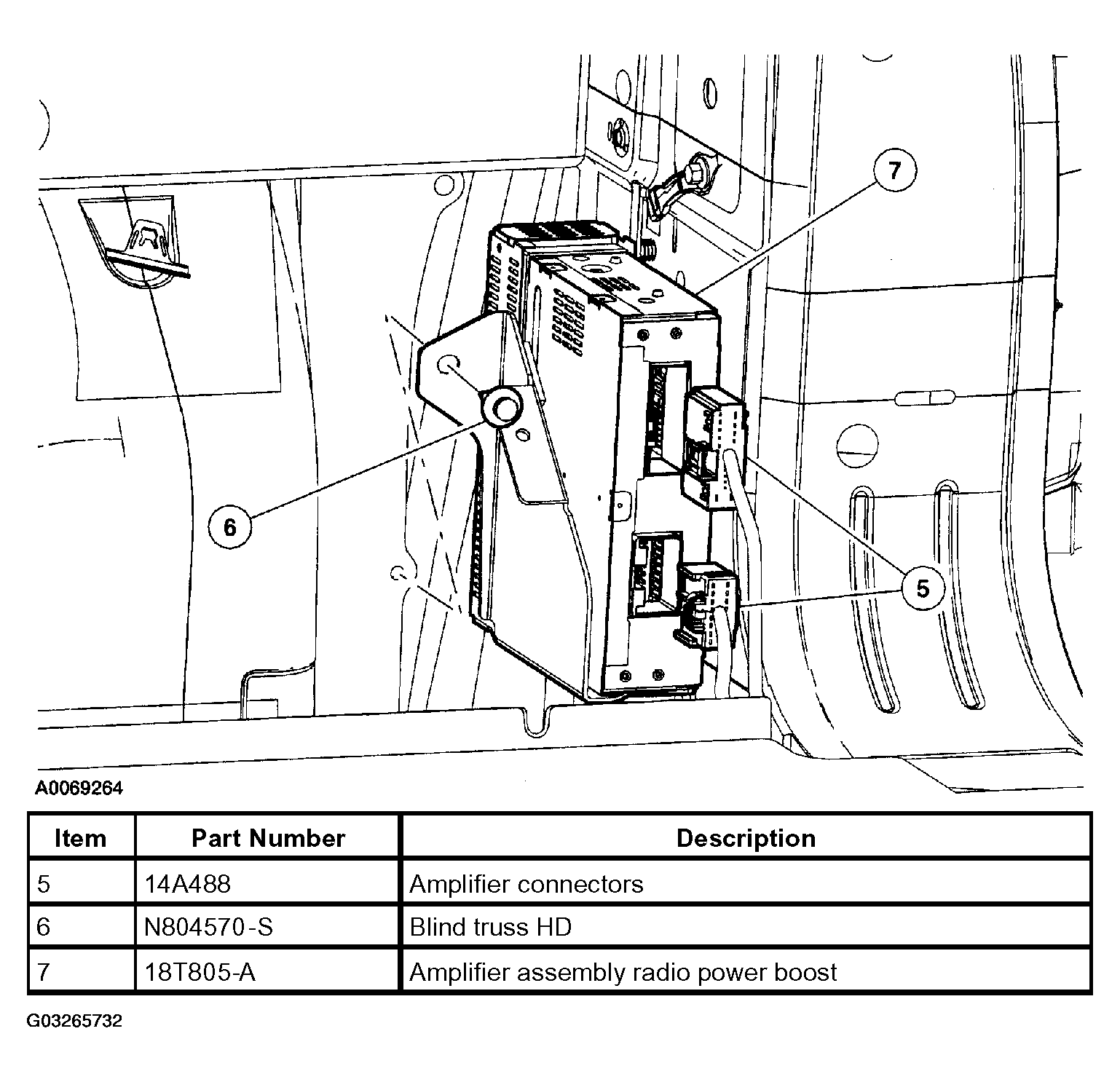

    Fig 2: Identifying Removal Order Of Audio Unit Amplifier (Items 5-7)
    G03265732Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
