Rear Window Wiper: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    REAR WINDOW WIPER COMPONENT REMOVAL STEPS

    Part Steps
    Rear Window Wiper Pivot Arm 1-2
    Rear Window Wiper Motor Assembly 1-8

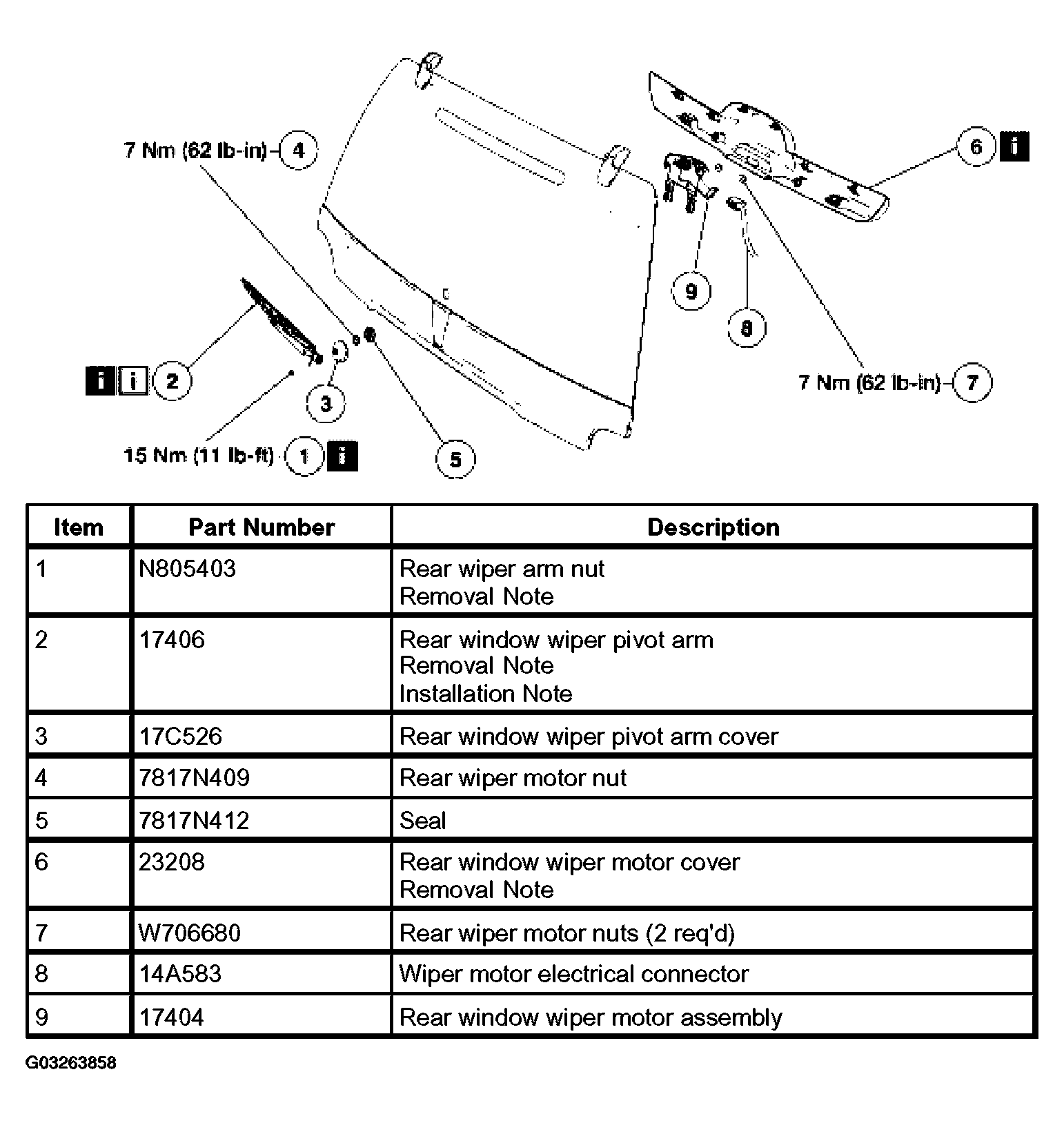

    Fig 1: Removing Rear Window Wiper
    G03263858Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
