(TR) Sensor

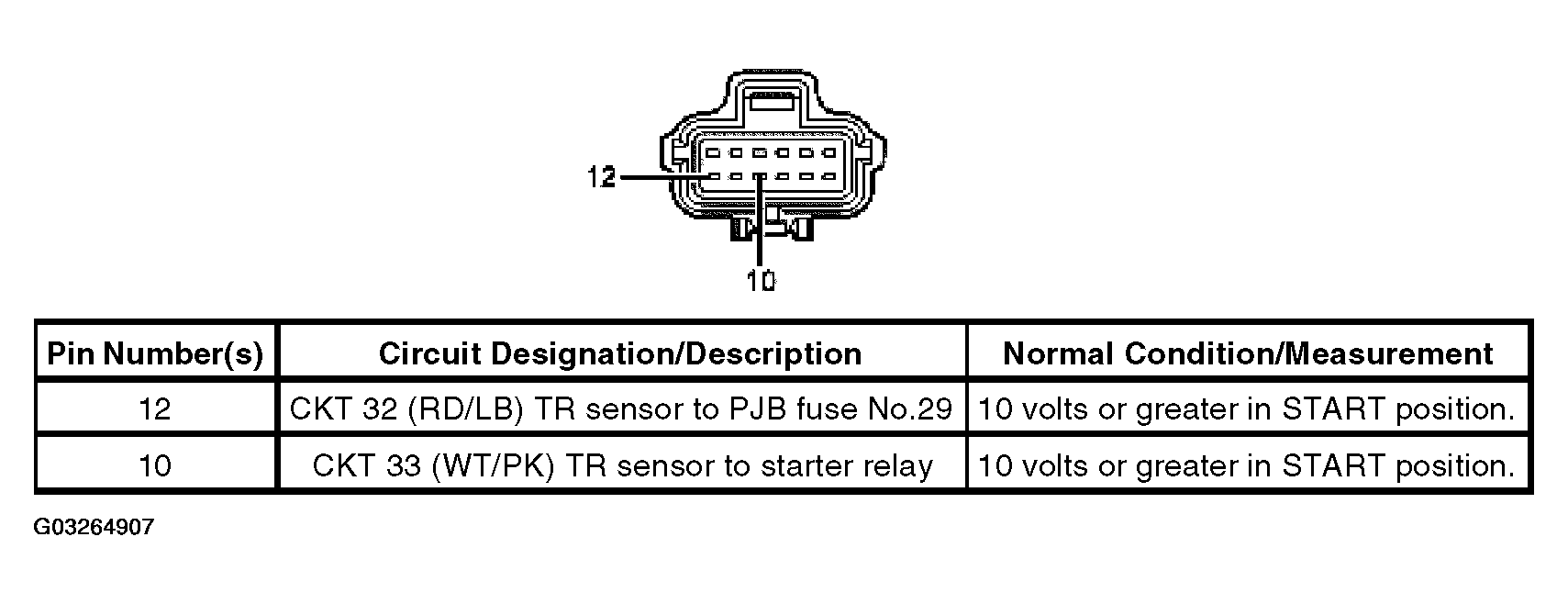

Fig 1: Identifying (TR) Sensor Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
