Positive Crankcase Ventilation (PCV) Valve: Notes

  1. Remove the engine cover.
  2. Remove the parts in the order indicated in the following illustration and table.

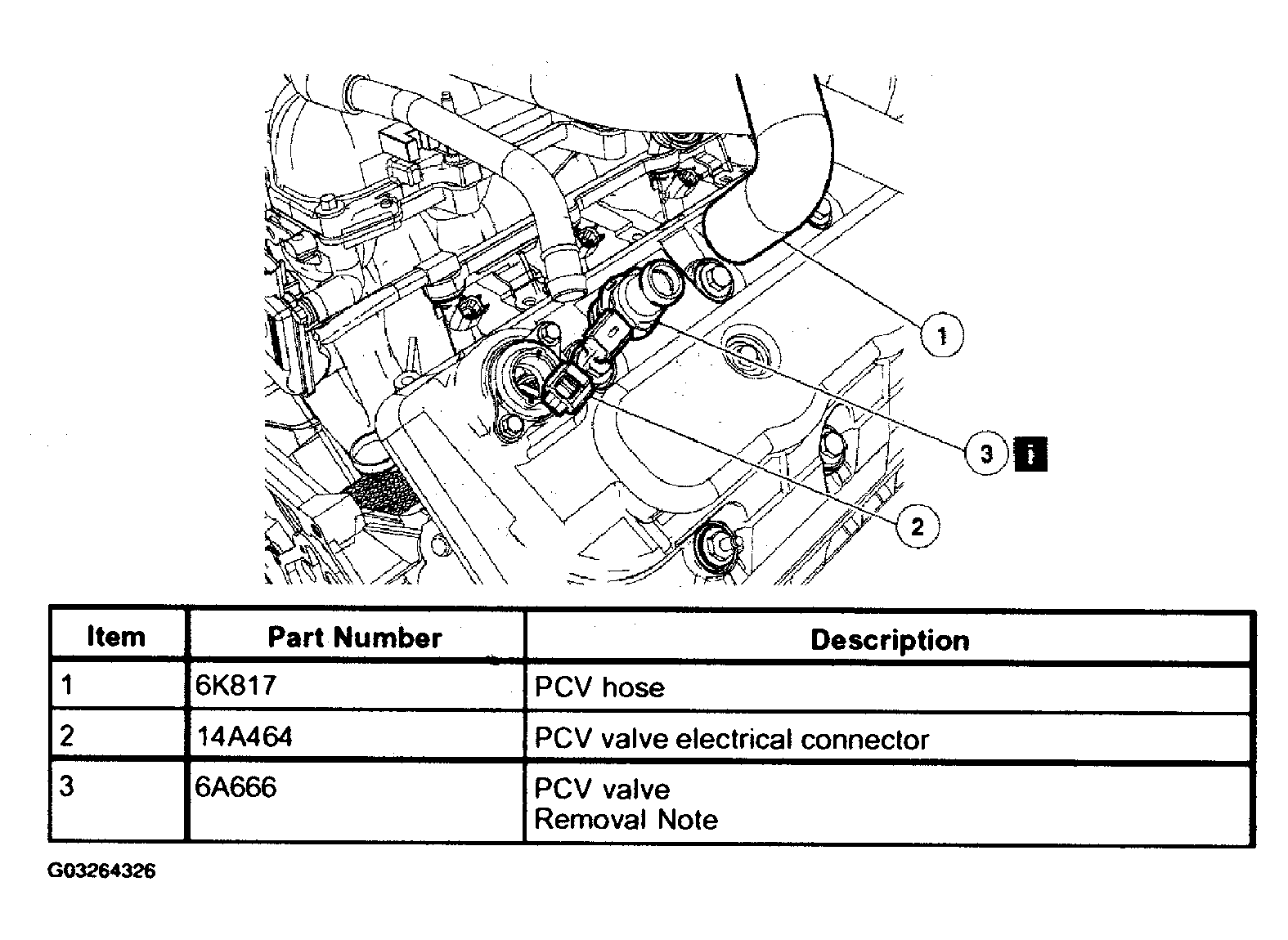

    Fig 1: Positive Crankcase Ventilation (PCV) Valve
    G03264326Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
