Pcm C175

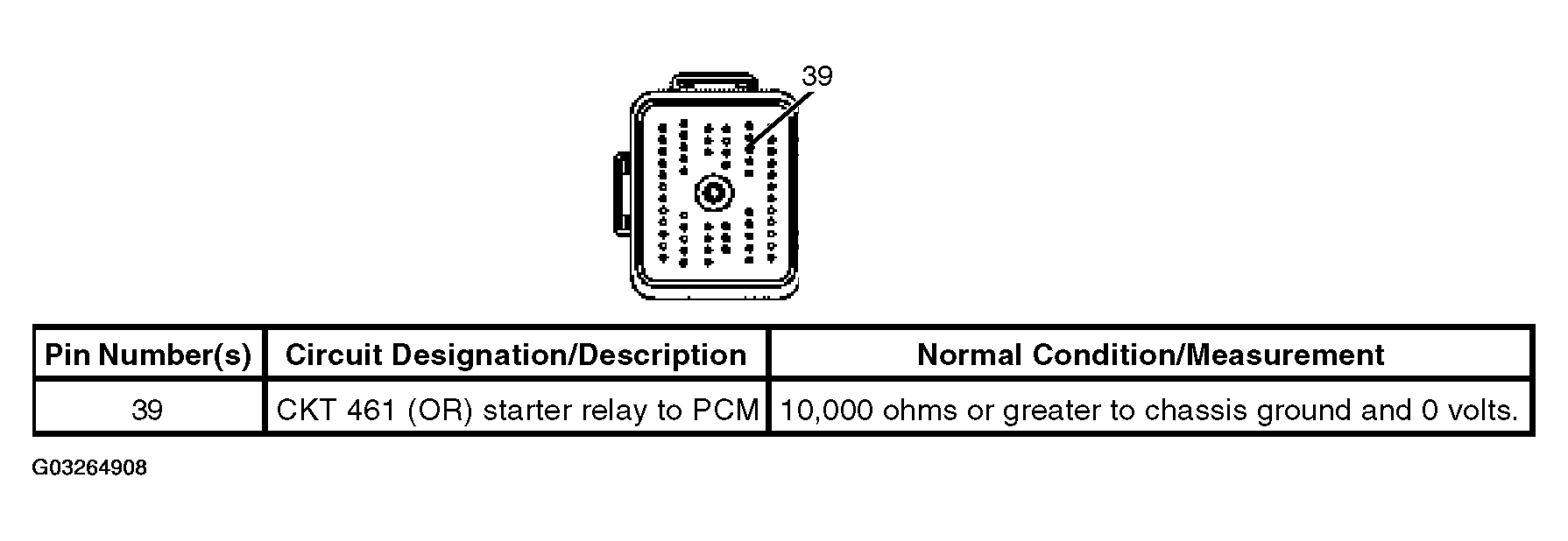

Fig 1: Identifying PCM C175 Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
