Ignition Coil-On-Plug and Spark Plug: Notes

MATERIALS

Item	Specification
Motorcraft Silicone Brake Caliper Grease and Dielectric Compound XG-3 or equivalent	ESE-M1C171-A
RTV Silicone Sealant F5TZ-19G204-AB	-

Disconnect the negative battery cable.
Remove the engine appearance cover.
Remove the air cleaner outlet tube. For additional information, refer to Air Cleaner Assembly .

Remove the parts in the order indicated in the following illustration and table.

TO REMOVE INDIVIDUAL PARTS, ONLY CARRY OUT THE LISTED STEPS:

IGNITION COIL-ON-PLUG AND SPARK PLUG REMOVAL STEPS

Part	Steps
Ignition coil	1-4
Spark plug	1-5

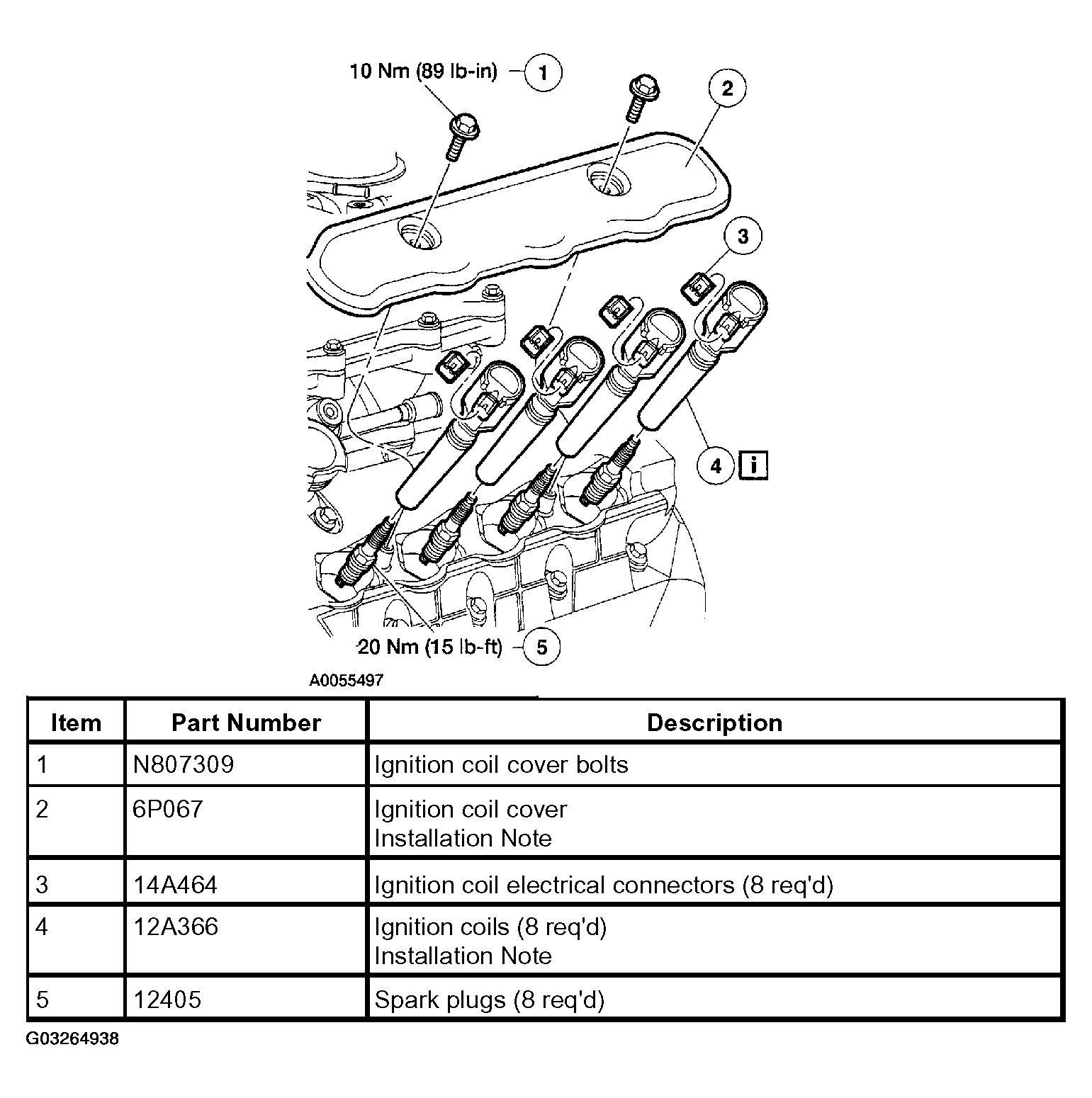

Fig 1: Removing Ignition Coil-On-Plug And Spark Plug

Courtesy of FORD MOTOR CO.
