Shock Absorber and Spring Assembly: Assembly

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a new shock absorber, spring or upper mount is installed, the new part should be marked in the same place as the old part to make sure the assembly is correctly aligned.

Inspect the lower and upper spring seats for damage.
Inspect the spring insulator for wear or damage. Install a new upper mount if necessary.

NOTE: If installing a new spring, make sure the part number is correct. Refer to the vehicle certification (VC) label for the correct spring code. Refer to IDENTIFICATION CODES to convert the spring code to a part number.

Inspect the spring for nicked or scratched paint. If the paint is nicked or scratched, install a new spring.
If removed, place the shock absorber into the vise.
Position the shock and spring compressor onto the strut.

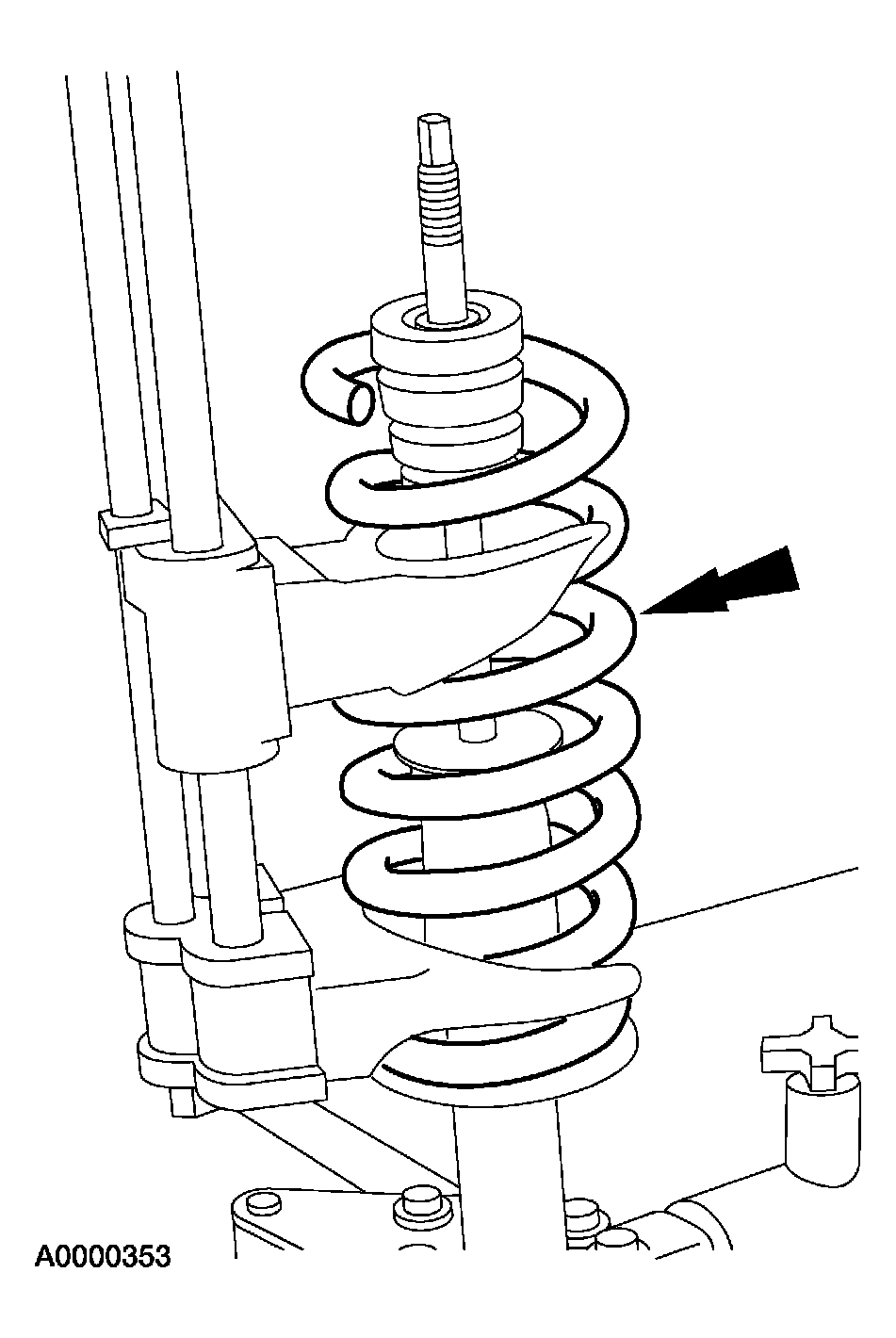

Fig 1: Removing/Installing Spring And Spring Compressor Installed On Strut
Courtesy of FORD MOTOR CO.
Position the upper mount and dust boot onto the spring. Make sure the marks made during disassembly, Step 2, are lined up.

Fig 2: Removing/Installing Upper Mount And Dust Boot Assembly
Courtesy of FORD MOTOR CO.
Install a new nut.

Fig 3: Installing Nut
Courtesy of FORD MOTOR CO.
Remove the spring compressor.
Install the shock absorber and spring assembly. For additional information, refer to SHOCK ABSORBER AND SPRING ASSEMBLY .
