Connector Reference and Terminal Readings
WARNING:
This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Anti-Lock Brake System (ABS) Connector C155 Terminals
Courtesy of FORD MOTOR CO.

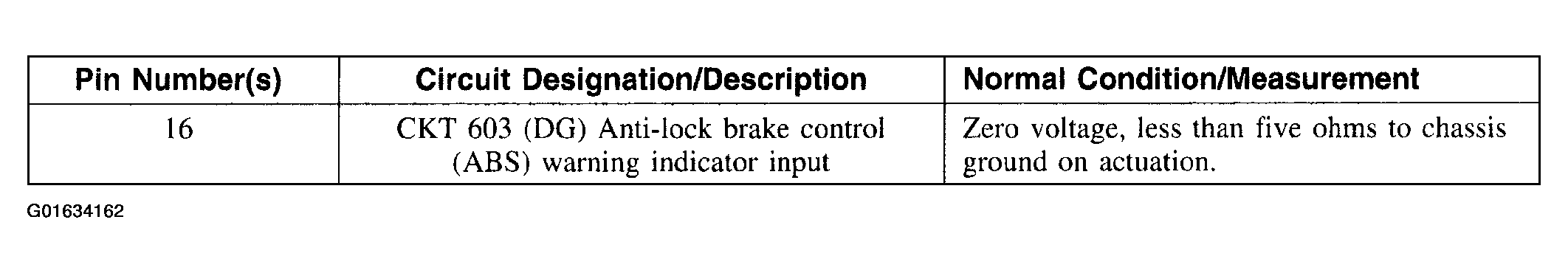

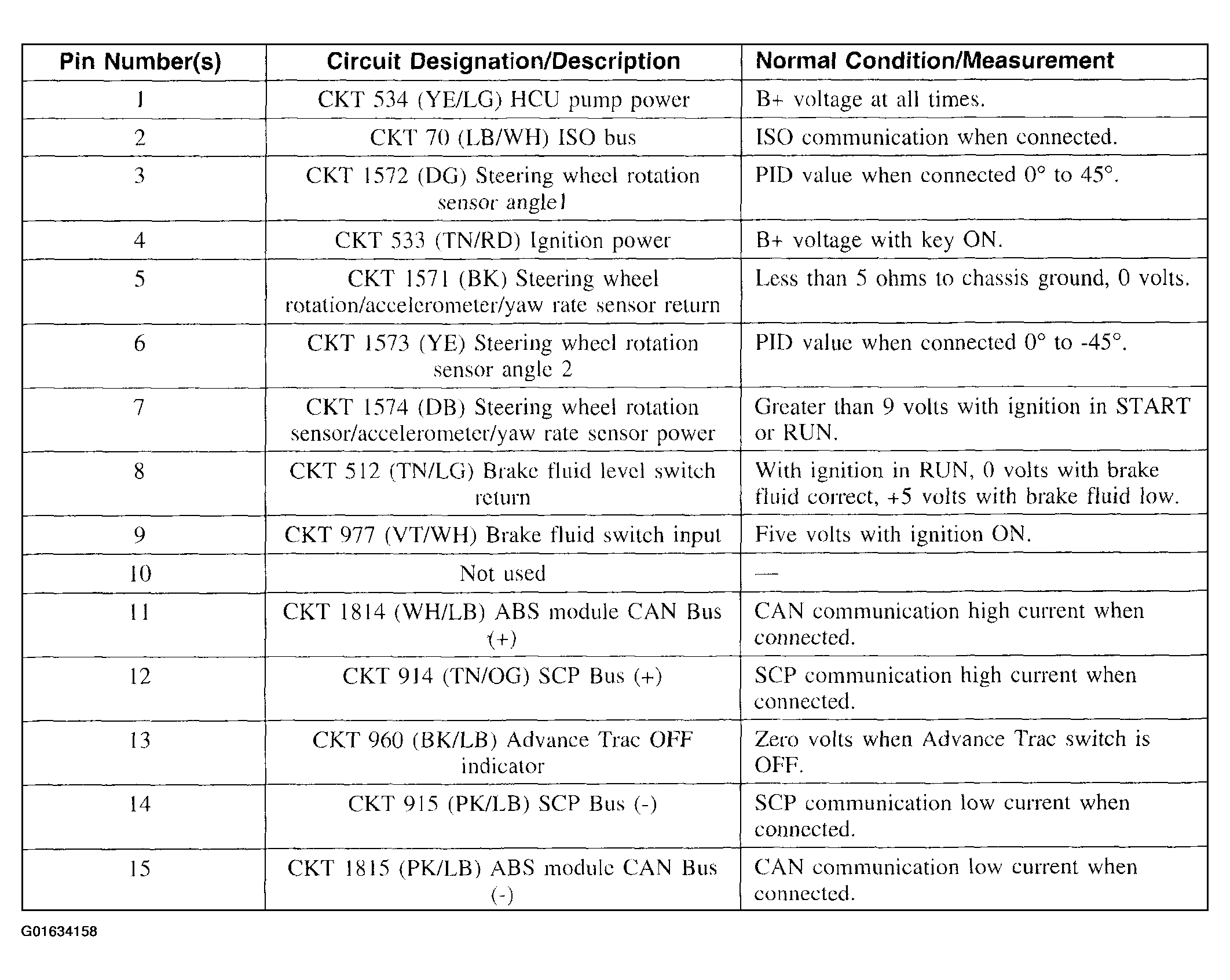

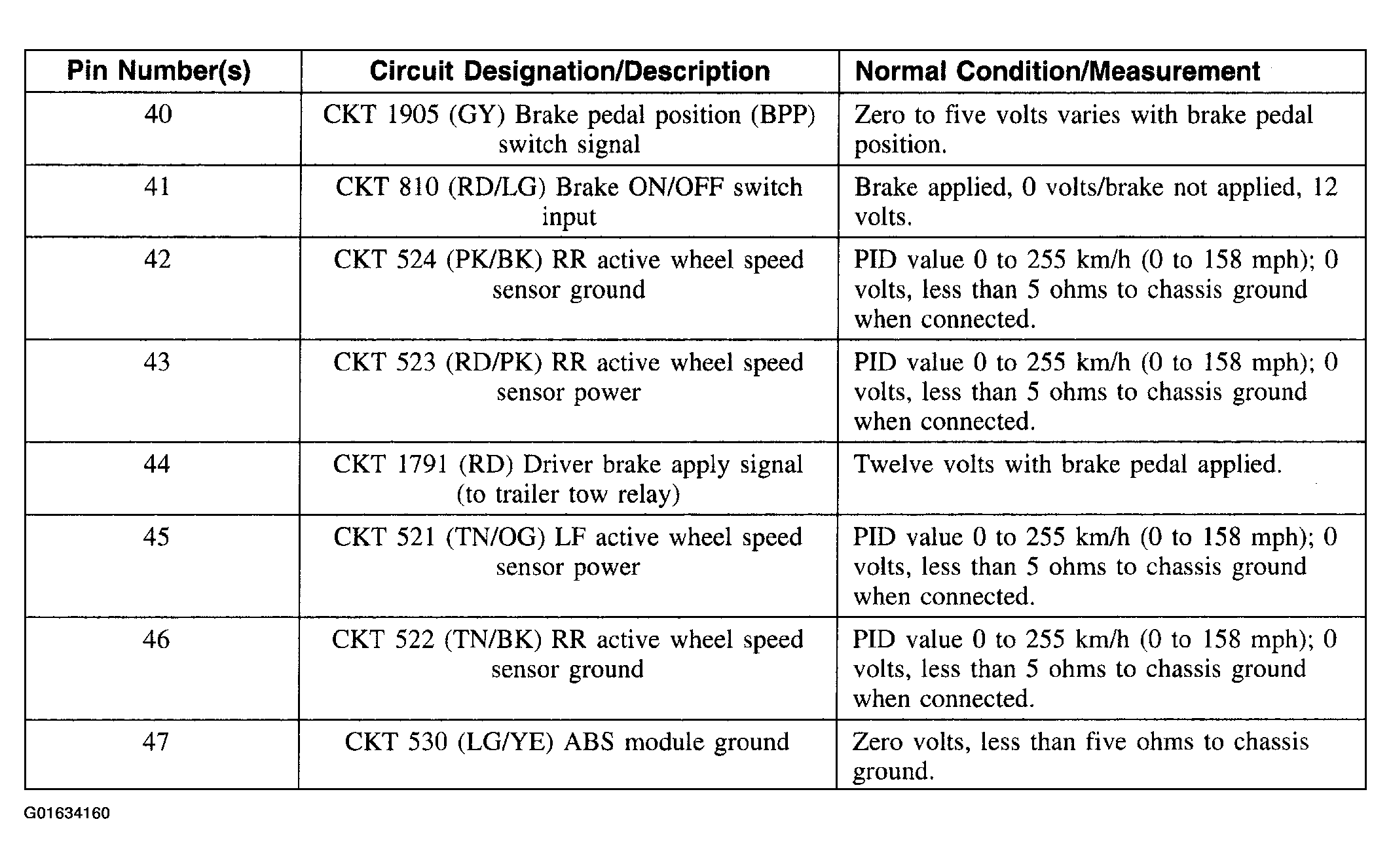

Fig 2: Connector C155 Reference & Terminal Readings (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Connector C155 Reference & Terminal Readings (2 Of 3)
Courtesy of FORD MOTOR CO.

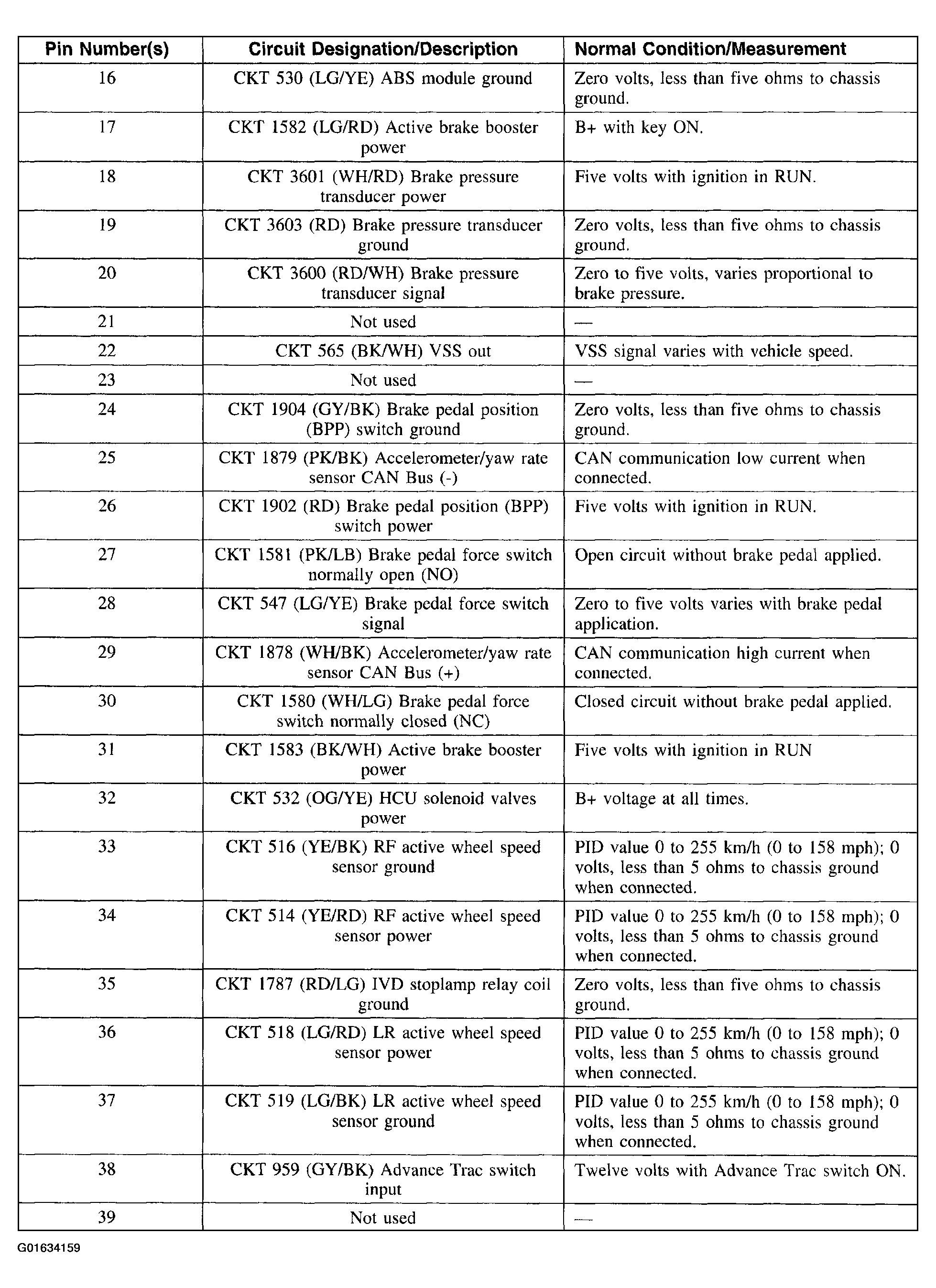

Fig 4: Connector C155 Reference & Terminal Readings (3 Of 3)
Courtesy of FORD MOTOR CO.
Fig 5: Identifying Instrument Cluster Connector C220A Terminals
Courtesy of FORD MOTOR CO.
Fig 6: Connector C220A Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 7: Identifying Accelerometer/Yaw Rate Sensor C3179 Terminals
Courtesy of FORD MOTOR CO.
Fig 8: Connector C3179 Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 9: Identifying Steering Wheel Rotation Sensor C226 Terminals
Courtesy of FORD MOTOR CO.

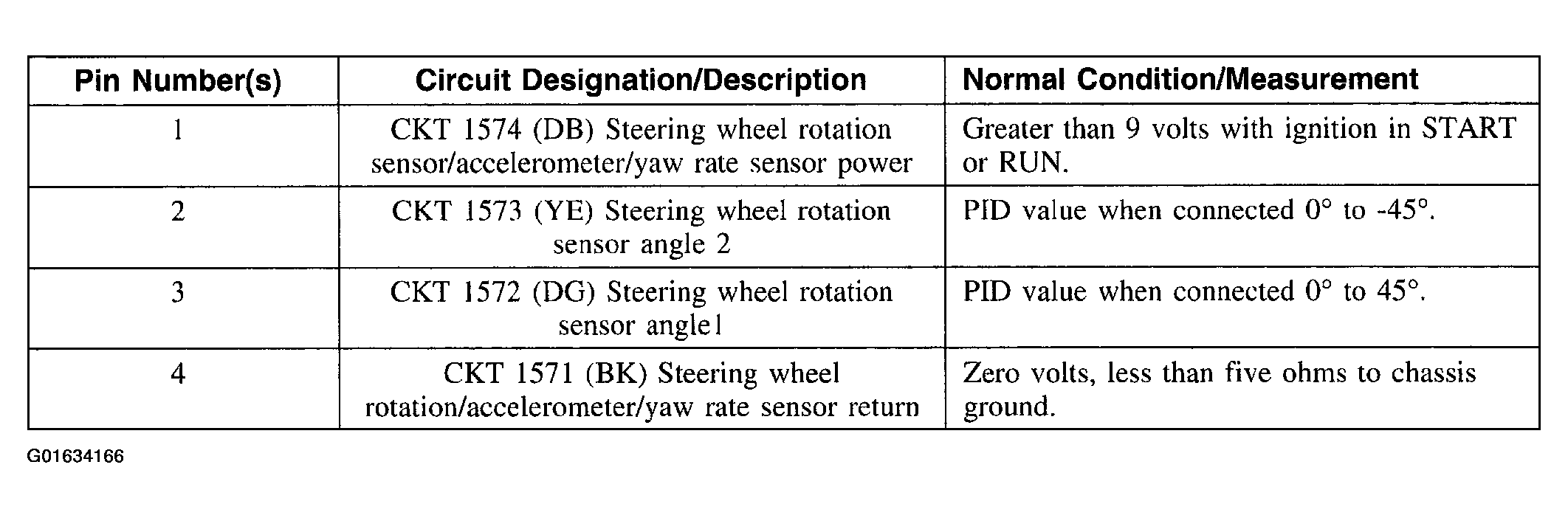

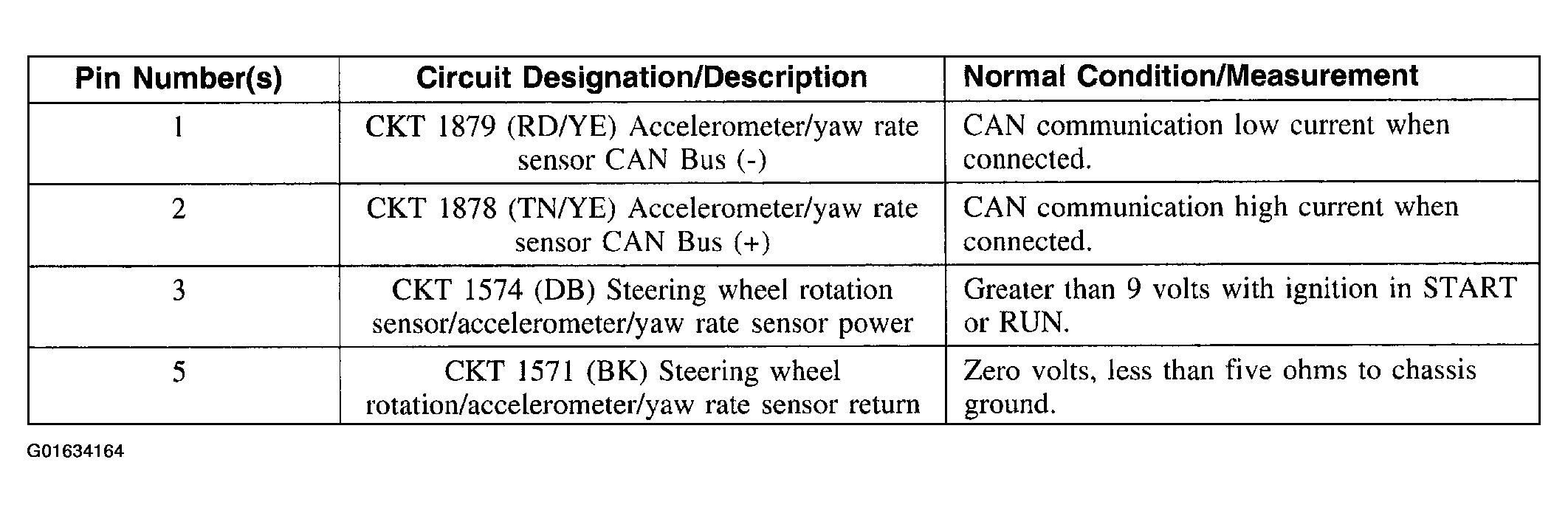

Fig 10: Connector C226 Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 11: Identifying Active Brake Booster C149 Terminals
Courtesy of FORD MOTOR CO.

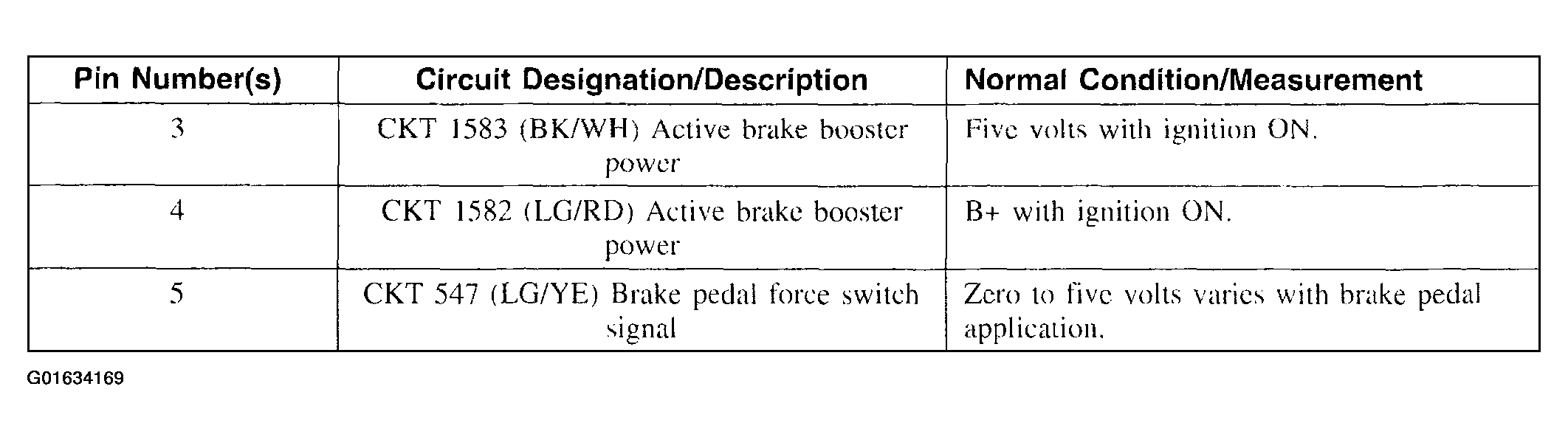

Fig 12: Connector C149 Reference & Terminal Readings (1 Of 2)
Courtesy of FORD MOTOR CO.

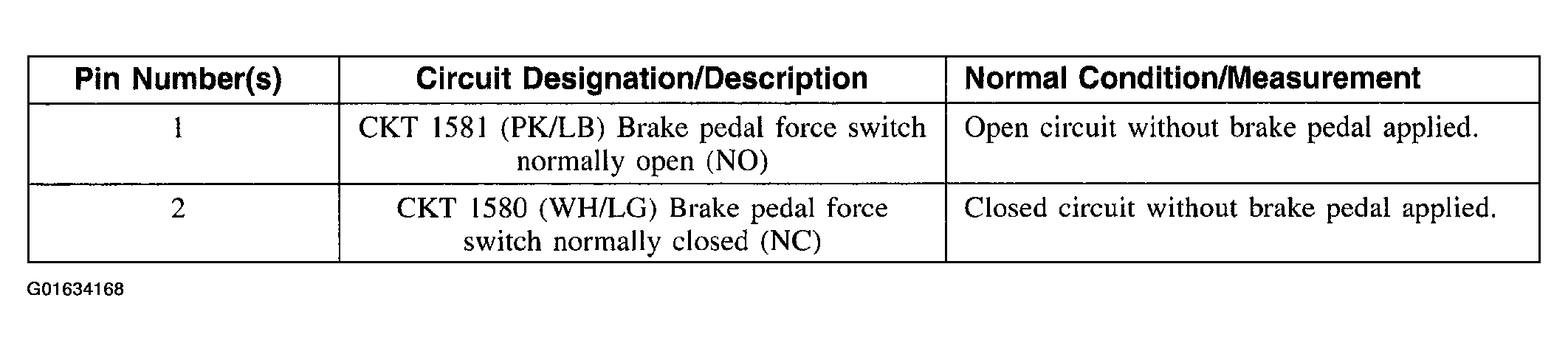

Fig 13: Connector C149 Reference & Terminal Readings (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 14: Identifying Brake Pressure Transducer C147 Terminals
Courtesy of FORD MOTOR CO.

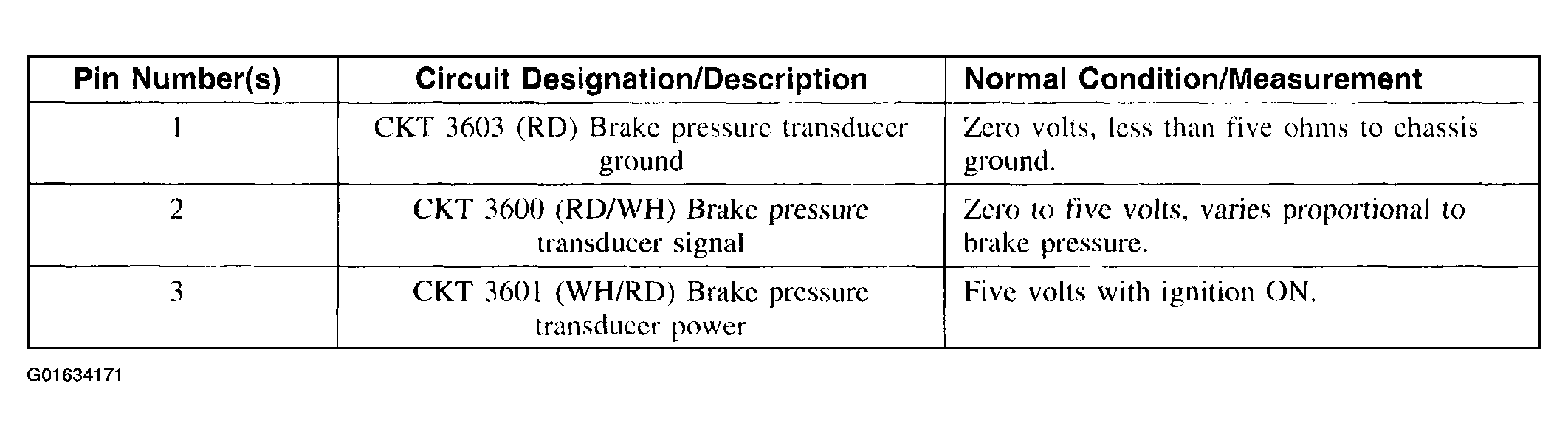

Fig 15: Connector C147Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 16: Identifying Advance Trac Switch C280 Terminals
Courtesy of FORD MOTOR CO.

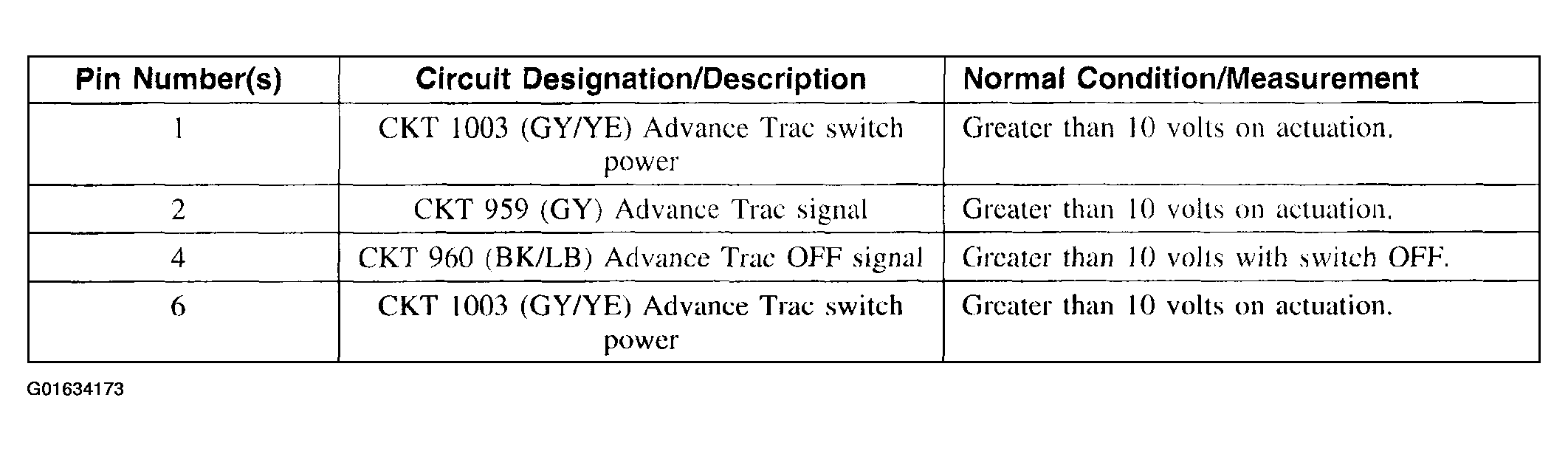

Fig 17: Connector C280 Reference & Terminal Readings (1 Of 2)
Courtesy of FORD MOTOR CO.

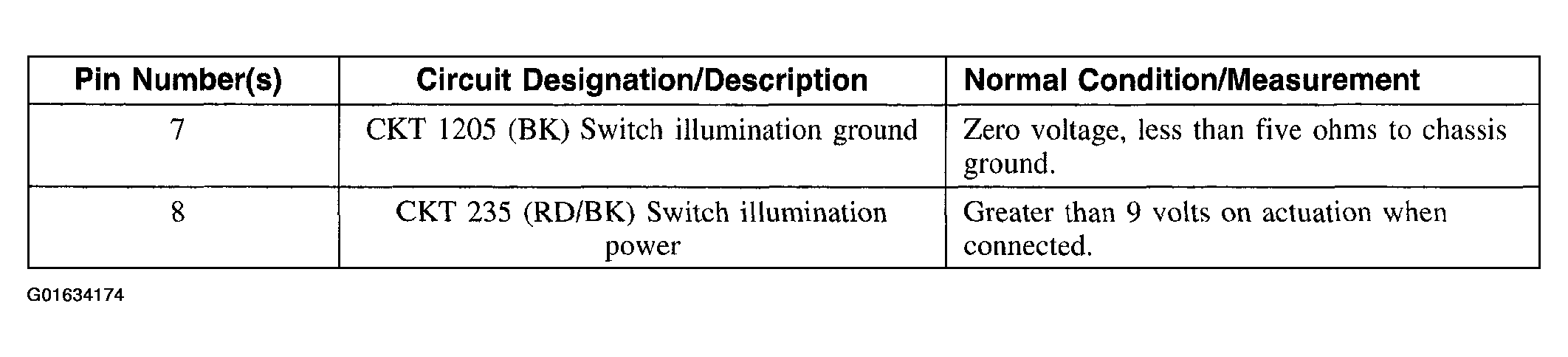

Fig 18: Connector C280 Reference & Terminal Readings (2 Of 2)
Courtesy of FORD MOTOR CO.

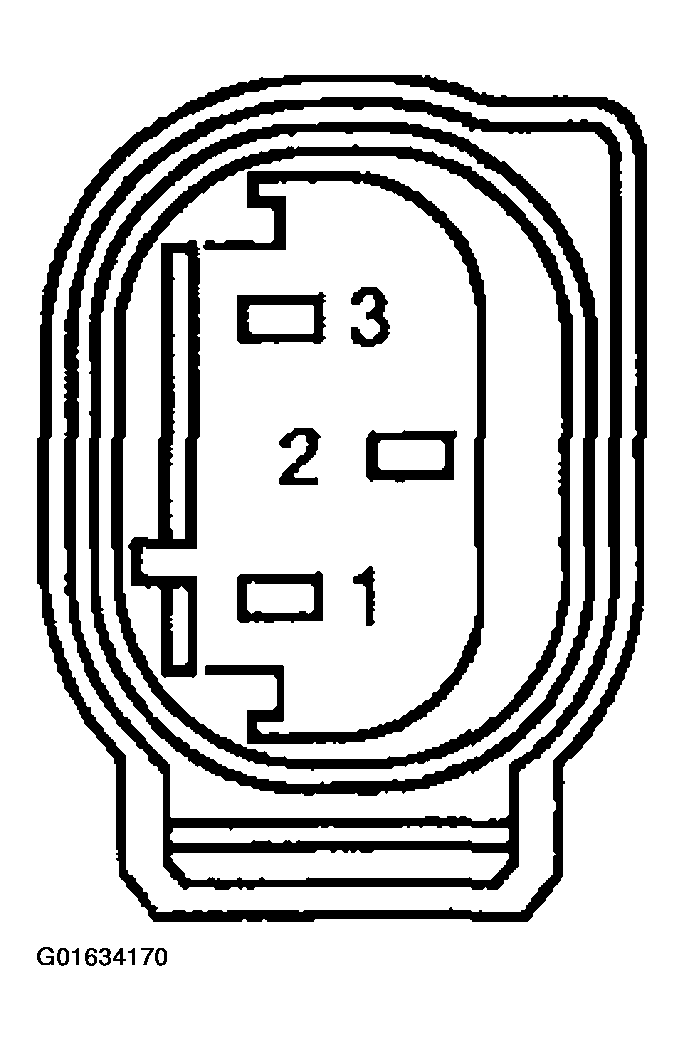

Fig 19: Identifying LF Wheel Speed Sensor C150 Terminals
Courtesy of FORD MOTOR CO.

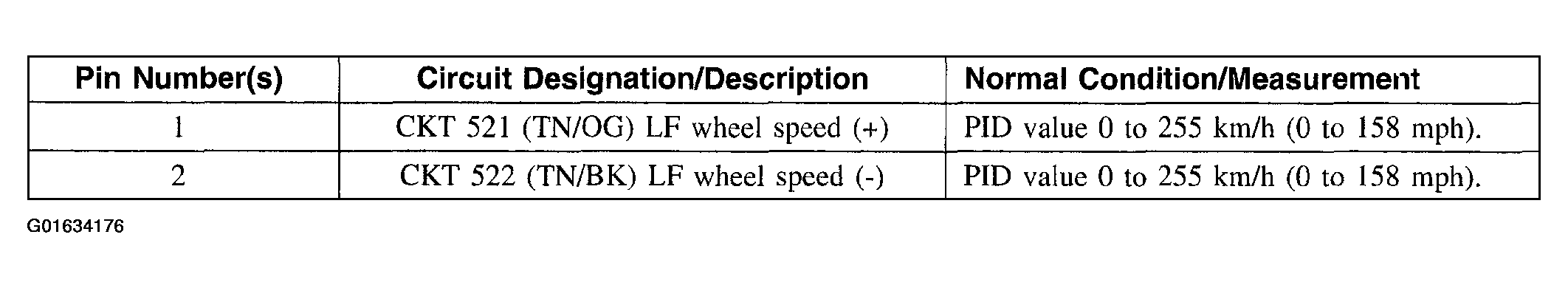

Fig 20: Connector C150 Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 21: Identifying RF Wheel Speed Sensor C160 Terminals
Courtesy of FORD MOTOR CO.
Fig 22: Connector C160 Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 23: Identifying LR Wheel Speed Sensor C440 (4-Channel ABS) Terminals
Courtesy of FORD MOTOR CO.

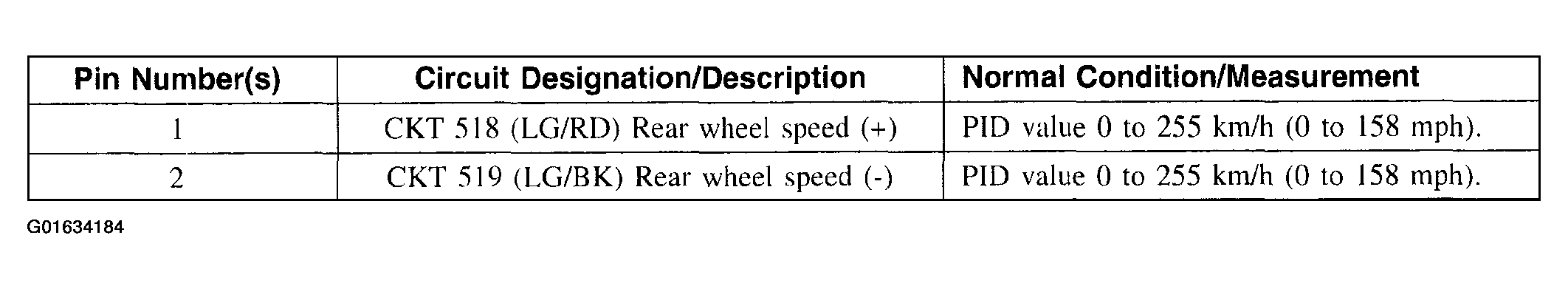

Fig 24: Connector C440 Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 25: Identifying RR Wheel Speed Sensor C426 (4-Channel ABS) Terminals
Courtesy of FORD MOTOR CO.

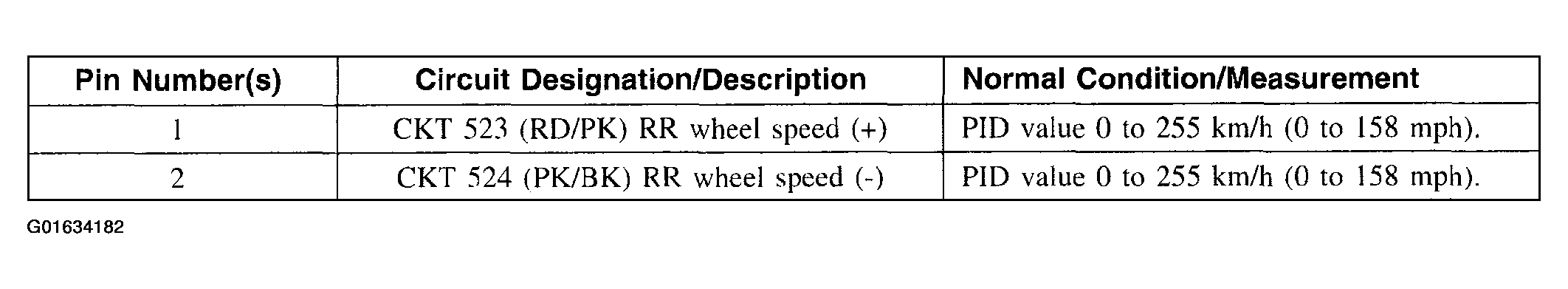

Fig 26: Connector C426 Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 27: Identifying Rear Differential Wheel Speed Sensor C455 (3-Channel ABS) Terminals
Courtesy of FORD MOTOR CO.
Fig 28: Connector C455 Reference & Terminal Readings
Courtesy of FORD MOTOR CO.
Fig 29: Identifying Brake Pressure Switch C1025 (ABS Only) Terminals
Courtesy of FORD MOTOR CO.

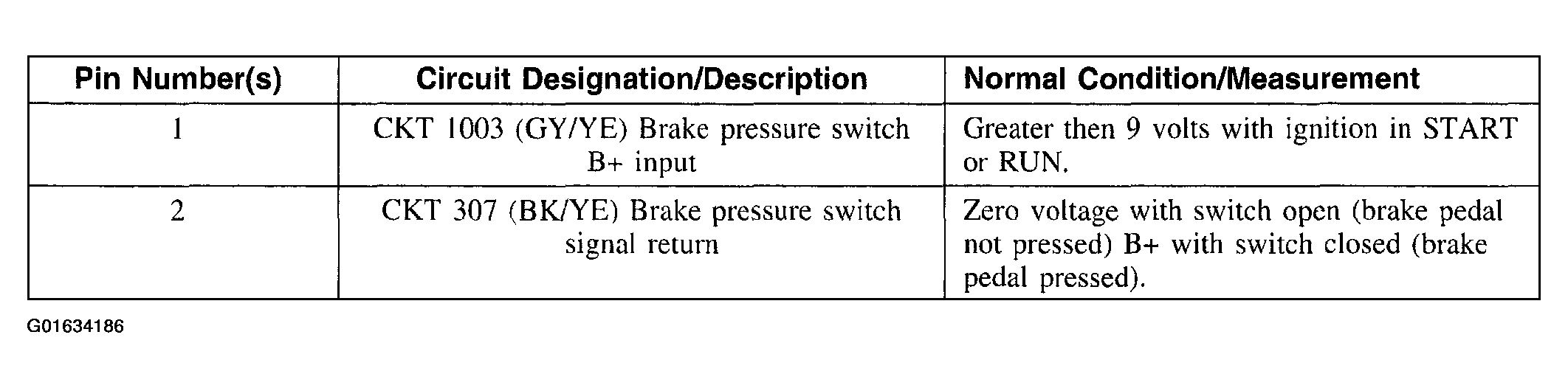

Fig 30: Connector C1025 Reference & Terminal Readings
