Connector Circuit Reference

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Cooling Fan Relay Connector Terminals
G01634665Courtesy of FORD MOTOR CO.

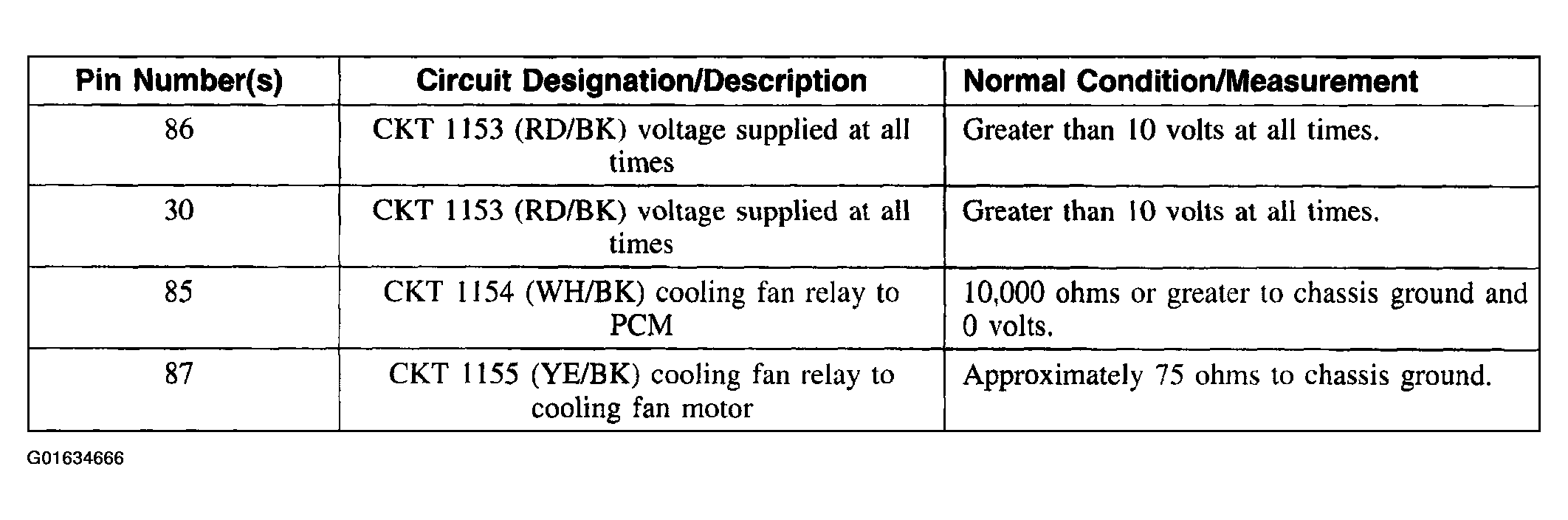

Fig 2: Cooling Fan Relay Connector Circuit Reference Table
G01634666Courtesy of FORD MOTOR CO.
Fig 3: Identifying PCM C175A Connector Terminals
G01634667Courtesy of FORD MOTOR CO.
Fig 4: PCM C175A Connector Terminals Reference Tables
G01634668Courtesy of FORD MOTOR CO.
Fig 5: Identifying Cooling Fan Motor Connector Terminals
G01634669Courtesy of FORD MOTOR CO.

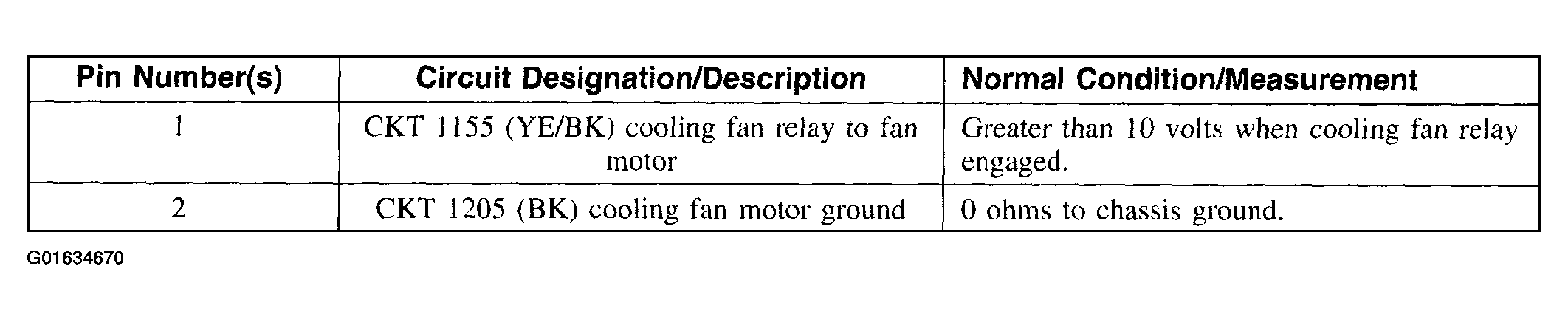

Fig 6: Cooling Fan Motor Connector Terminals Reference Tables
G01634670Courtesy of FORD MOTOR CO.
