Connector Circuit Reference

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Clockspring C218a Connector Terminals And Specification (1 Of 2)
G01637373Courtesy of FORD MOTOR CO.

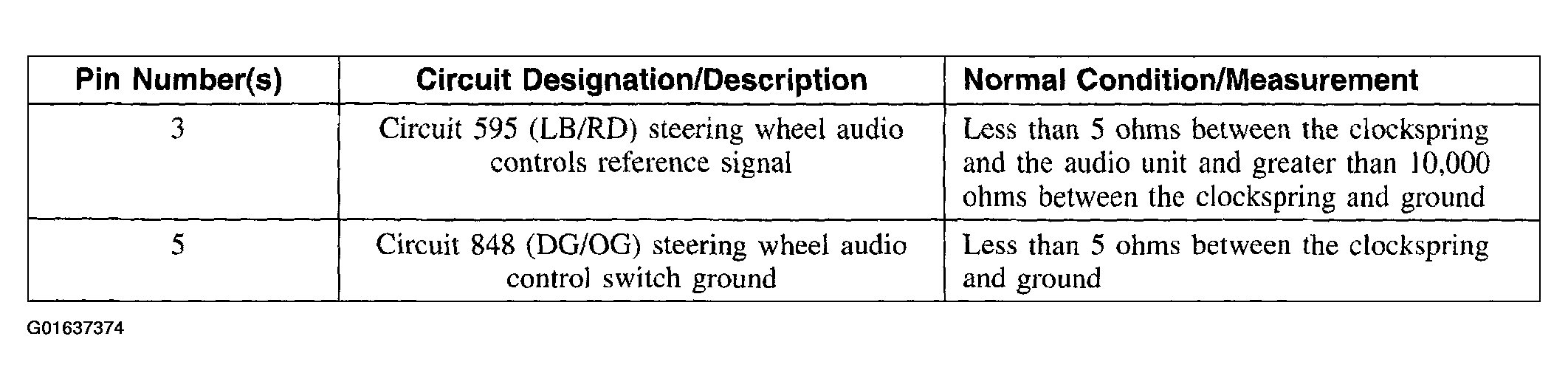

Fig 2: Identifying Clockspring C218a Connector Terminals And Specification (2 Of 2)
G01637374Courtesy of FORD MOTOR CO.
Fig 3: Identifying Audio Unit CDX6 C240a Connector Terminals And Specification (1 Of 3)
G01637375Courtesy of FORD MOTOR CO.

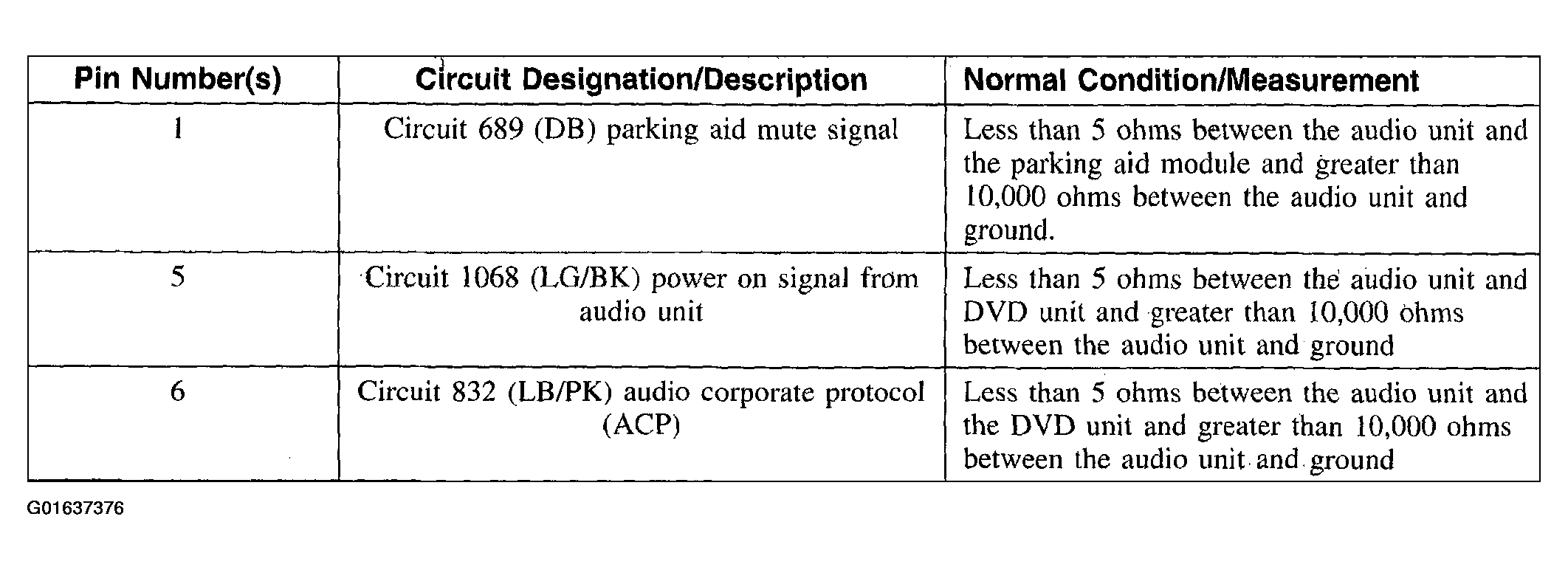

Fig 4: Identifying Audio Unit CDX6 C240a Connector Terminals And Specification (2 Of 3)
G01637376Courtesy of FORD MOTOR CO.

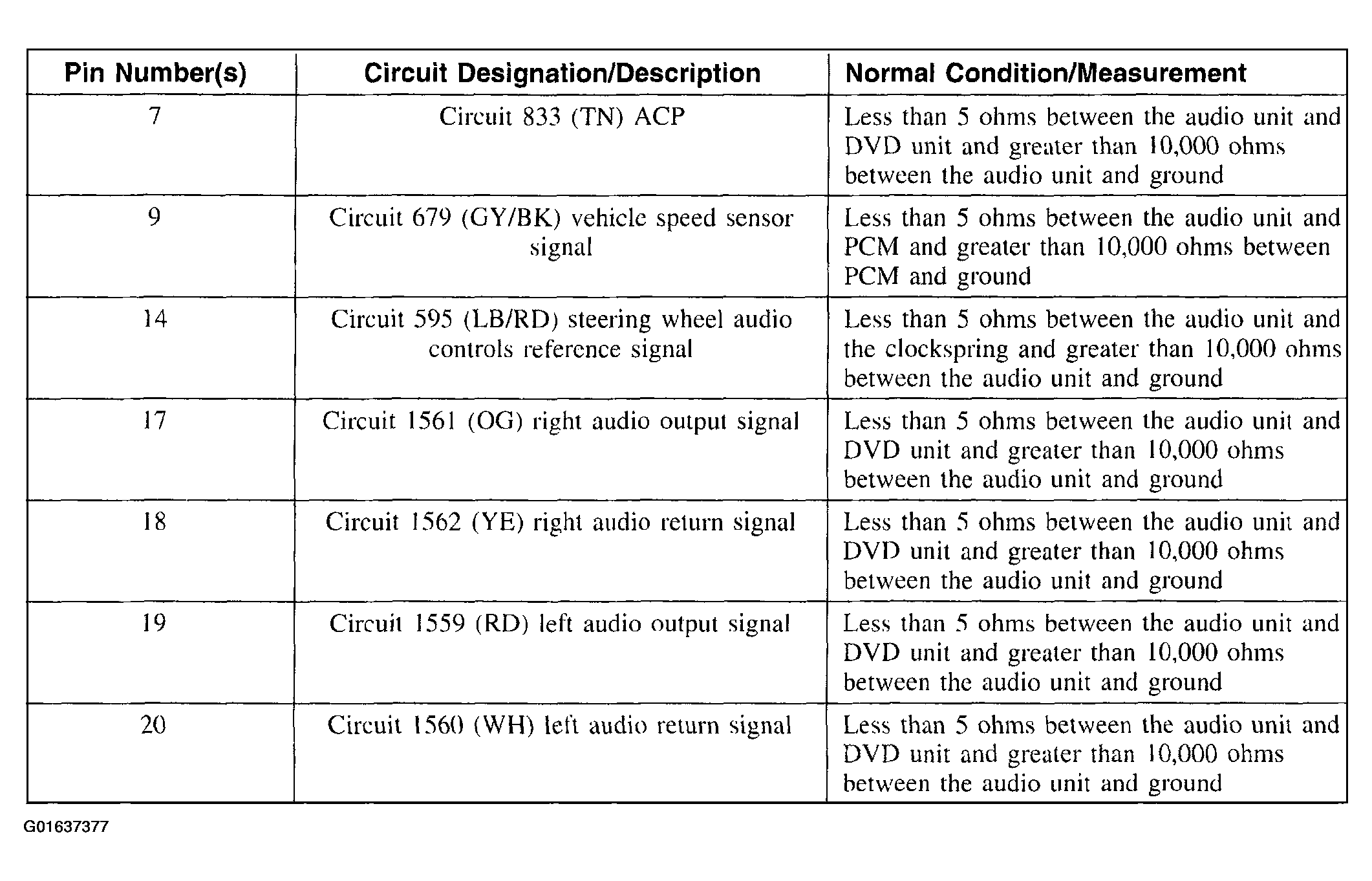

Fig 5: Identifying Audio Unit CDX6 C240a Connector Terminals And Specification (3 Of 3)
G01637377Courtesy of FORD MOTOR CO.
Fig 6: Identifying Audio Unit CDX6 C240b Connector Terminals And Specification (1 Of 3)
G01637378Courtesy of FORD MOTOR CO.

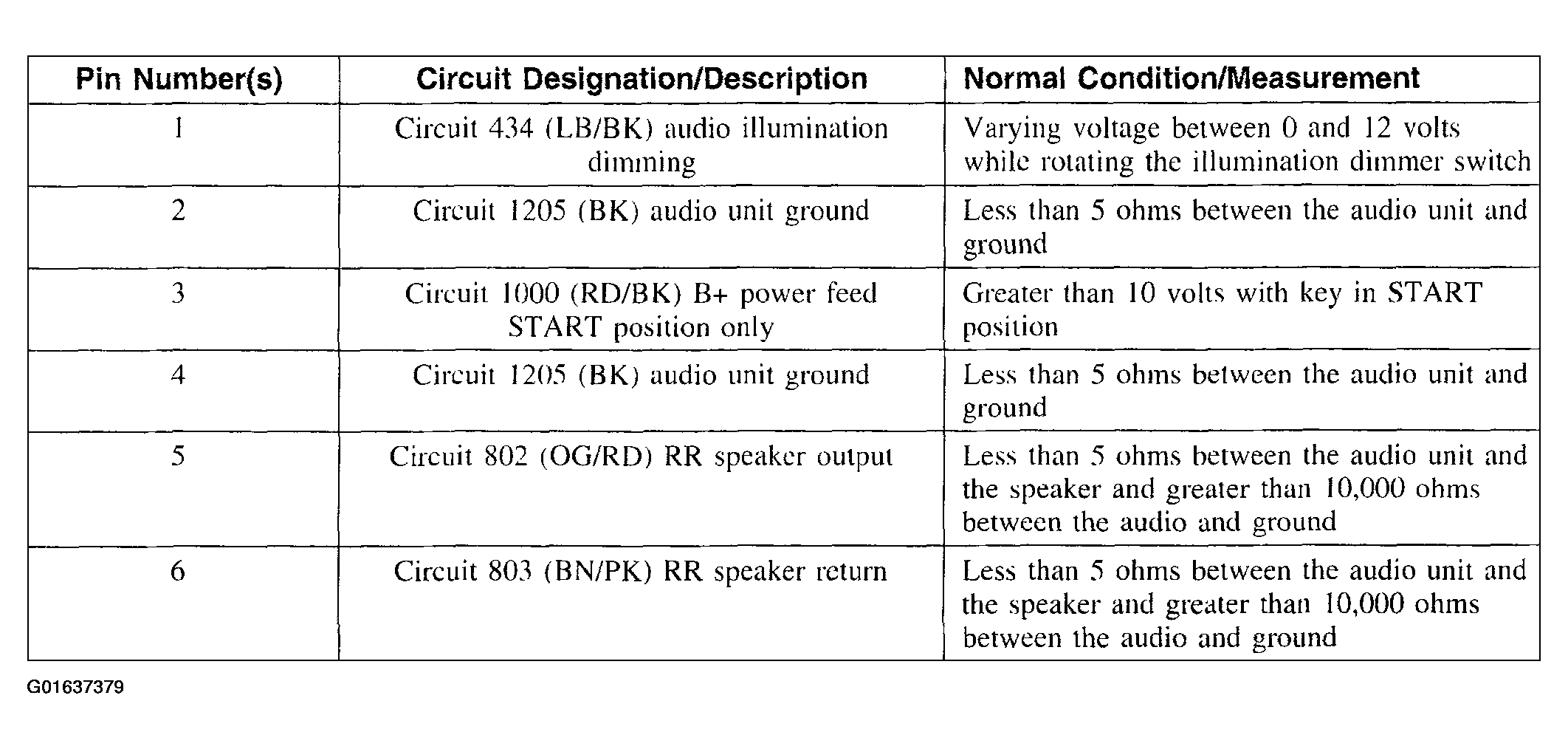

Fig 7: Identifying Audio Unit CDX6 C240b Connector Terminals And Specification (2 Of 3)
G01637379Courtesy of FORD MOTOR CO.

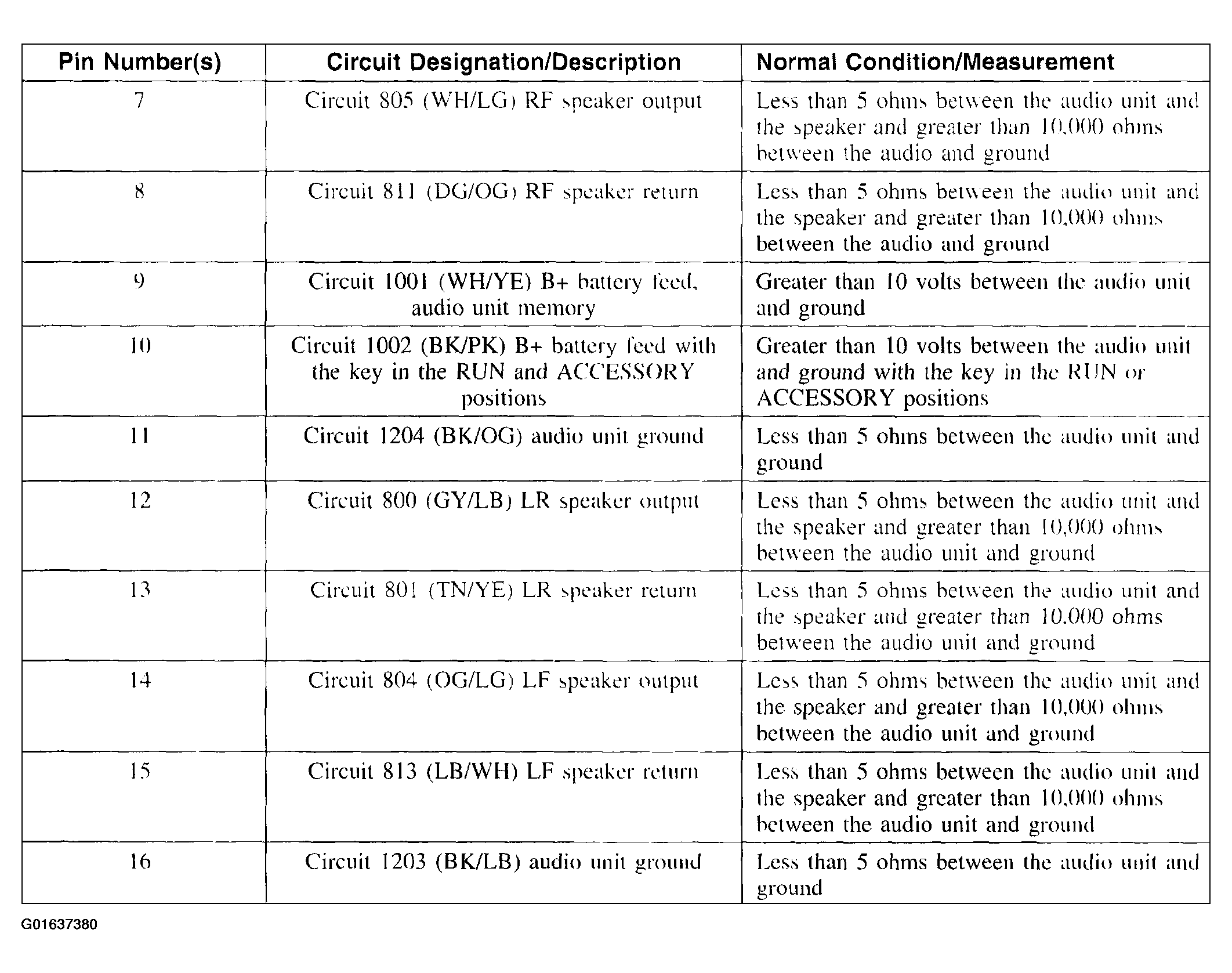

Fig 8: Identifying Audio Unit CDX6 C240b Connector Terminals And Specification (3 Of 3)
G01637380Courtesy of FORD MOTOR CO.
Fig 9: Identifying Audio Unit CDX6 C240c Connector Terminals And Specification (1 Of 2)
G01637381Courtesy of FORD MOTOR CO.

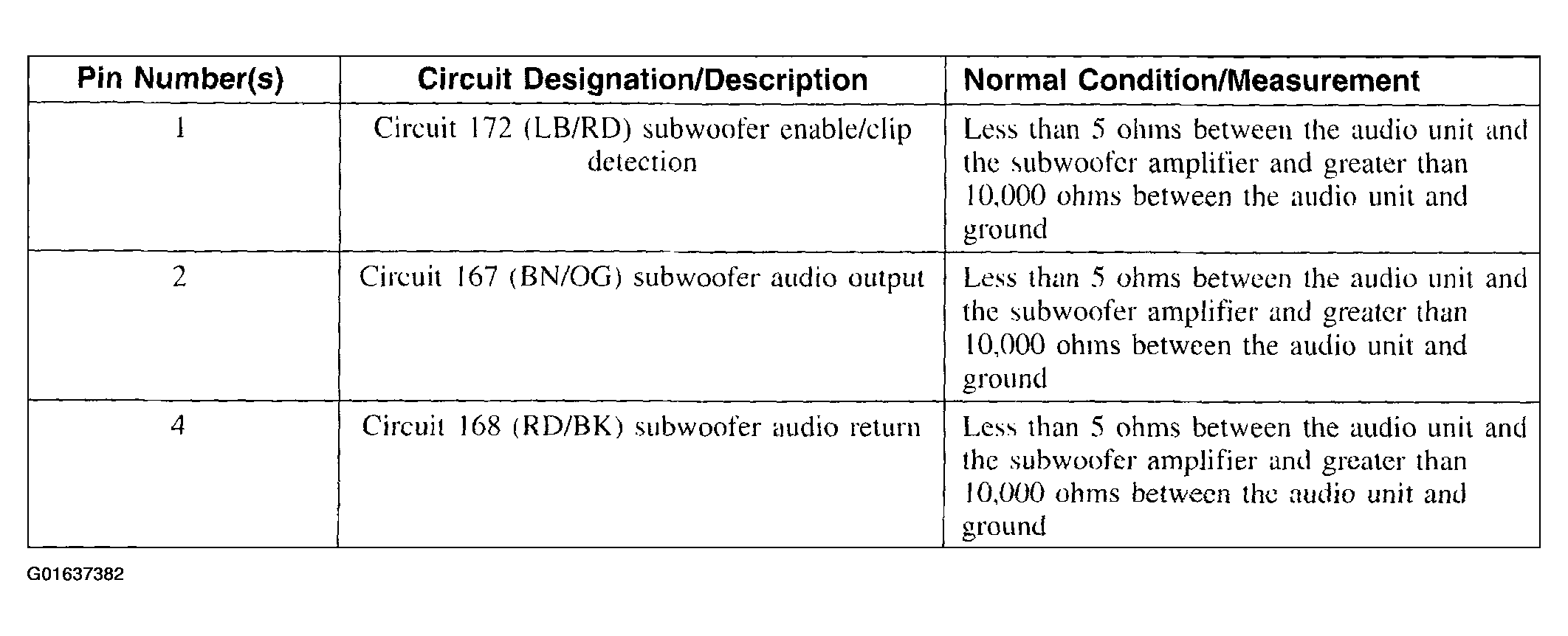

Fig 10: Identifying Audio Unit CDX6 C240c Connector Terminals And Specification (2 Of 2)
G01637382Courtesy of FORD MOTOR CO.
Fig 11: Identifying Audio Unit DM100i C290a Connector Terminals And Specification (1 Of 3)
G01637383Courtesy of FORD MOTOR CO.

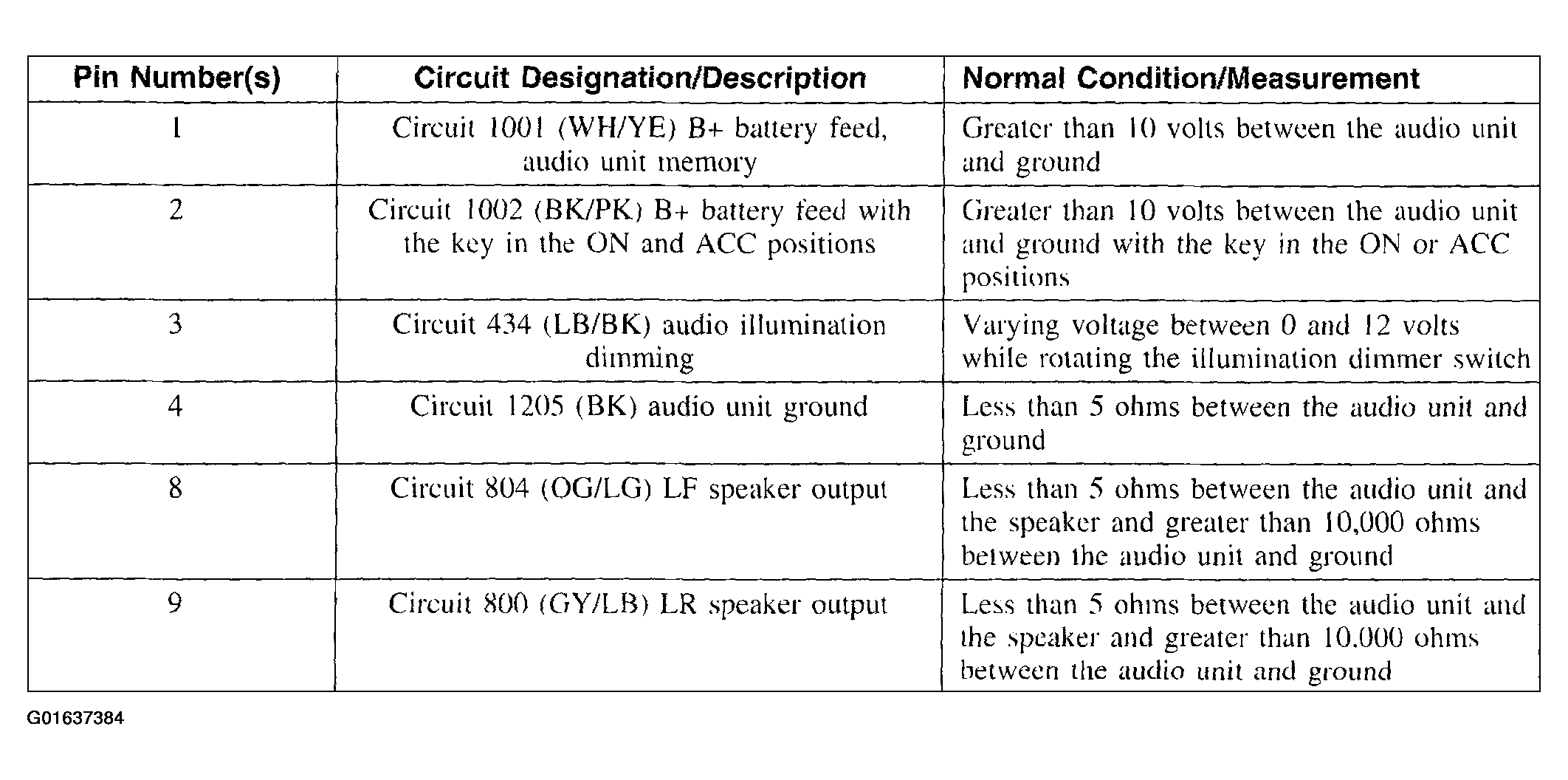

Fig 12: Identifying Audio Unit DM100i C290a Connector Terminals And Specification (2 Of 3)
G01637384Courtesy of FORD MOTOR CO.

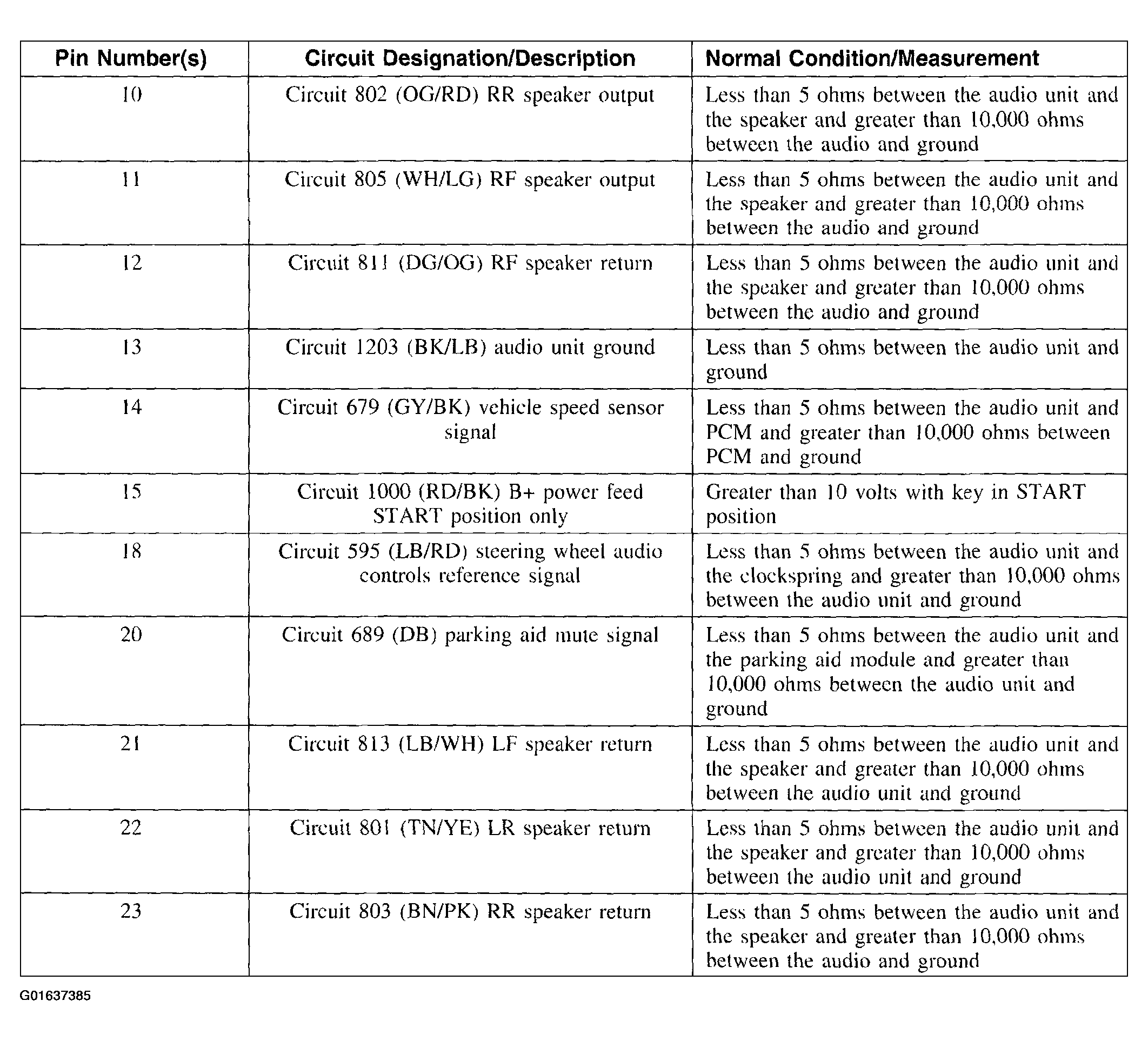

Fig 13: Identifying Audio Unit DM100i C290a Connector Terminals And Specification (3 Of 3)
G01637385Courtesy of FORD MOTOR CO.
Fig 14: Identifying Audio Unit DM100i C290b Connector Terminals And Specification (1 Of 2)
G01637386Courtesy of FORD MOTOR CO.

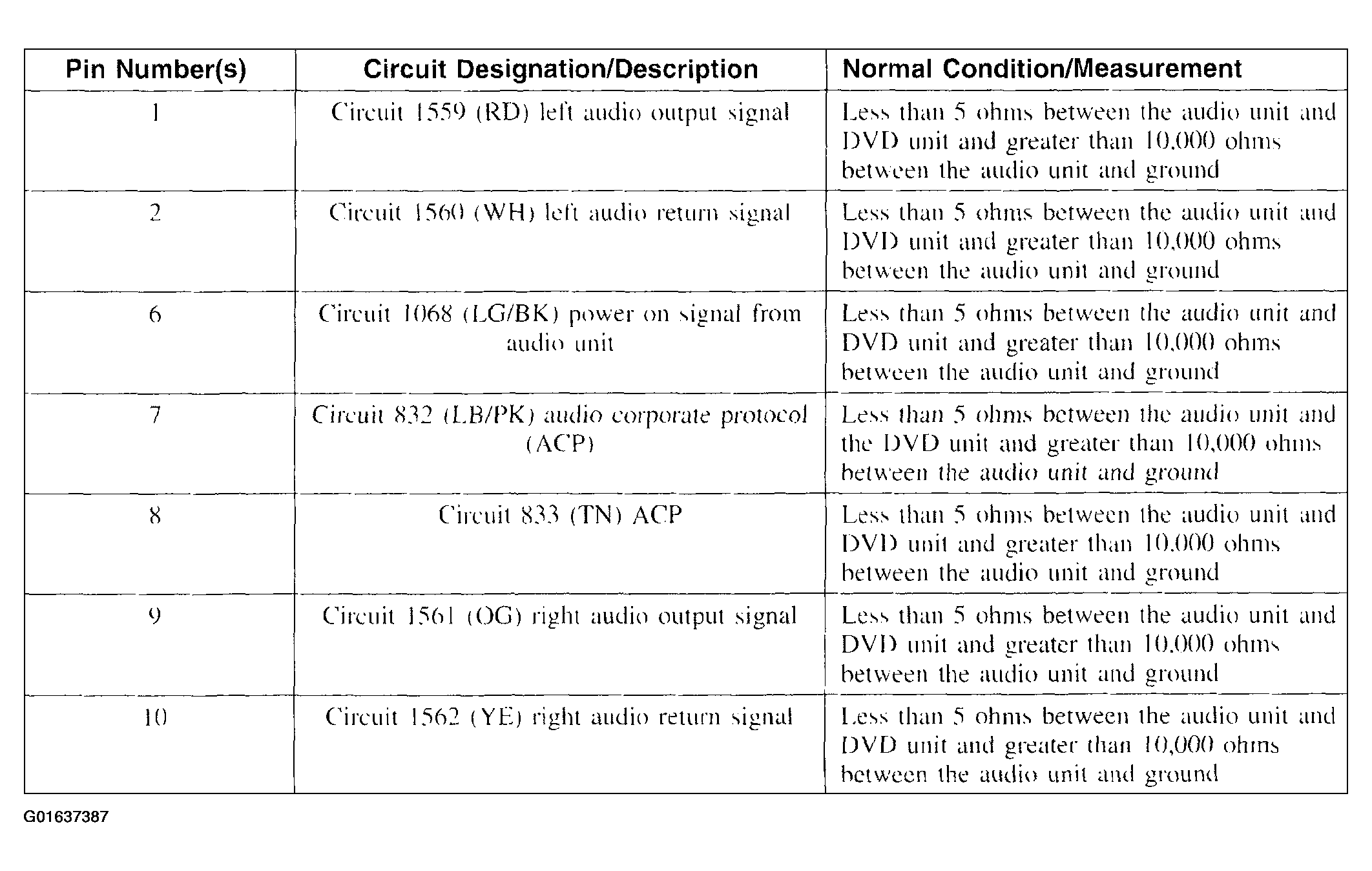

Fig 15: Identifying Audio Unit DM100i C290b Connector Terminals And Specification (2 Of 2)
G01637387Courtesy of FORD MOTOR CO.
Fig 16: Identifying Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR) Connector Terminals And Specification (1 Of 3)
G01637388Courtesy of FORD MOTOR CO.

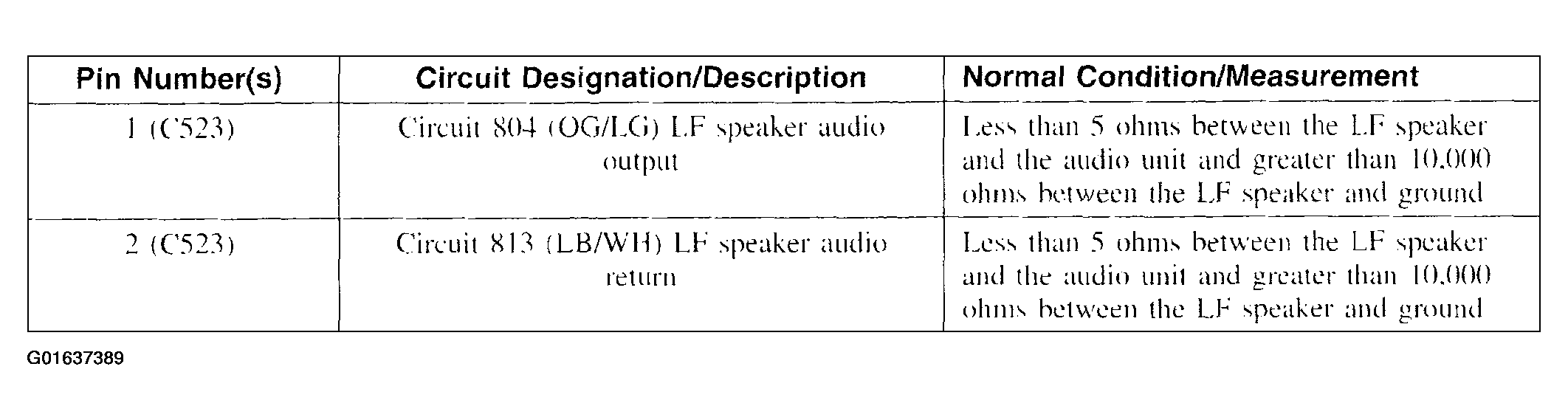

Fig 17: Identifying Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR) Connector Terminals And Specification (2 Of 3)
G01637389Courtesy of FORD MOTOR CO.

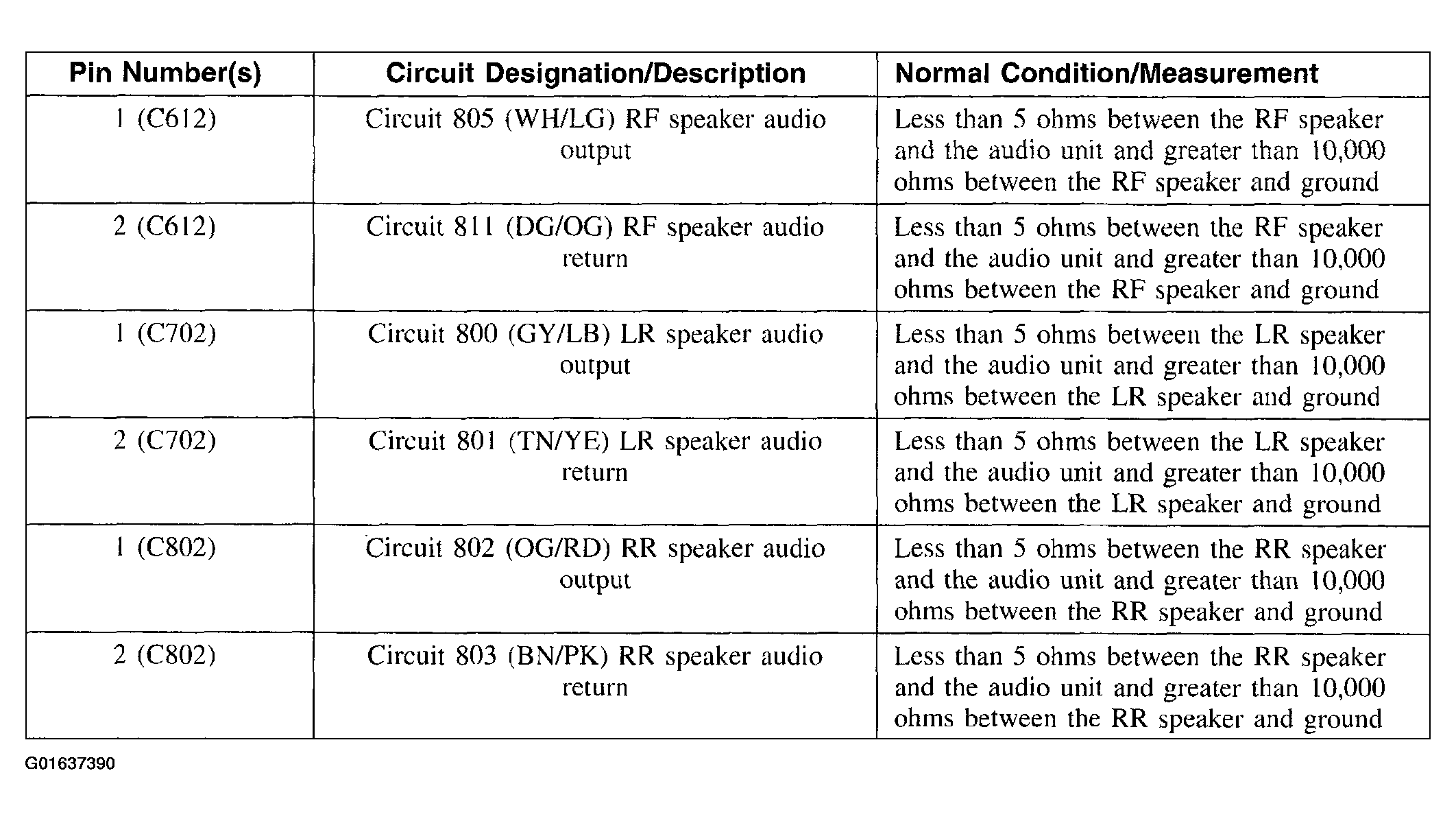

Fig 18: Identifying Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR) Connector Terminals And Specification (3 Of 3)
G01637390Courtesy of FORD MOTOR CO.
Fig 19: Identifying DVD C949 Connector Terminals And Specification (1 Of 3)
G01637391Courtesy of FORD MOTOR CO.

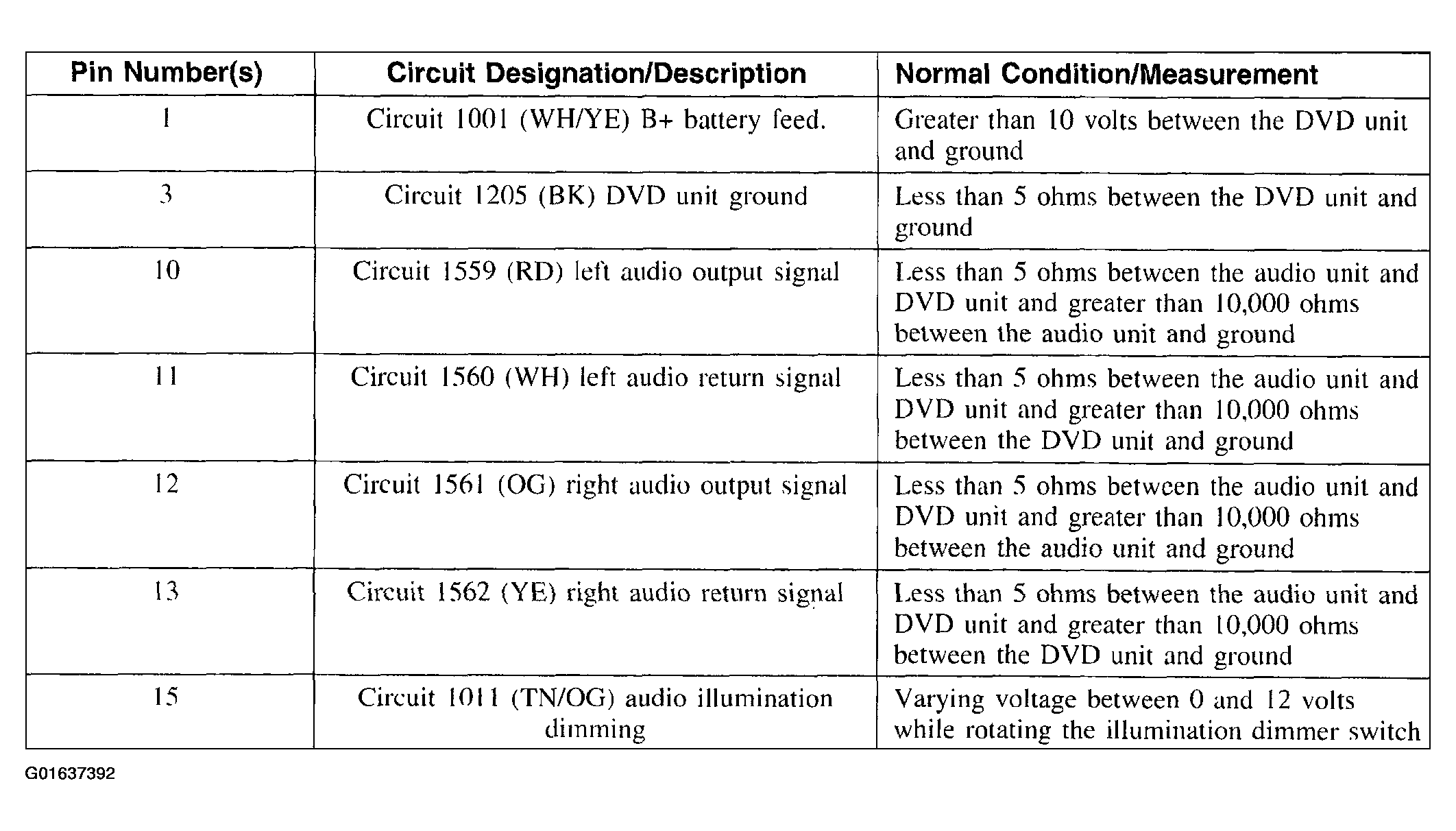

Fig 20: Identifying DVD C949 Connector Terminals And Specification (2 Of 3)
G01637392Courtesy of FORD MOTOR CO.

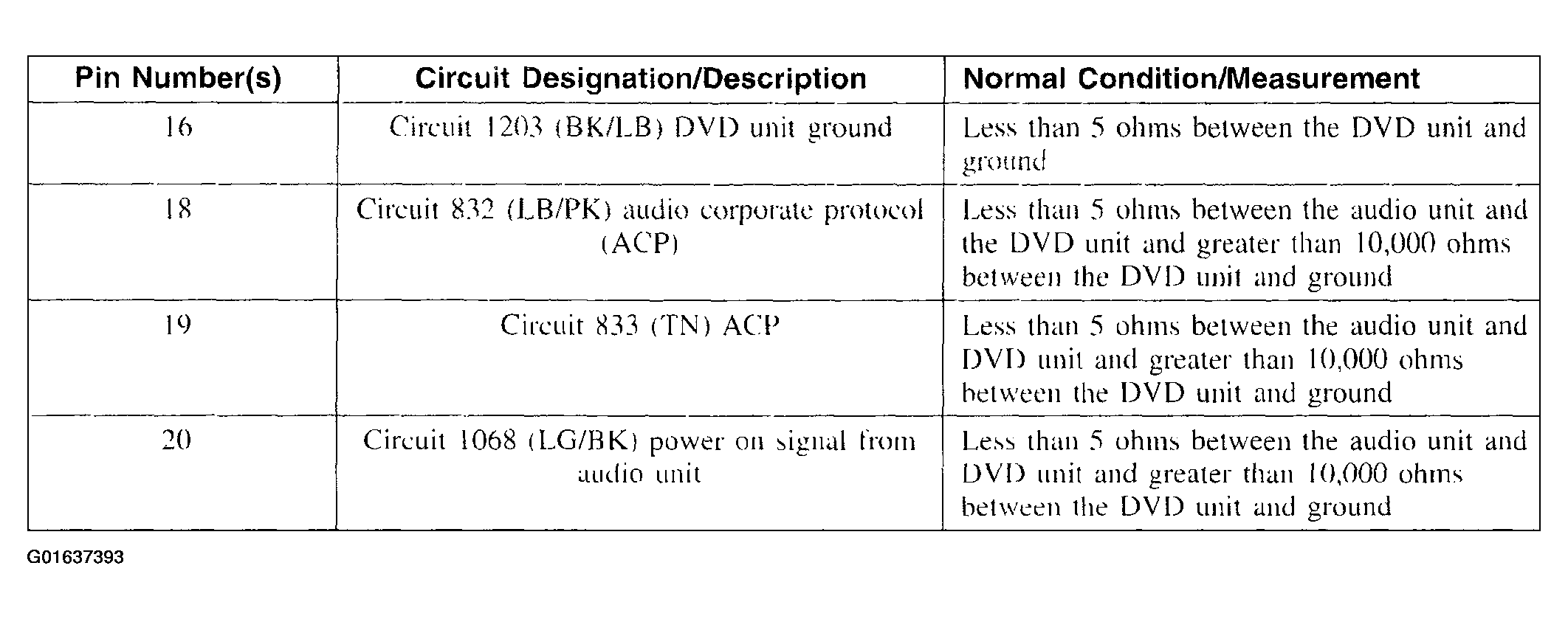

Fig 21: Identifying DVD C949 Connector Terminals And Specification (3 Of 3)
G01637393Courtesy of FORD MOTOR CO.
Fig 22: Identifying Audio Unit VNR C2253b Connector Terminals And Specification (1 Of 3)
G01637394Courtesy of FORD MOTOR CO.

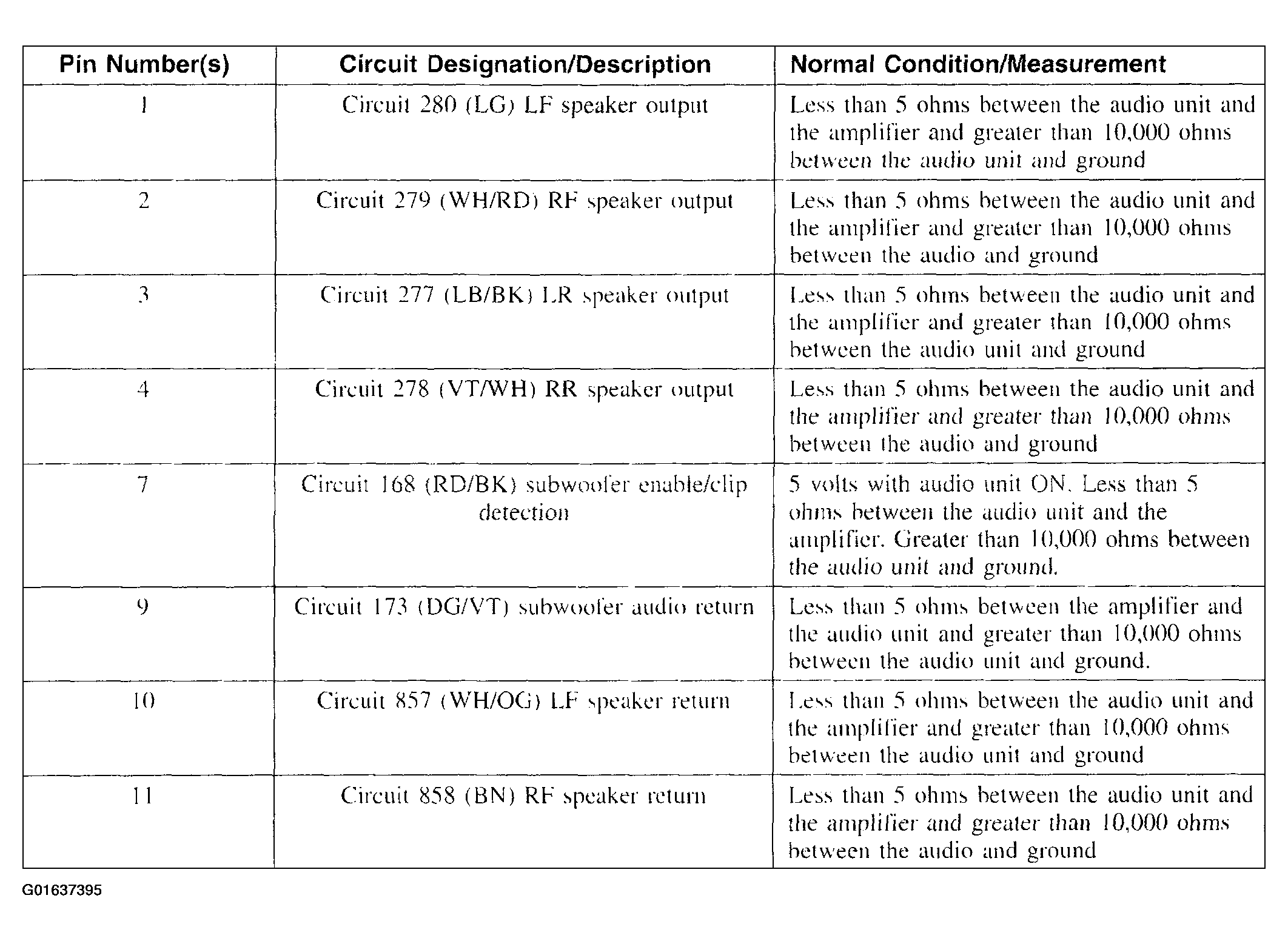

Fig 23: Identifying Audio Unit VNR C2253b Connector Terminals And Specification (2 Of 3)
G01637395Courtesy of FORD MOTOR CO.

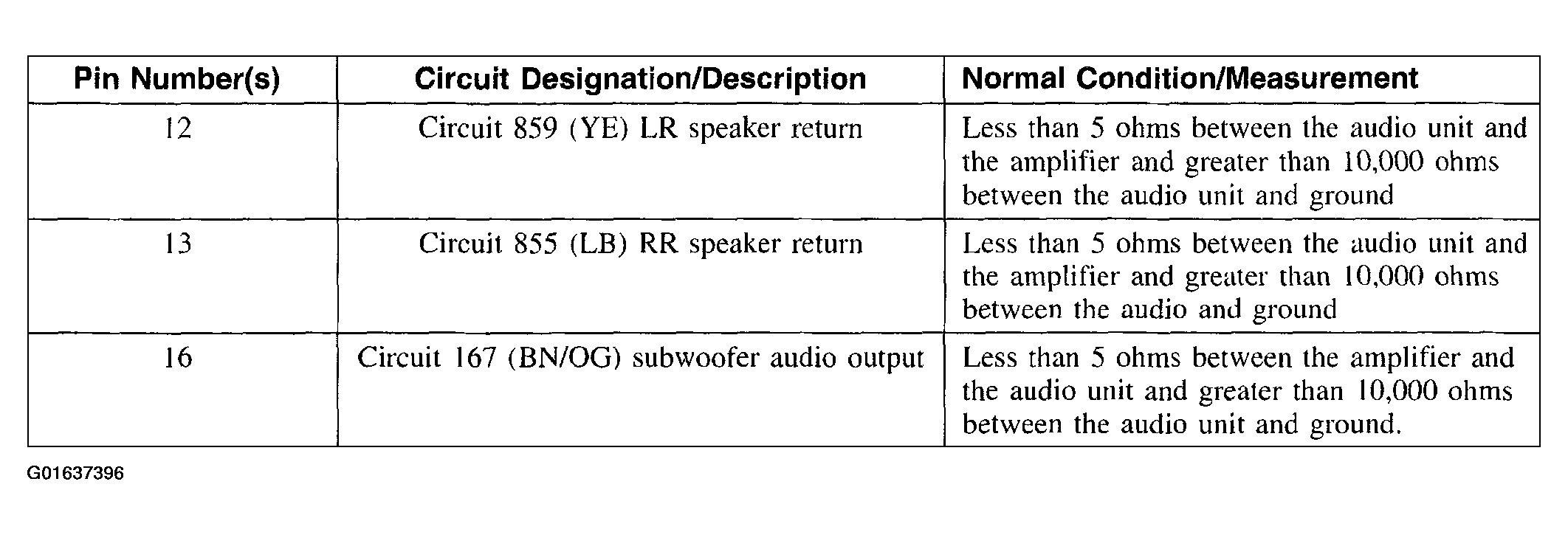

Fig 24: Identifying Audio Unit VNR C2253b Connector Terminals And Specification (3 Of 3)
G01637396Courtesy of FORD MOTOR CO.
Fig 25: Identifying Audio Unit VNR C2253c Connector Terminals And Specification (1 Of 2)
G01637397Courtesy of FORD MOTOR CO.

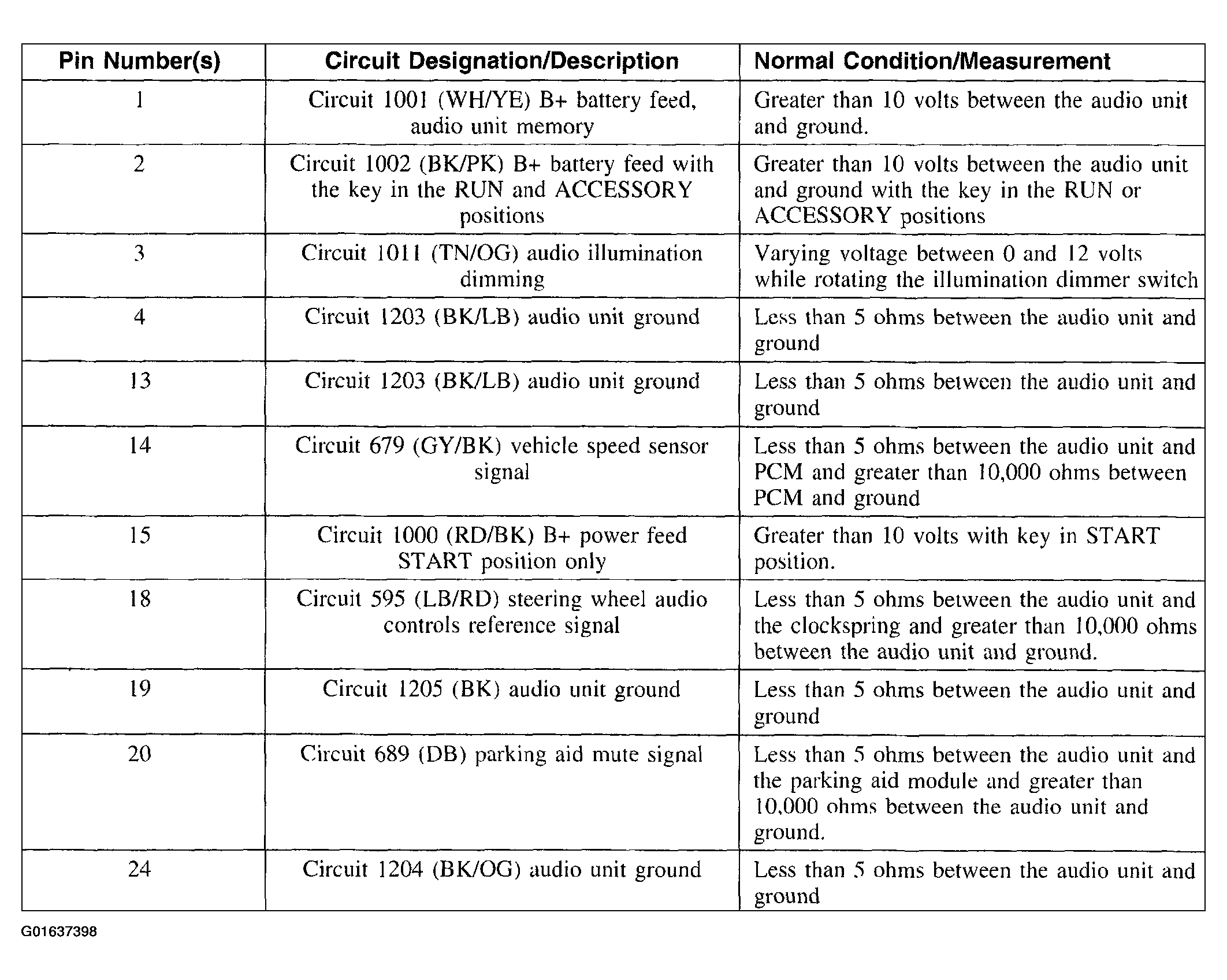

Fig 26: Identifying Audio Unit VNR C2253c Connector Terminals And Specification (2 Of 2)
G01637398Courtesy of FORD MOTOR CO.
Fig 27: Identifying Audio Unit VNR C2253d Connector Terminals And Specification (1 Of 2)
G01637399Courtesy of FORD MOTOR CO.

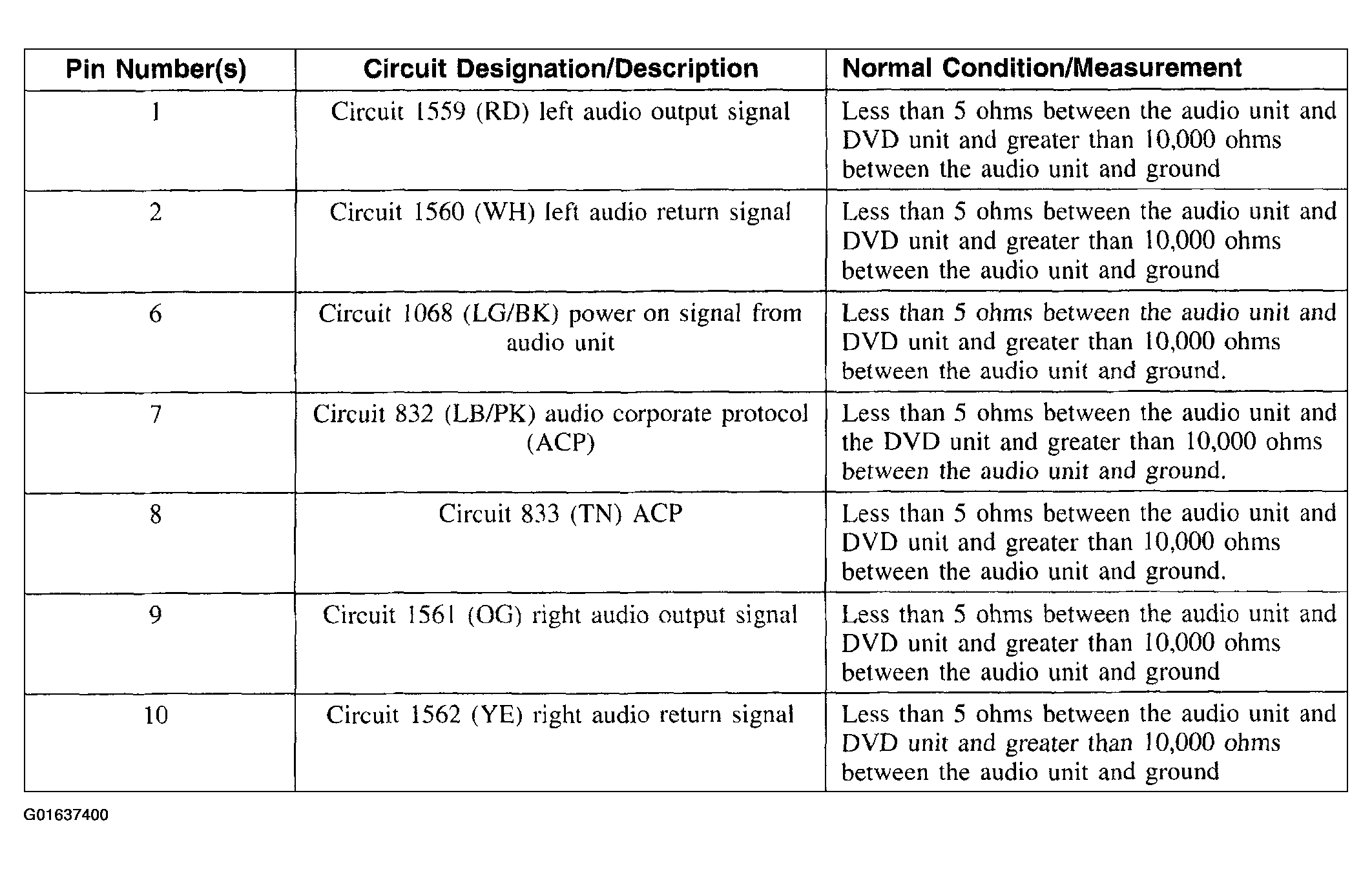

Fig 28: Identifying Audio Unit VNR C2253d Connector Terminals And Specification (2 Of 2)
G01637400Courtesy of FORD MOTOR CO.
Fig 29: Identifying Antenna Module C4082 Connector Terminals And Specification (1 Of 2)
G01637401Courtesy of FORD MOTOR CO.

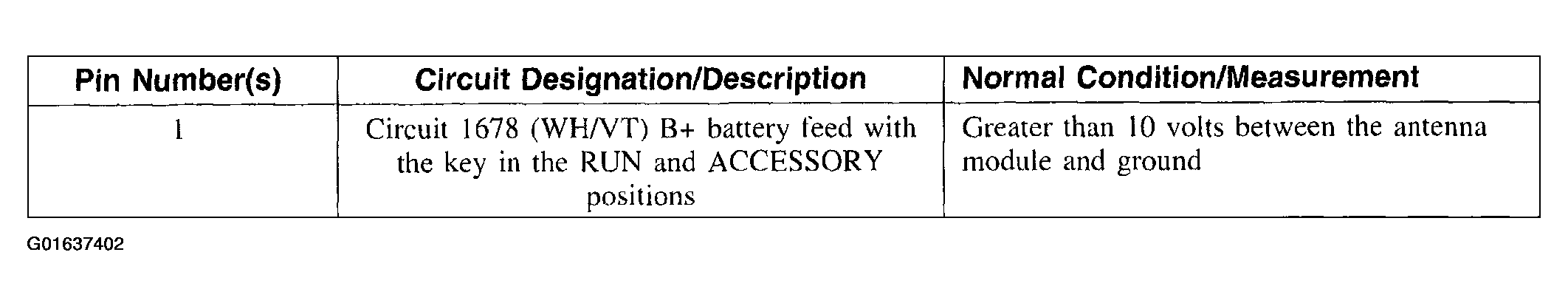

Fig 30: Identifying Antenna Module C4082 Connector Terminals And Specification (2 Of 2)
G01637402Courtesy of FORD MOTOR CO.
Fig 31: Identifying Subwoofer Amplifier C4109 Connector Terminals And Specification (1 Of 2)
G01637403Courtesy of FORD MOTOR CO.

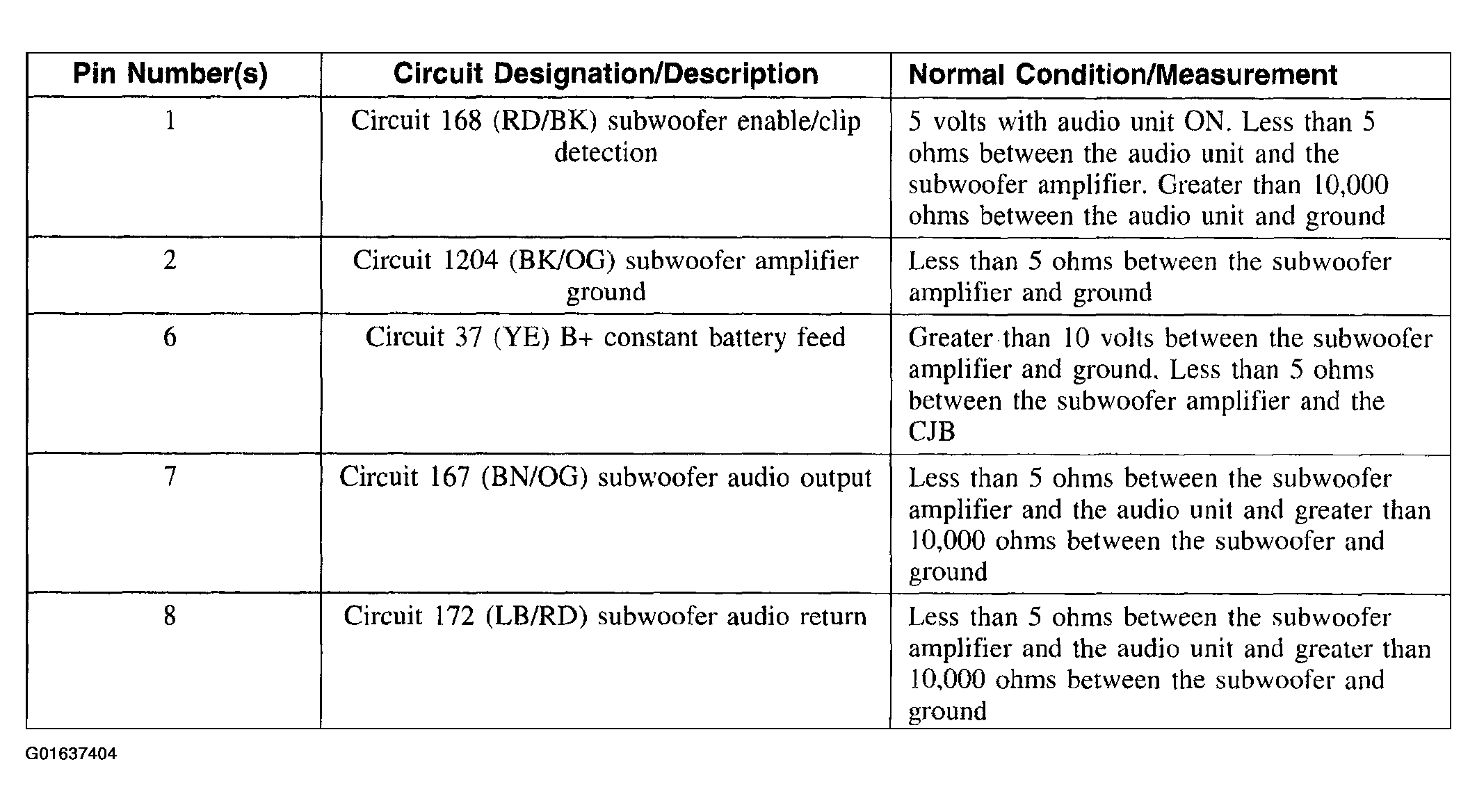

Fig 32: Identifying Subwoofer Amplifier C4109 Connector Terminals And Specification (2 Of 2)
G01637404Courtesy of FORD MOTOR CO.
Fig 33: Identifying Audio Unit Amplifier C4211a Connector Terminals And Specification (1 Of 3)
G01637405Courtesy of FORD MOTOR CO.

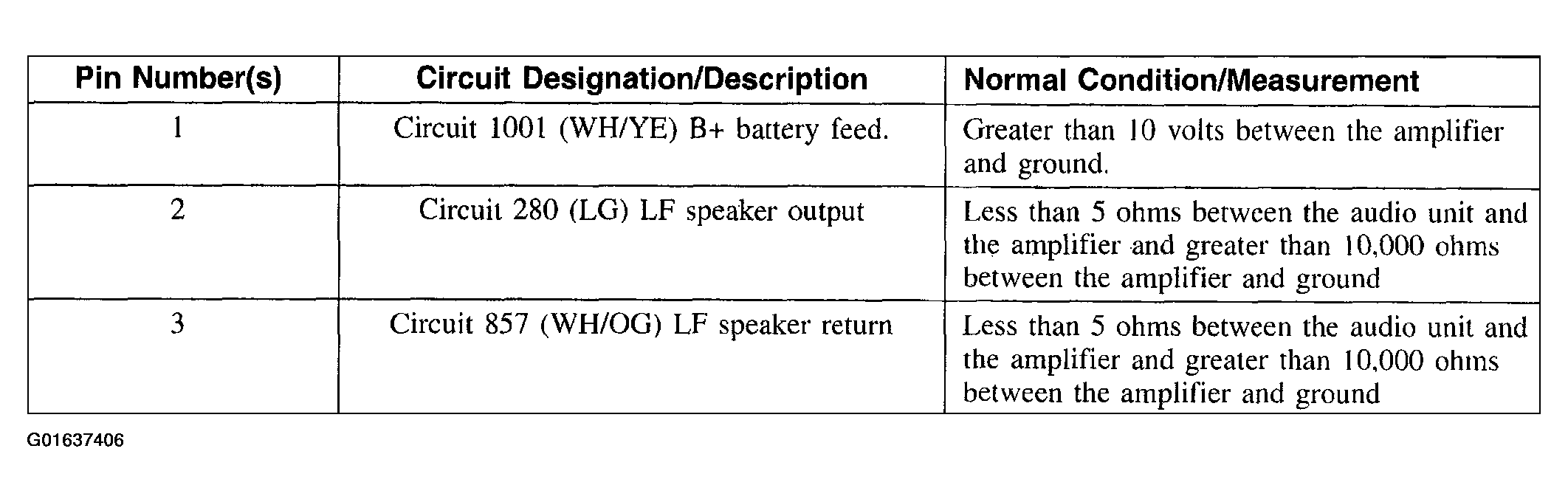

Fig 34: Identifying Audio Unit Amplifier C4211a Connector Terminals And Specification (2 Of 3)
G01637406Courtesy of FORD MOTOR CO.

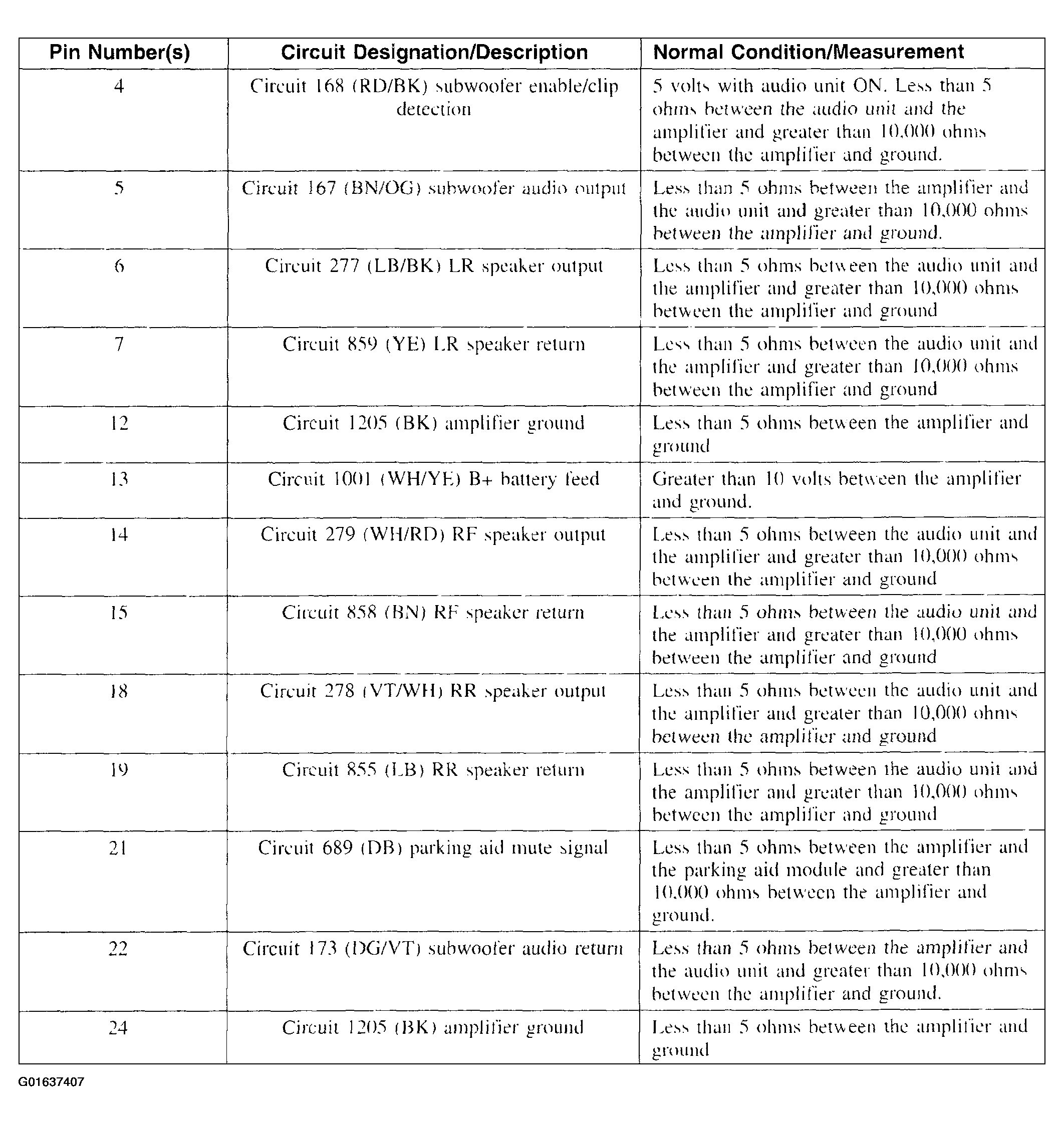

Fig 35: Identifying Audio Unit Amplifier C4211a Connector Terminals And Specification (3 Of 3)
G01637407Courtesy of FORD MOTOR CO.
Fig 36: Identifying Audio Unit Amplifier C4211b Connector Terminals And Specification (1 Of 2)
G01637408Courtesy of FORD MOTOR CO.

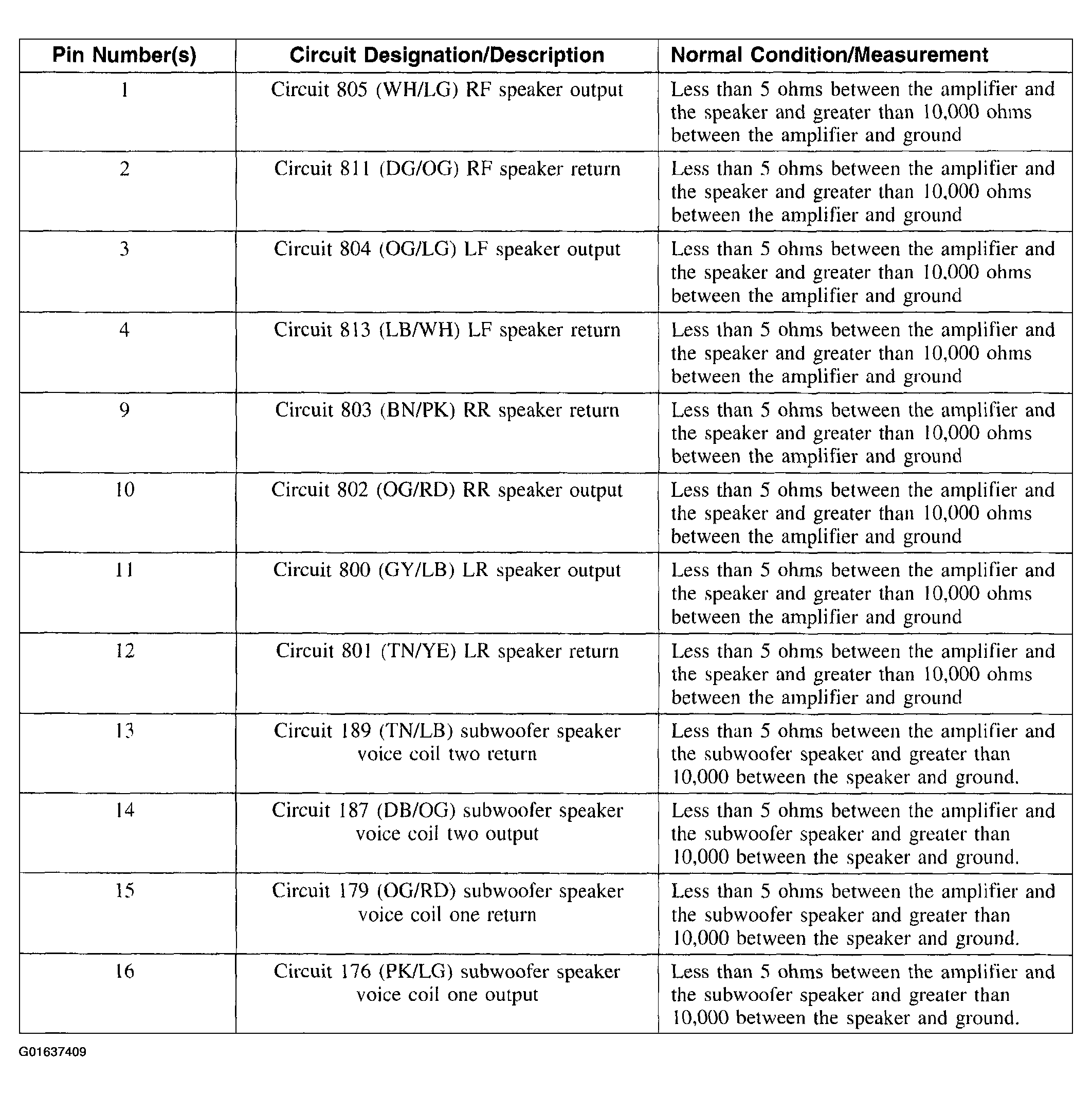

Fig 37: Identifying Audio Unit Amplifier C4211b Connector Terminals And Specification (2 Of 2)
G01637409Courtesy of FORD MOTOR CO.
Fig 38: Identifying Subwoofer C4212 - VNR Only Connector Terminals And Specification (1 Of 2)
G01637410Courtesy of FORD MOTOR CO.

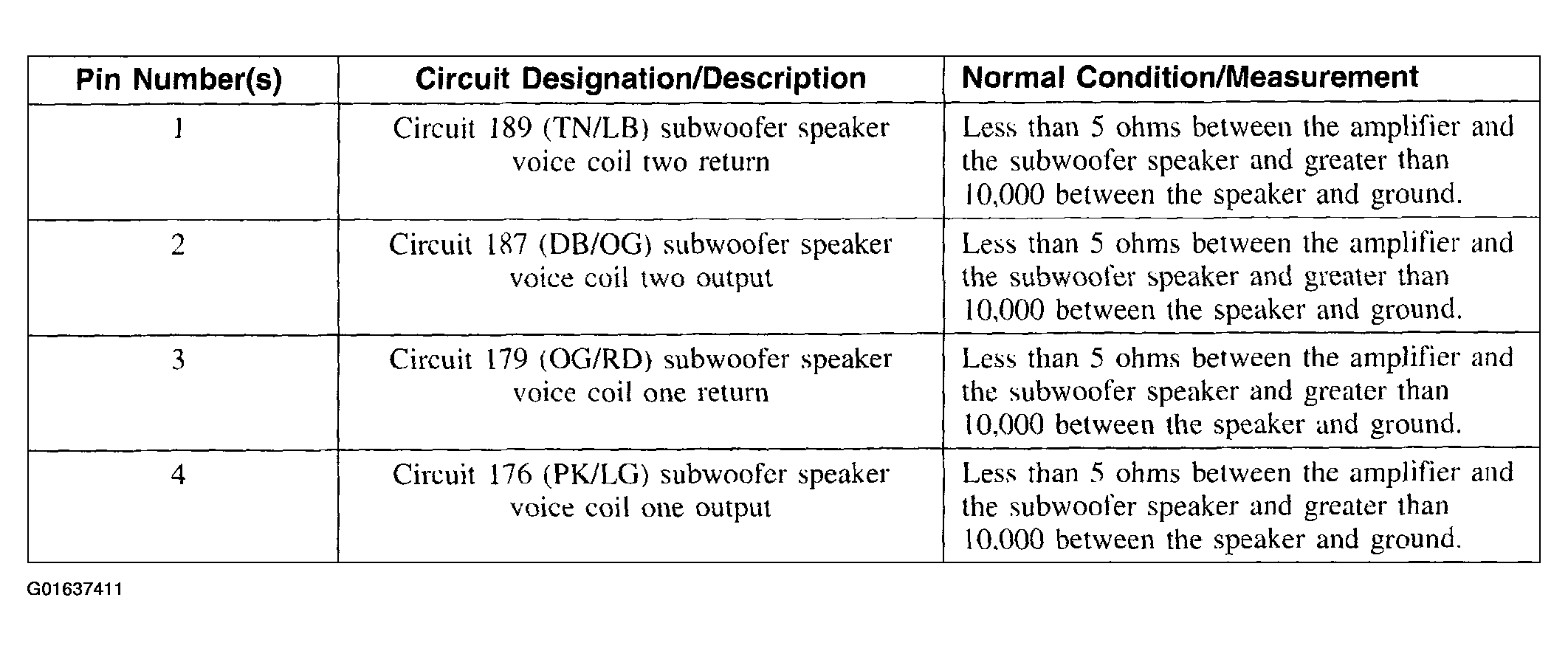

Fig 39: Identifying Subwoofer C4212 - VNR Only Connector Terminals And Specification (2 Of 2)
G01637411Courtesy of FORD MOTOR CO.
