Audio Unit Amplifier

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY & CHARGING SYSTEM .
Remove the right side rear quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the components in the order indicated in the following illustration.

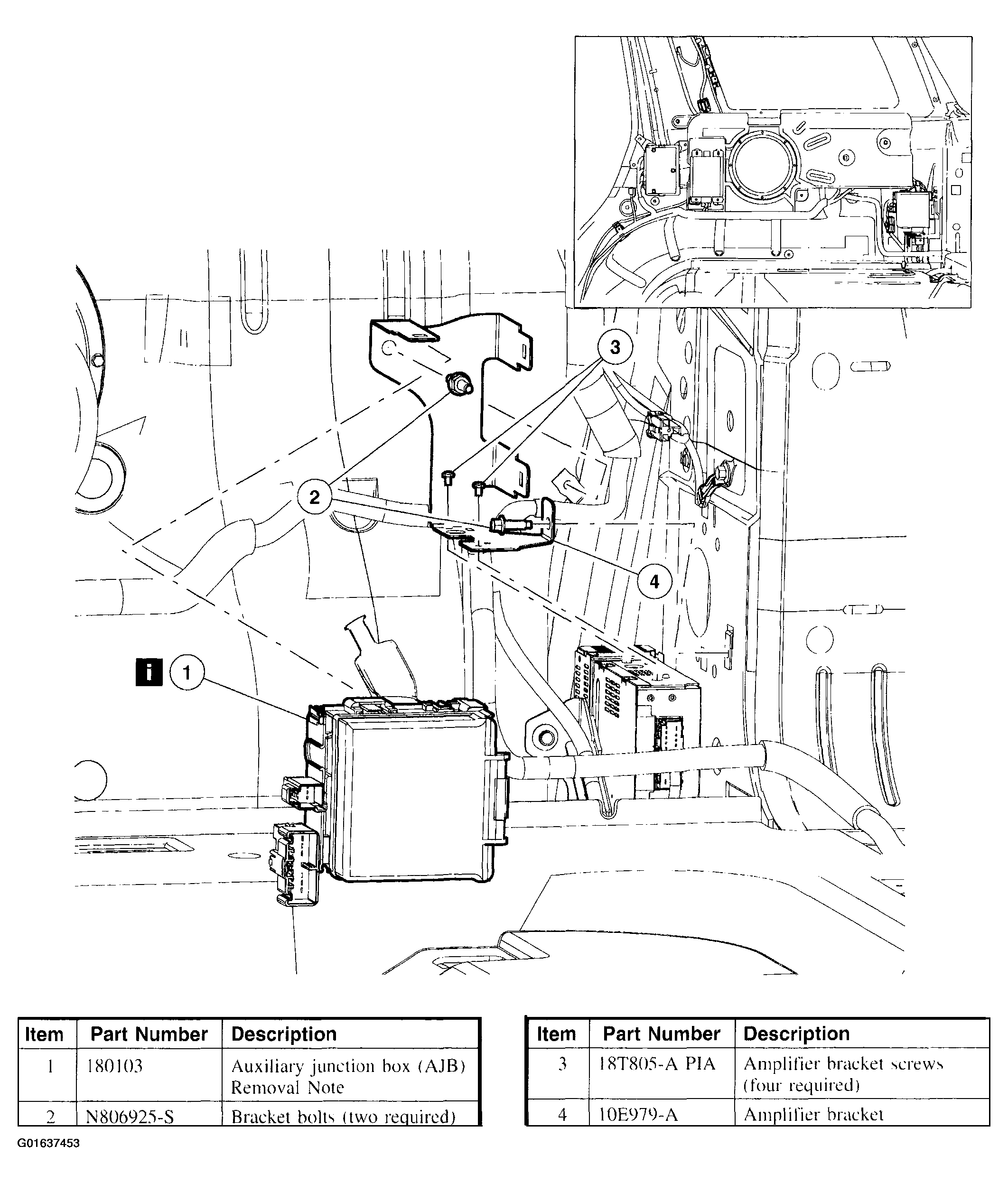

Fig 1: Audio Unit Amplifier Removal Procedure (Steps 1-4)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration.

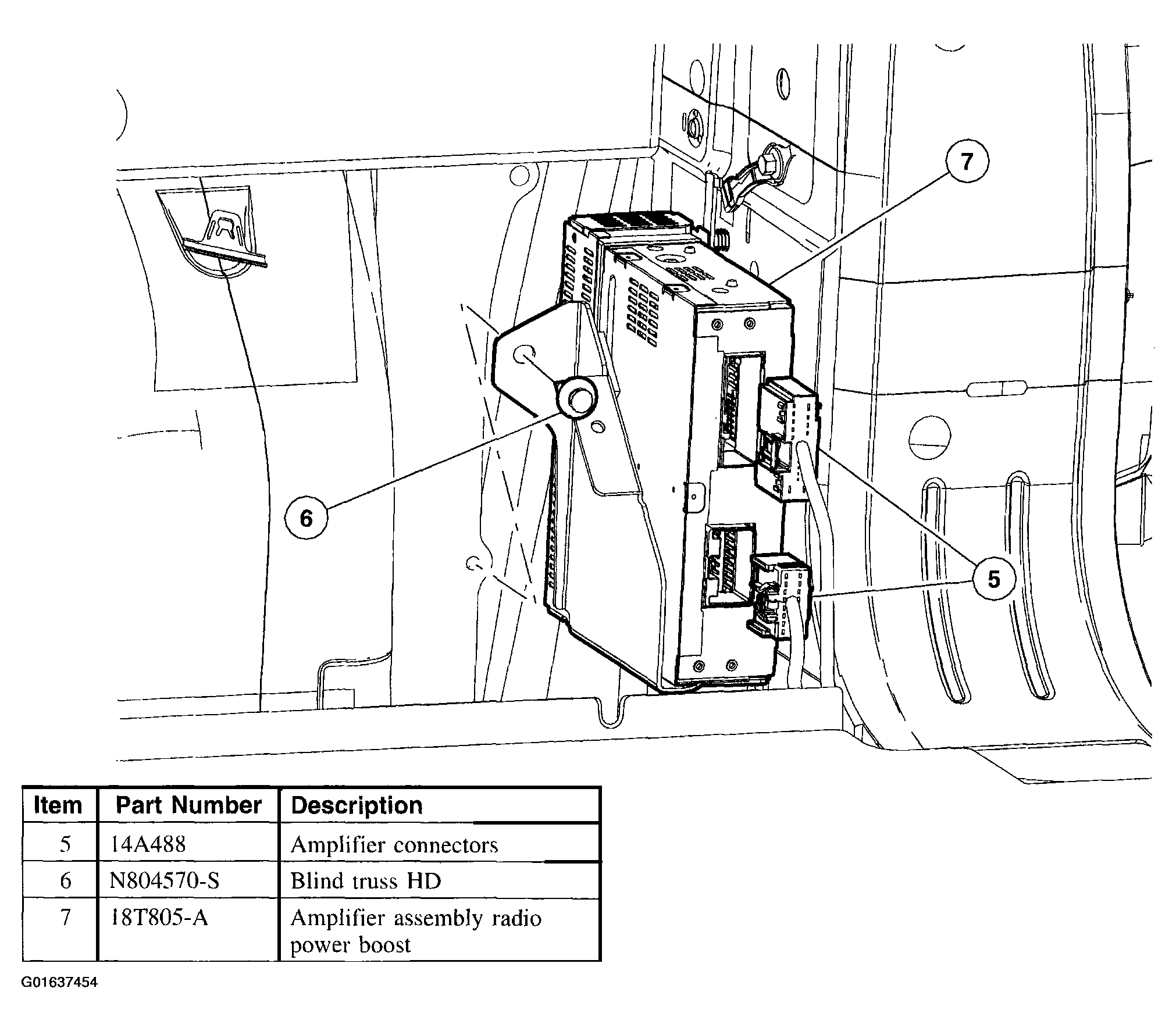

Fig 2: Audio Unit Amplifier Removal Procedure (Steps 5-7)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Auxiliary junction box (AJB) Removal Note

Release the three tabs and position aside the AJB.
- Disconnect electrical connectors as necessary.
