Connector Circuit Reference

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

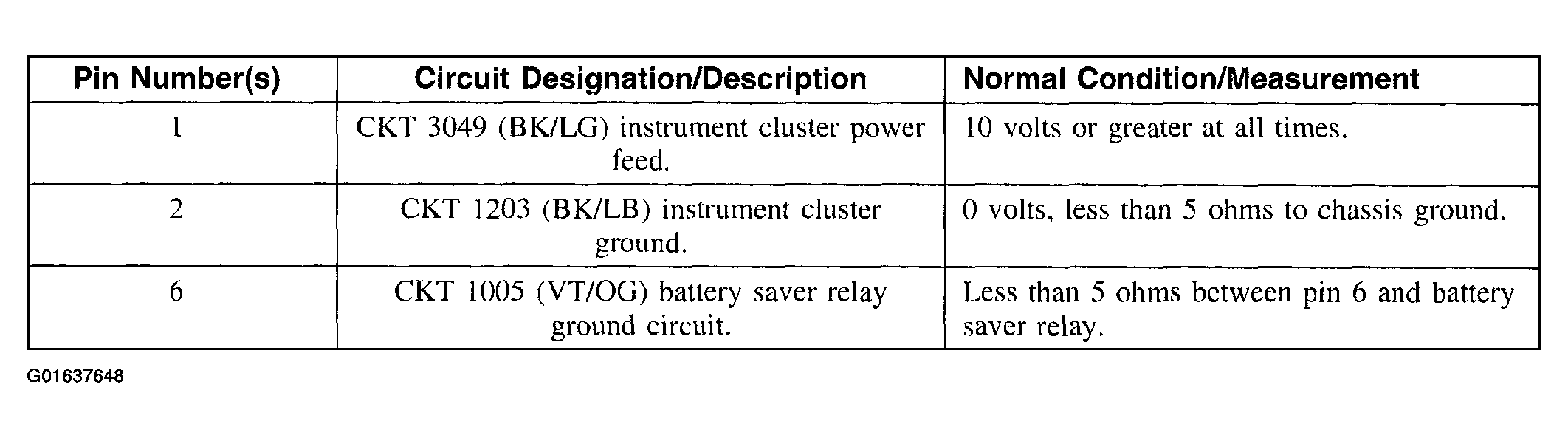

Fig 1: Identifying Instrument Cluster C220a Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

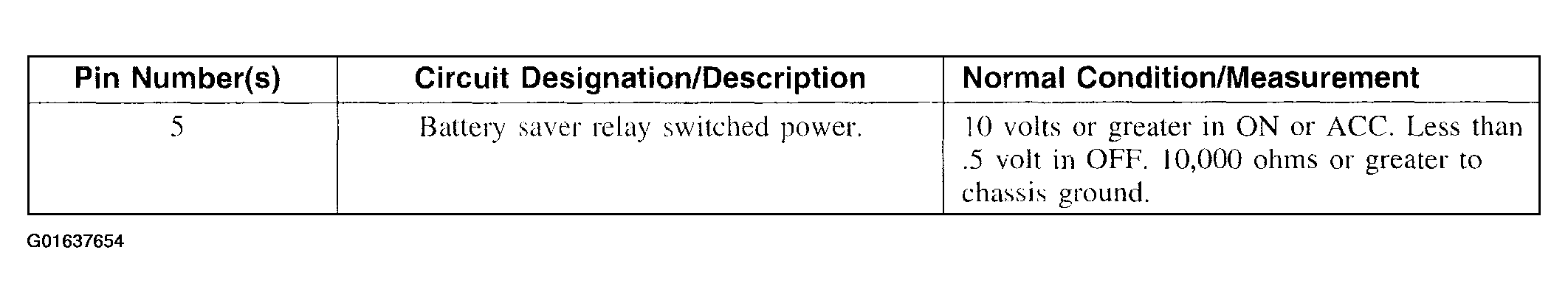

Fig 2: Identifying Instrument Cluster C220a Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Door Ajar Switch C526, C602, C715, C820, Liftgate Ajar Switch C479, Liftgate Glass Ajar Switch C478 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

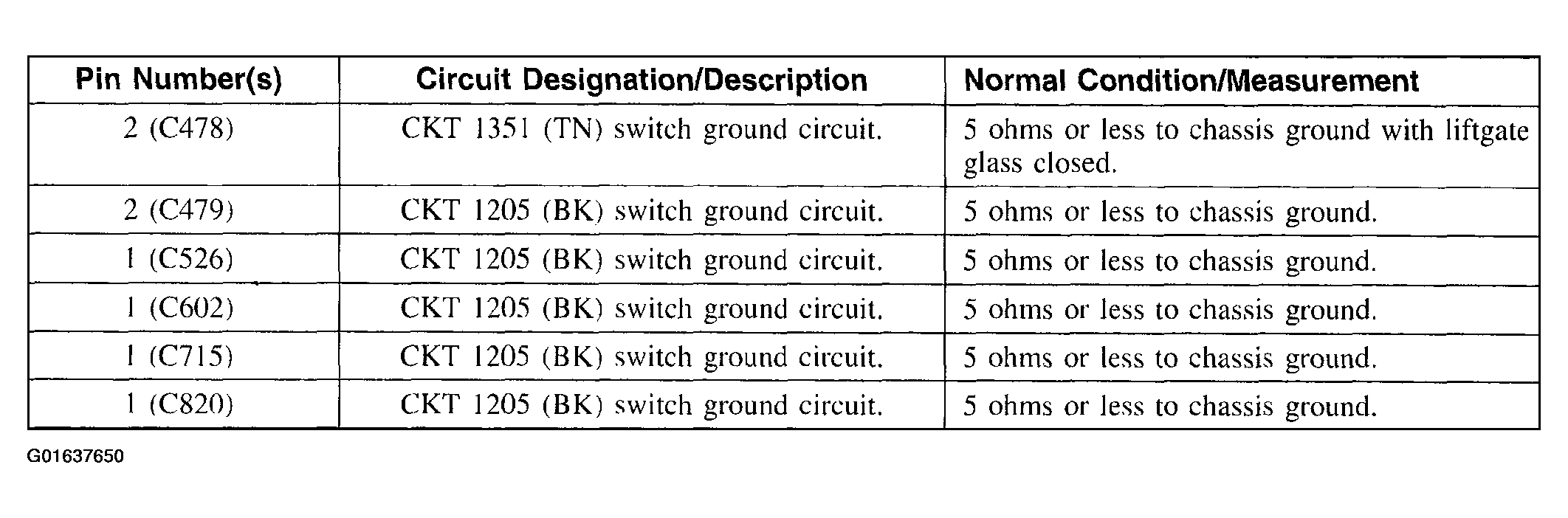

Fig 4: Identifying Door Ajar Switch C526, C602, C715, C820, Liftgate Ajar Switch C479, Liftgate Glass Ajar Switch C478 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Glove Compartment Lamp C254 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

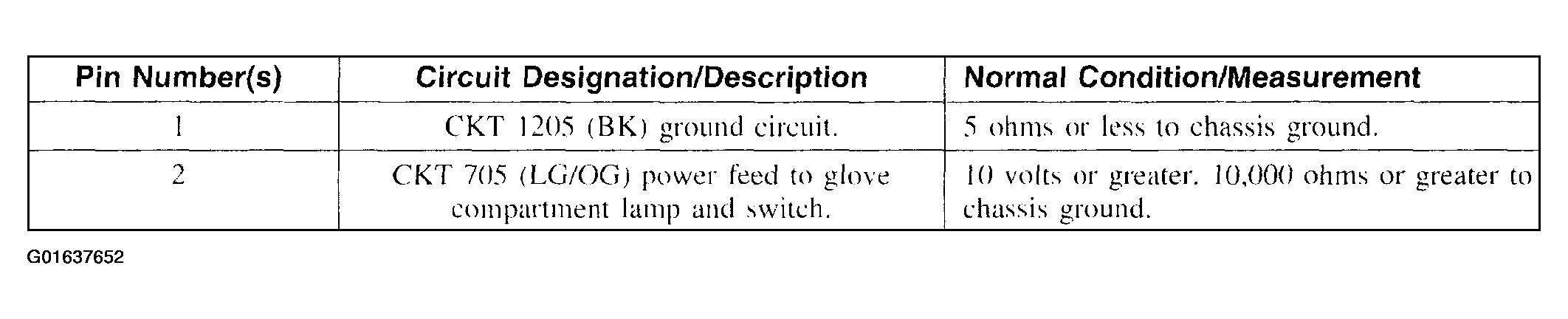

Fig 6: Identifying Glove Compartment Lamp C254 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Glove Compartment Lamp C254 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Glove Compartment Lamp C254 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Front Row Dome Lamp C931 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

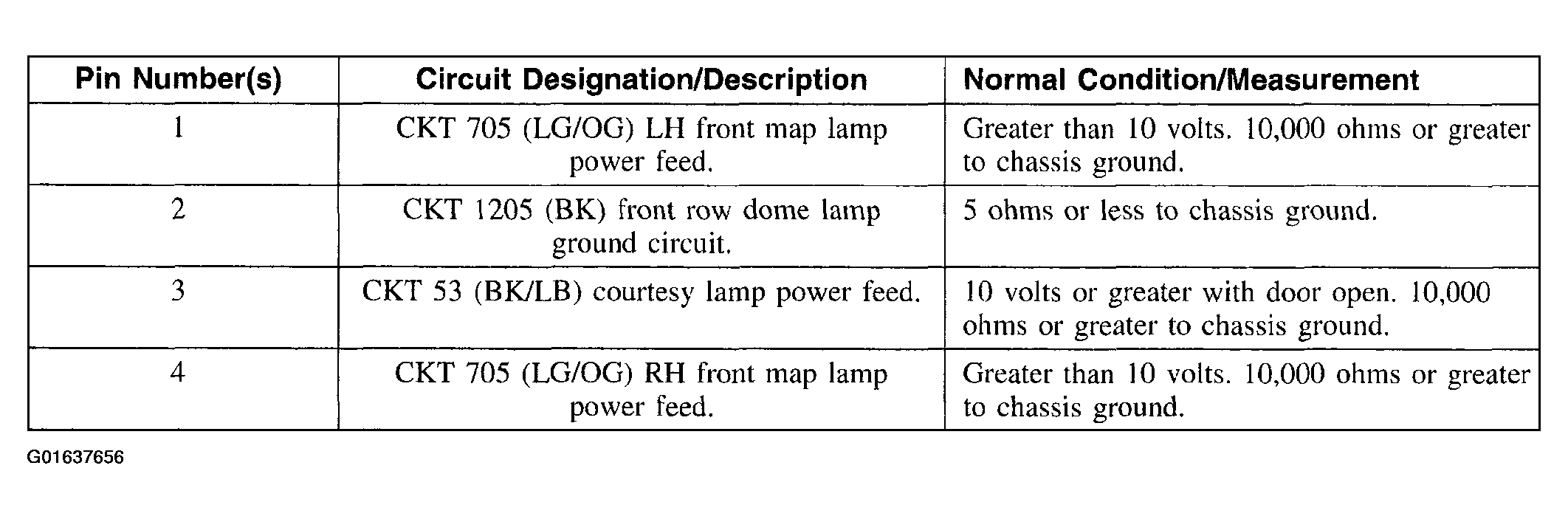

Fig 10: Identifying Front Row Dome Lamp C931 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Second Row Dome Lamp C932 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

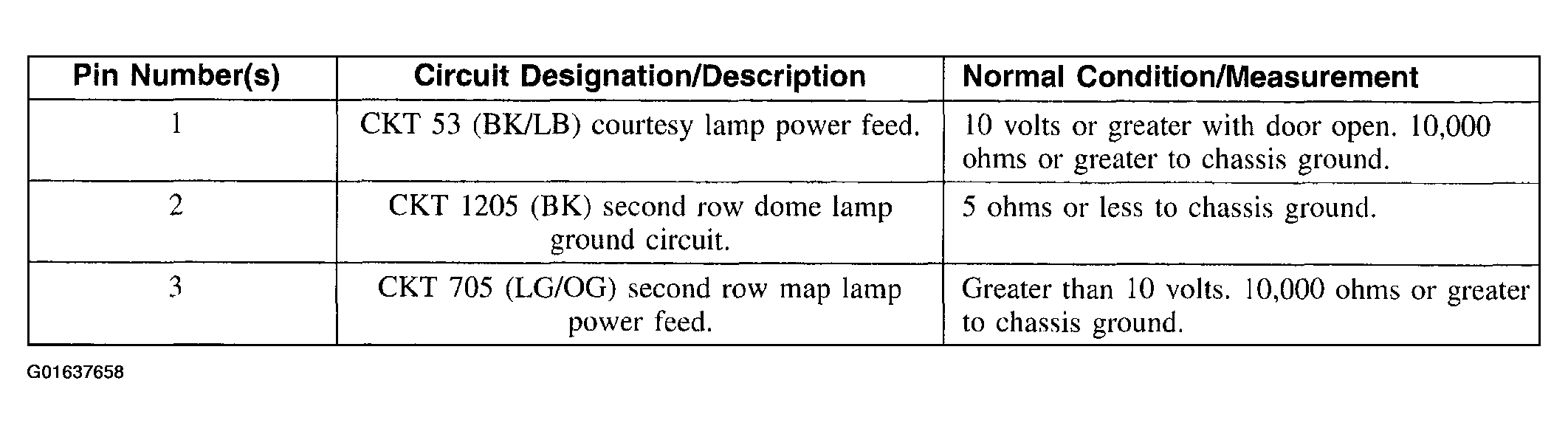

Fig 12: Identifying Second Row Dome Lamp C932 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 13: Identifying Cargo Lamp C927 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

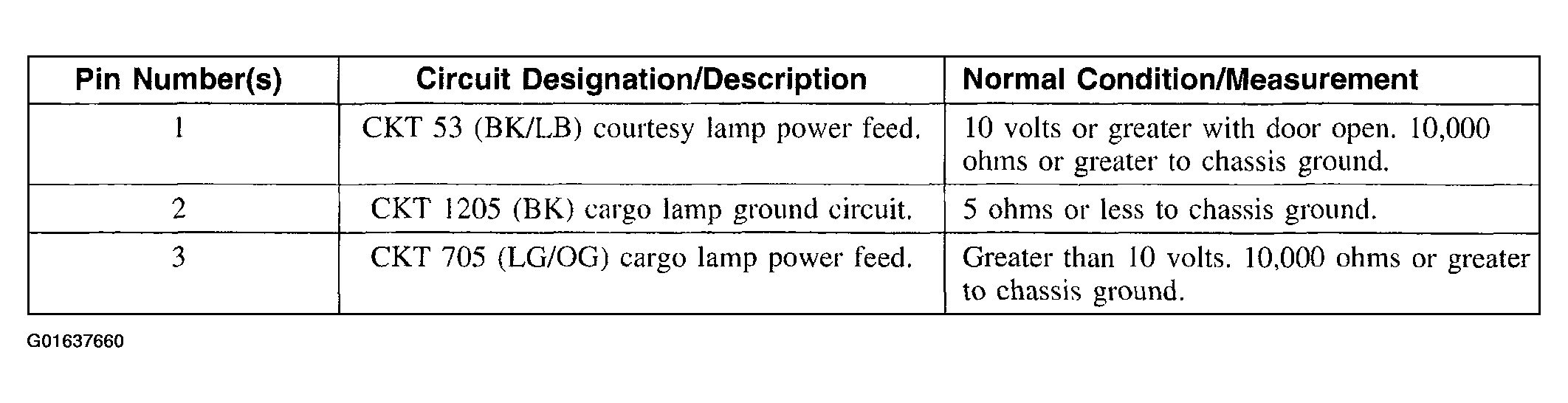

Fig 14: Identifying Cargo Lamp C927 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Cargo Lamp C927 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 16: Identifying Cargo Lamp C927 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 17: Identifying RH Vanity Lamp C906 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

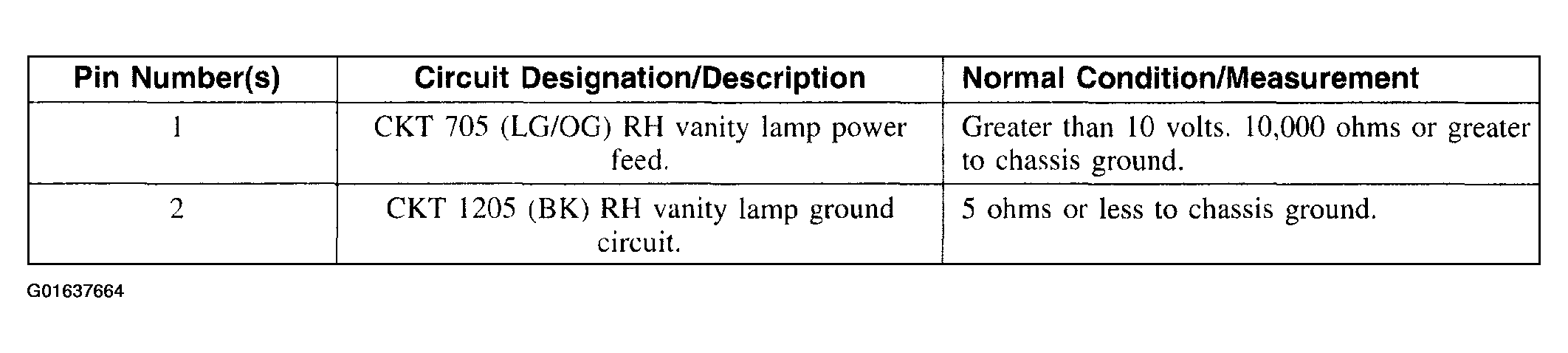

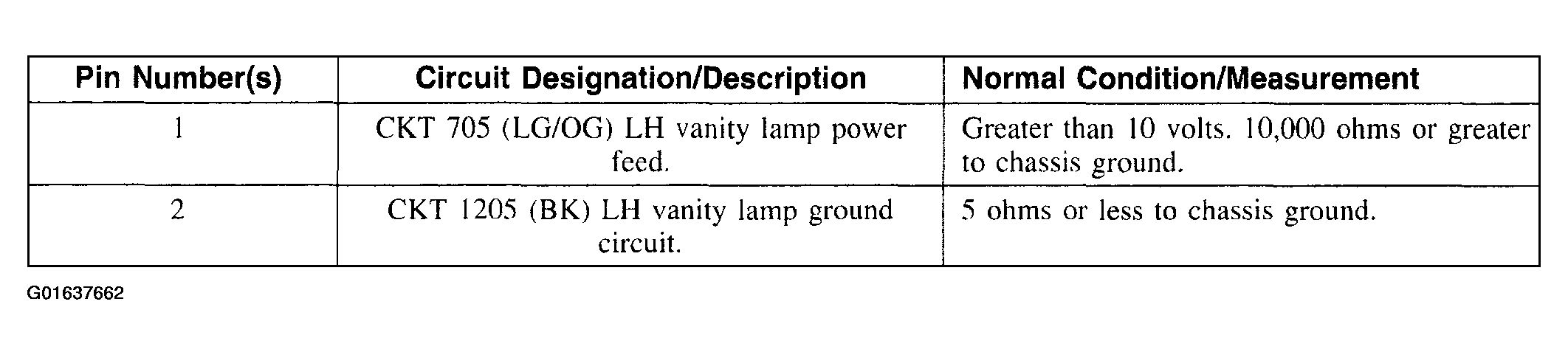

Fig 18: Identifying RH Vanity Lamp C906 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.
