WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

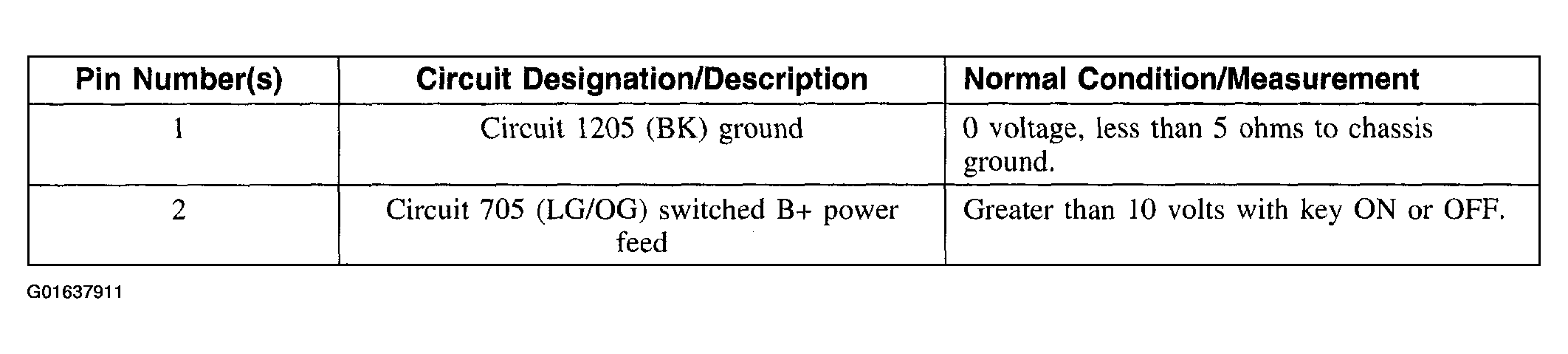

Fig 1: Identifying Universal Transmitter C928 Connector Terminals And Specification (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Universal Transmitter C928 Connector Terminals And Specification (2 Of 2)
