Valve Cover: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new valve cover gaskets, if removed.

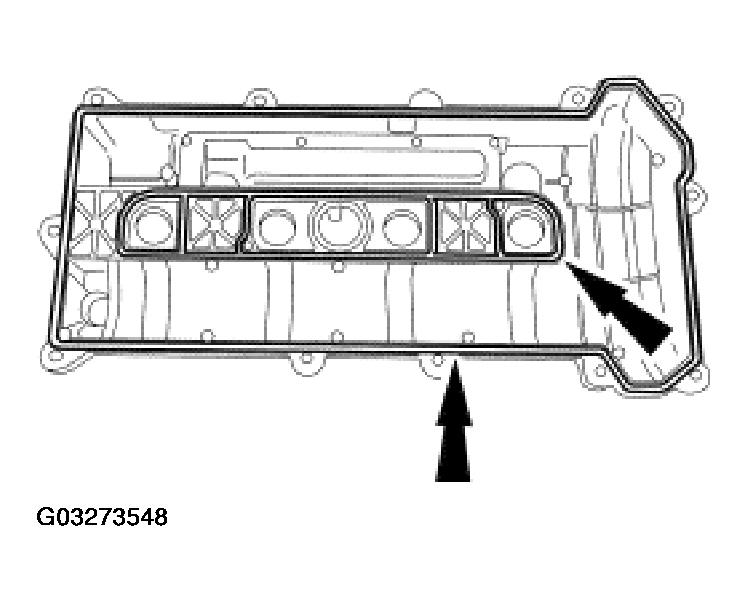

    Fig 1: Installing New Valve Cover Gaskets
    G03273548Courtesy of FORD MOTOR CO.
  2. Install the valve cover and bolts. Tighten the bolts in the sequence shown to 10 N.m (89 lb-in).

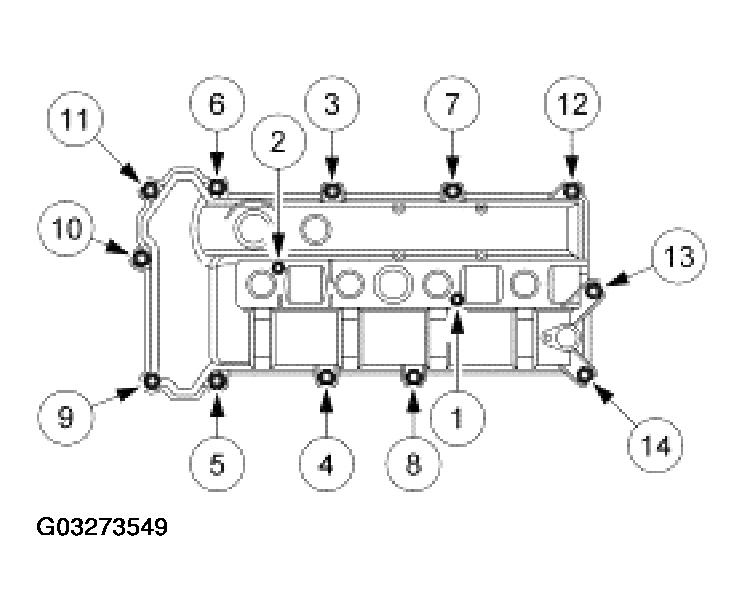

    Fig 2: Valve Cover Bolt Tightening Sequence
    G03273549Courtesy of FORD MOTOR CO.
  3. Install the crankcase ventilation tube.

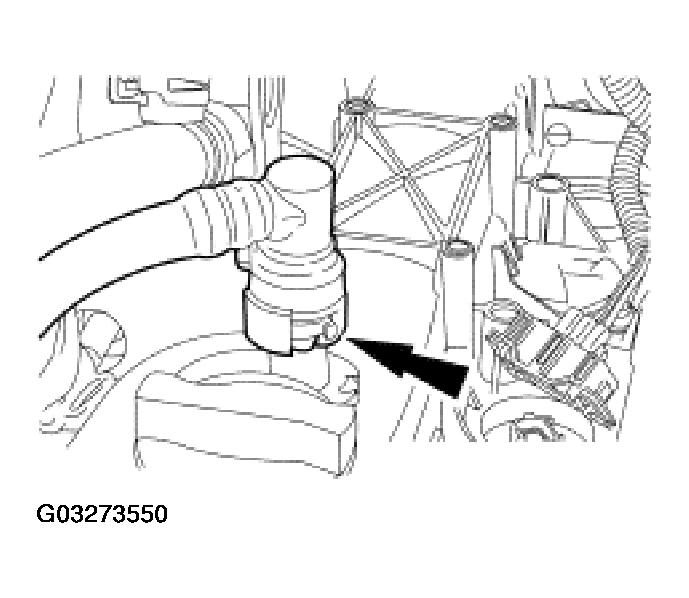

    Fig 3: Installing Crankcase Ventilation Tube
    G03273550Courtesy of FORD MOTOR CO.
  4. NOTE: Apply clean engine oil to the O-ring seal to aid in installation.

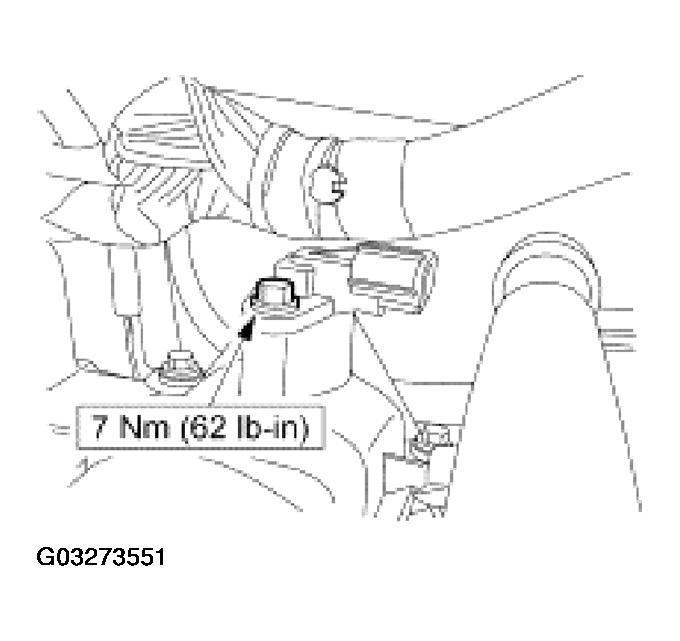

    Fig 4: Installing Camshaft Position Sensor
    G03273551Courtesy of FORD MOTOR CO.
  5. Install the camshaft position sensor.
  6. Connect the camshaft position sensor.

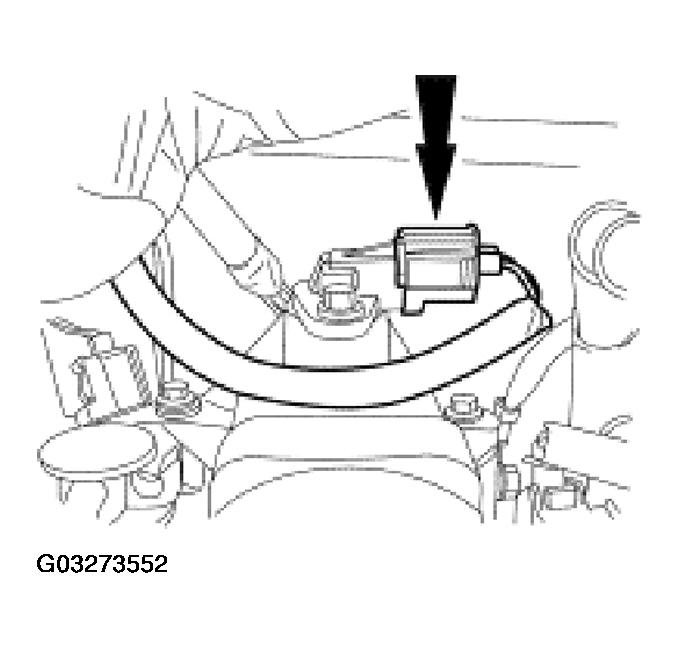

    Fig 5: Connecting Camshaft Position Sensor
    G03273552Courtesy of FORD MOTOR CO.
  7. Install the ignition coil and the bolts.

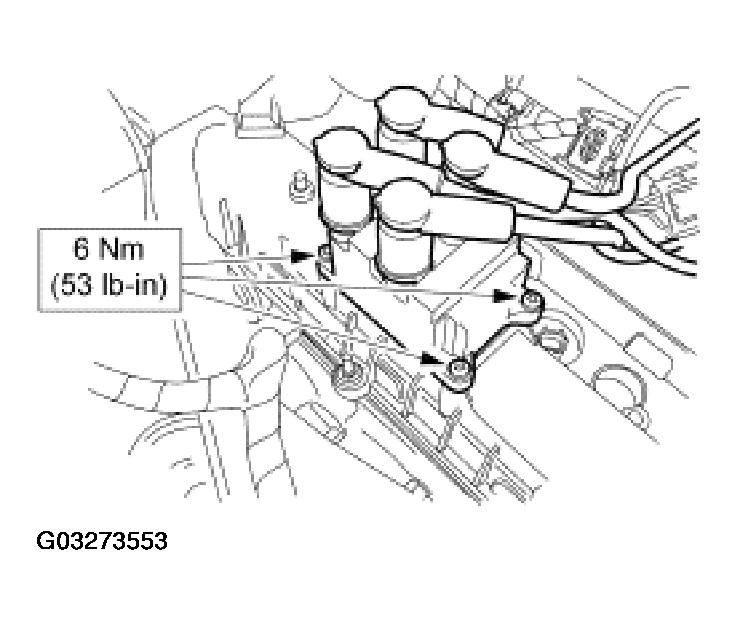

    Fig 6: Installing Ignition Coil
    G03273553Courtesy of FORD MOTOR CO.
  8. Connect the ignition coil electrical connector.

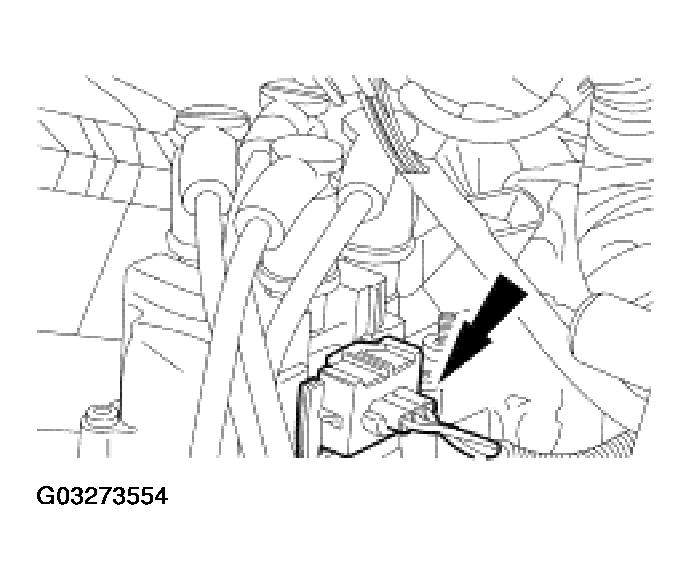

    Fig 7: Connecting Ignition Coil Electrical Connector
    G03273554Courtesy of FORD MOTOR CO.
  9. Connect the spark plug wires to the spark plugs. For additional information, refer to ENGINE IGNITION - 2.3L .
  10. Install the engine wiring harness onto the valve cover studs.

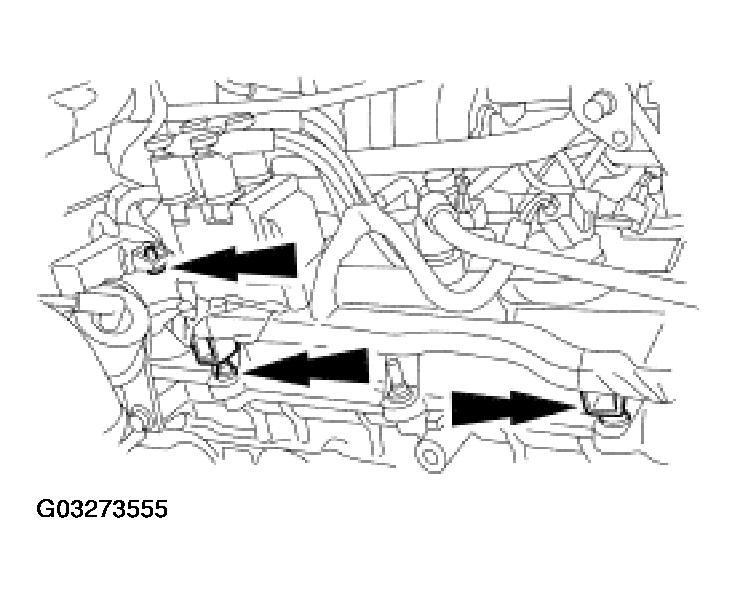

    Fig 8: Installing Engine Wiring Harness Onto Valve Cover Studs
    G03273555Courtesy of FORD MOTOR CO.
  11. Connect the cylinder head temperature (CHT) sensor electrical connector.

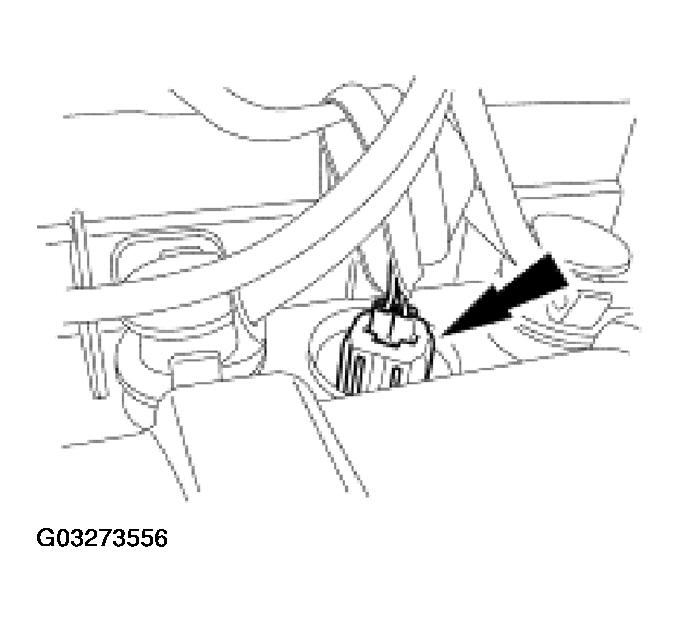

    Fig 9: Connecting CHT Sensor Electrical Connector
    G03273556Courtesy of FORD MOTOR CO.
  12. Position back the CHT sensor boot.

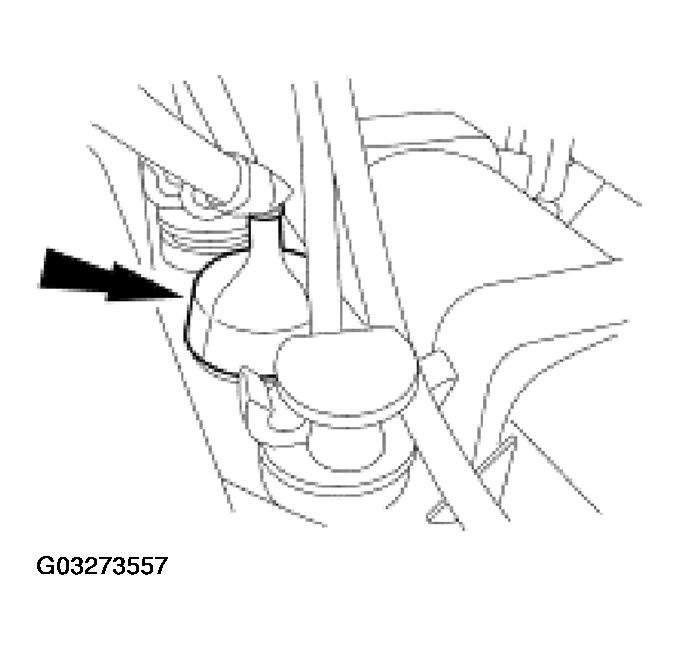

    Fig 10: Placing CHT Sensor Boot Back Into Position
    G03273557Courtesy of FORD MOTOR CO.
  13. Install the intake manifold. For additional information, refer to INTAKE MANIFOLD .
  14. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
