Jacking Points

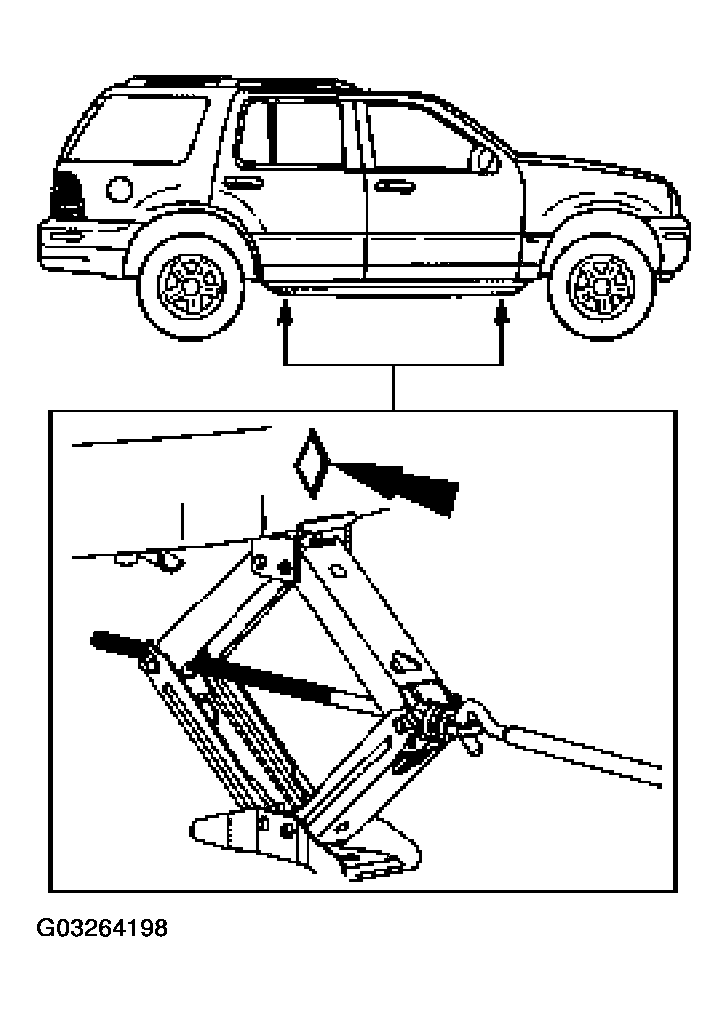

Fig 1: Identifying Jacking Points

Courtesy of FORD MOTOR CO.

NOTE: Place a wheel chock diagonally opposite of the wheel to be raised.

The front jacking points are indicated by a cut-out in the frame, located behind the front tire and wheel.

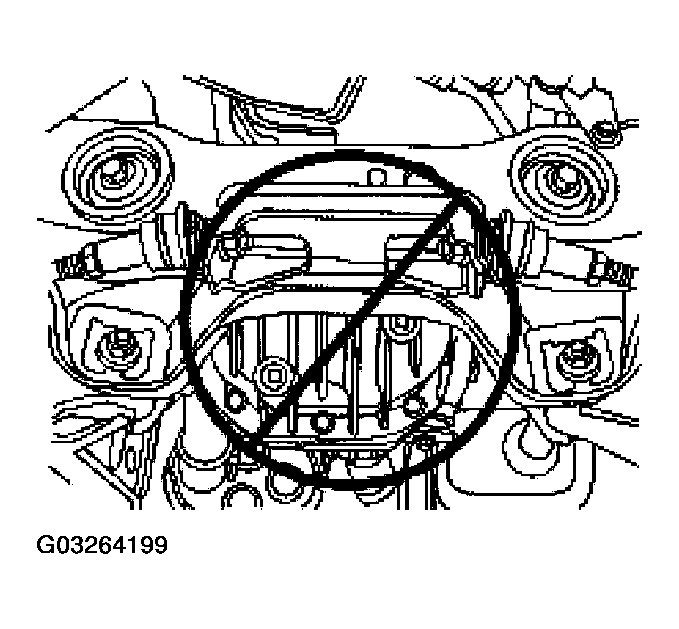

Fig 2: Identifying What Not To Use As A Lift Point

Courtesy of FORD MOTOR CO.

CAUTION: Do not use the differential housing as a lift point. Leaks or damage to the rear axle cover and adjoining differential housing surface may occur if a floor jack or any lifting device is allowed to contact the cover at any point where the cover joins the housing.

The rear jacking points are indicated by a cut-out in the frame in front of the rear tire and wheel.
