Air Distribution Ducts: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    AIR DISTRIBUTION DUCTS REMOVAL STEPS

    Part Steps
    Floor ducts 1-4
    Floor console ducts 5-8
    Defrost duct 9-11
    Air inlet duct 12-16
    Center panel duct 17-18

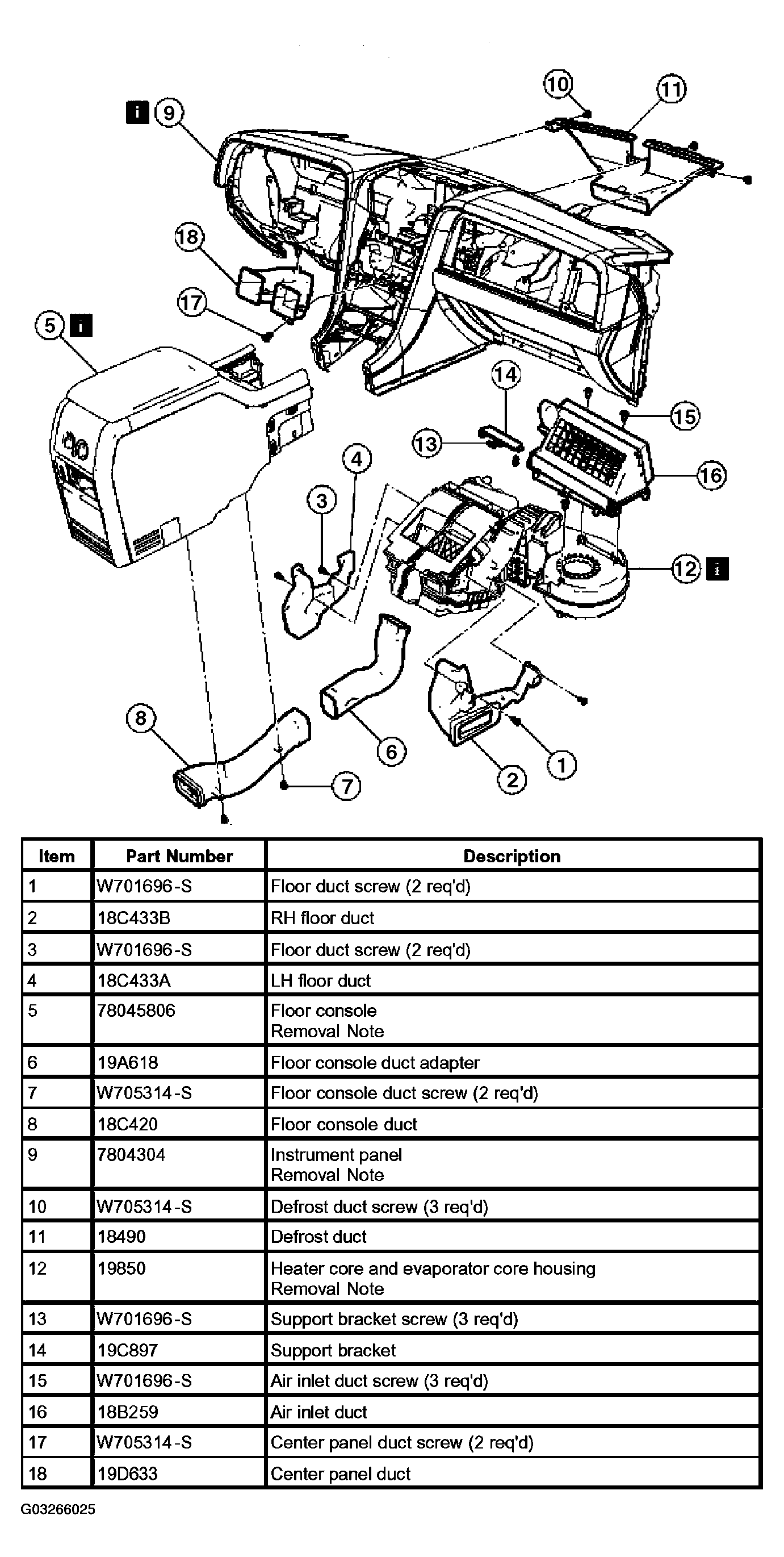

    Fig 1: Removal Sequence Of Air Distribution Ducts
    G03266025Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
