Plenum Chamber, Assembly and Components

  1. Remove the defroster duct. For additional information, refer to Air Distribution Ducts .
  2. Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY .
  3. Remove the parts in the order indicated in the following illustration and table.

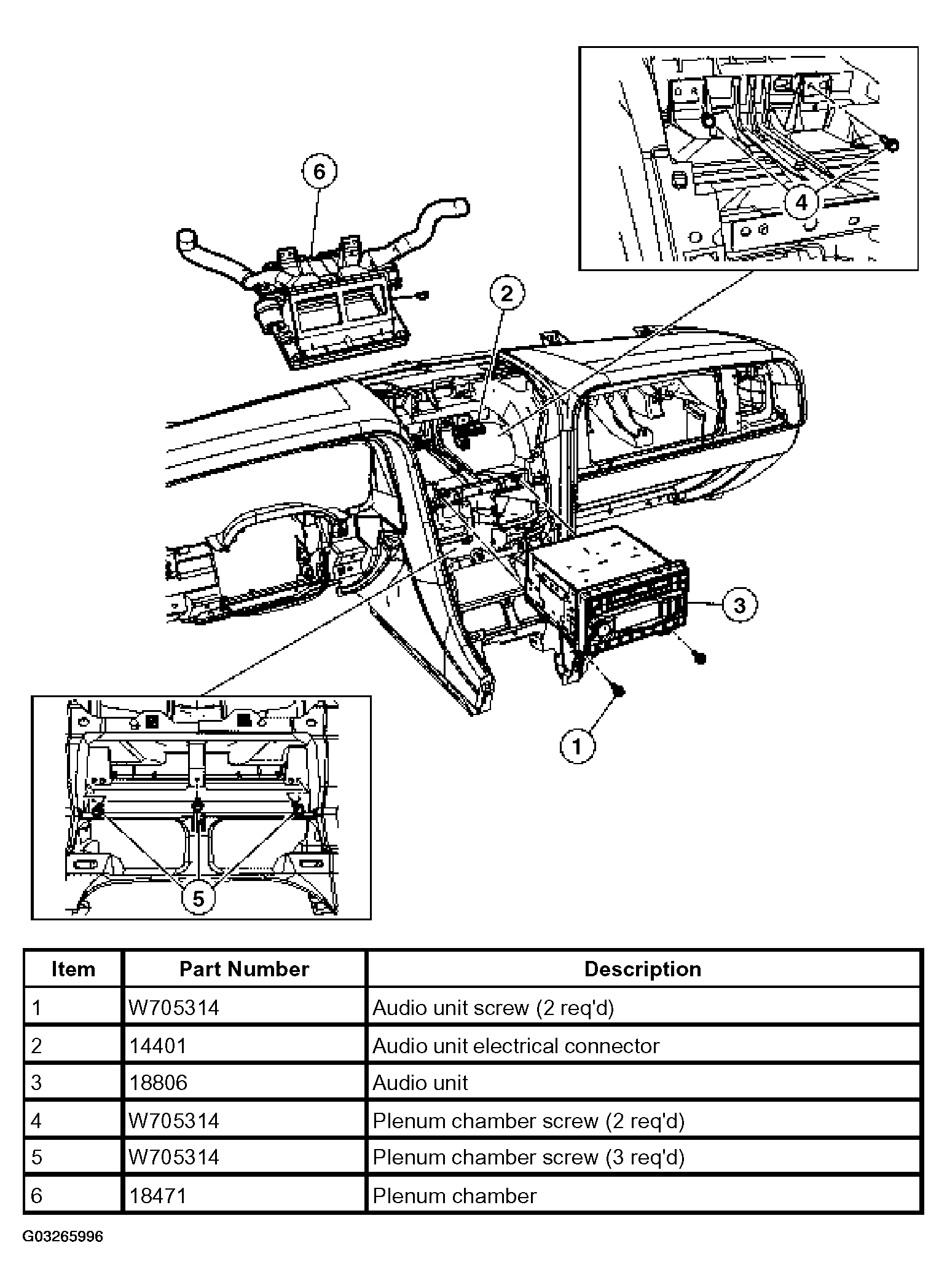

    Fig 1: Identifying Plenum Chamber Components
    G03265996Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
