Item 39: Intermediate Brake Band Anchor Strut Assembly Note

Install the intermediate band anchor strut.

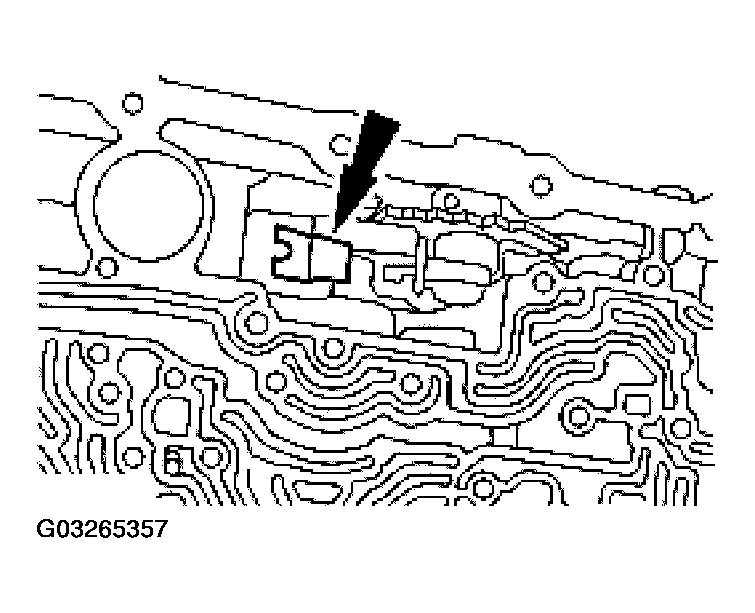

Fig 1: Installing Intermediate Band Anchor Strut
Courtesy of FORD MOTOR CO.

CAUTION: If the strut is installed incorrectly, transmission damage will occur.

Fig 2: Identifying Intermediate Band Anchor Strut Position

Courtesy of FORD MOTOR CO.

Check to make sure that the intermediate band anchor strut is installed in the correct orientation to the case and adjustment screw.
