Extension Housing Gasket - 4X4: Notes

  1. Remove the transfer case assembly. For additional information, refer to FOUR-WHEEL DRIVE SYSTEMS .
  2. Remove the parts in the order indicated in the following illustration and table.

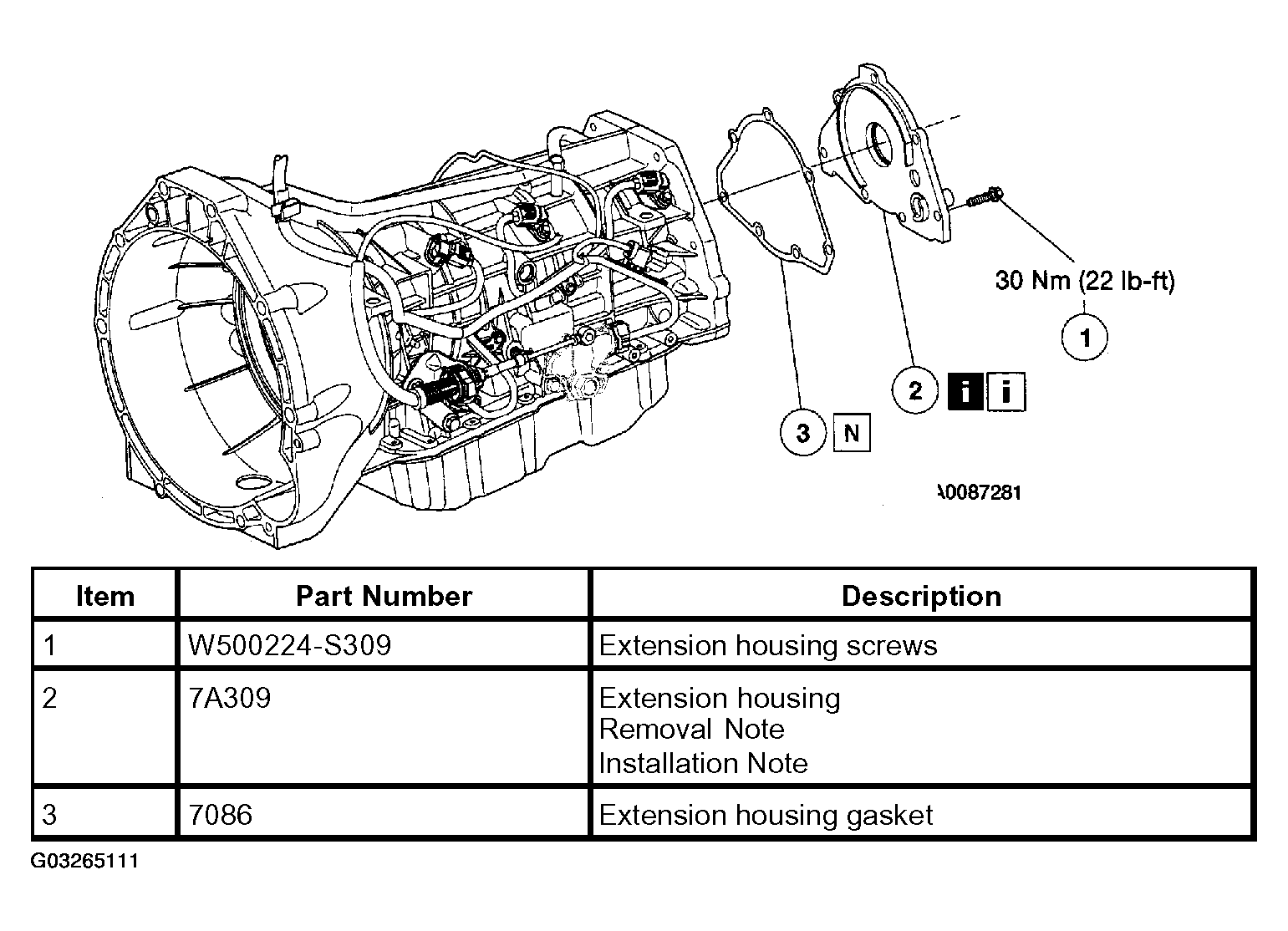

    Fig 1: Removing Extension Housing Components
    G03265111Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
  4. Fill the transmission with clean automatic transmission fluid. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
