Item 16, 17 and 18: Main Control Valve Body Screws Installation Note

  1. Using the special tools, install the main control valve body and loosely install the screws.
    1. Install the short screw.
    2. Install the screw with the larger head.
    3. Install the remaining screws.

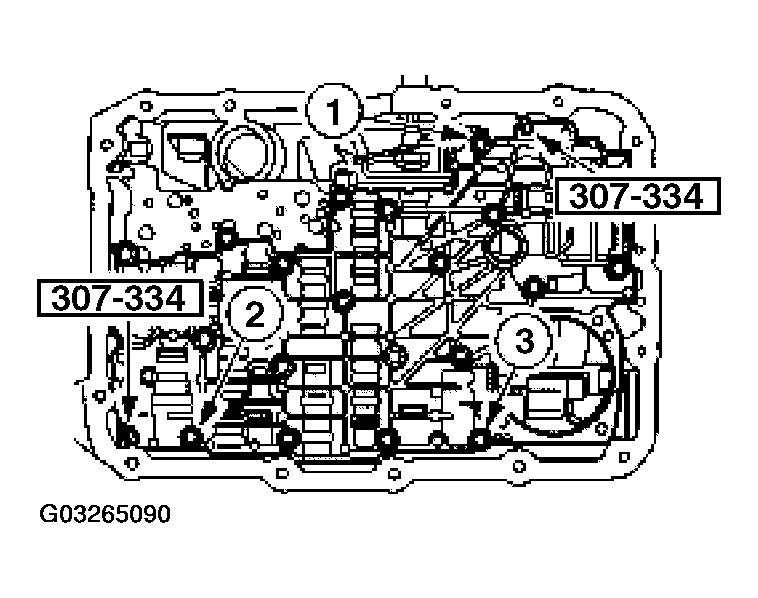

    Fig 1: Installing Remaining Screws
    G03265090Courtesy of FORD MOTOR CO.
  2. Remove the special tools, and loosely install the screw.

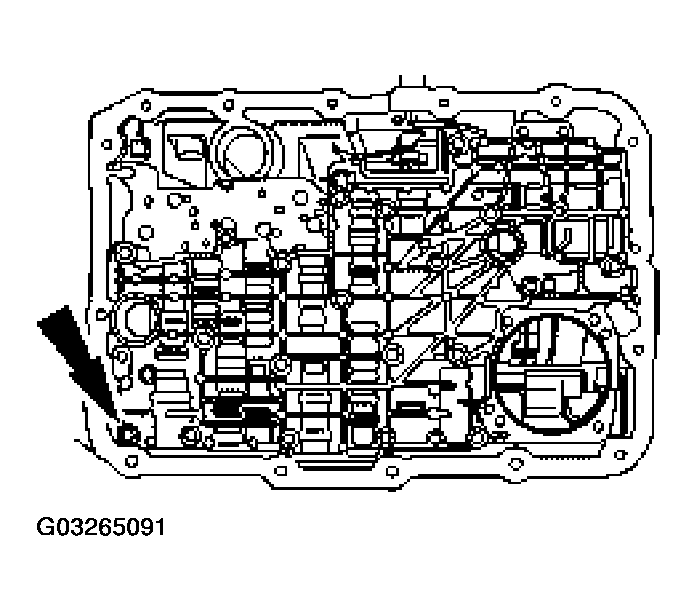

    Fig 2: Installing Screw
    G03265091Courtesy of FORD MOTOR CO.
  3. Tighten the screws in the sequence shown.

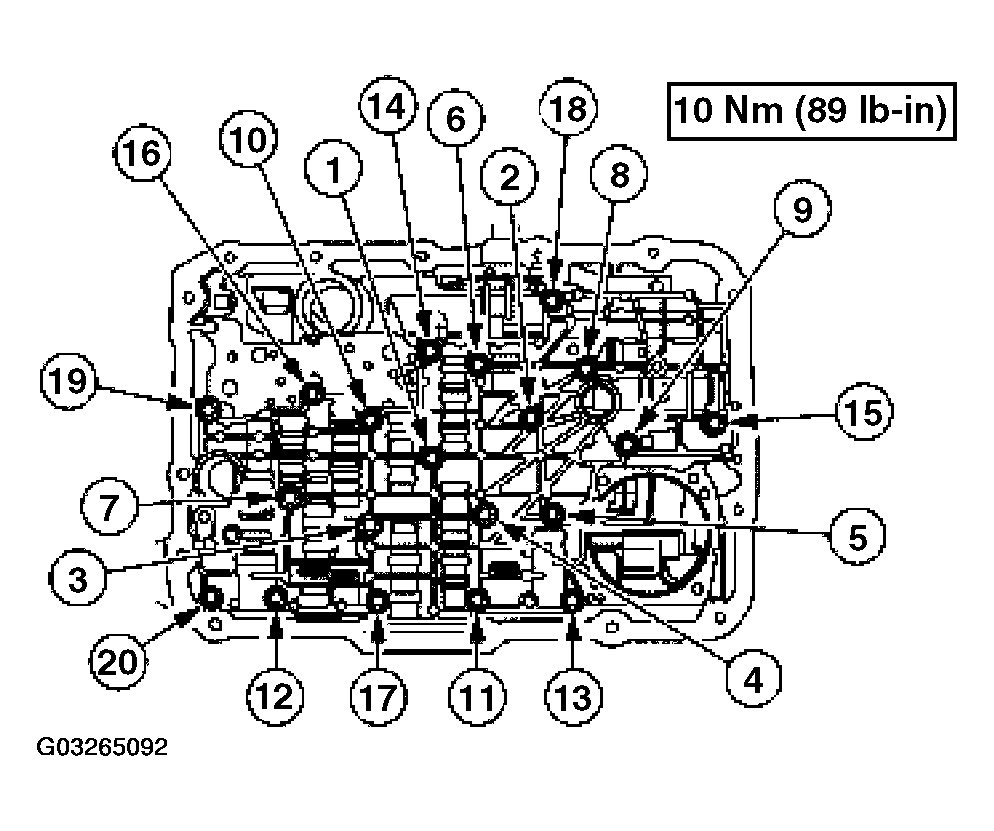

    Fig 3: Tightening Screws In Sequence
    G03265092Courtesy of FORD MOTOR CO.
