Identifying Connector C3036b

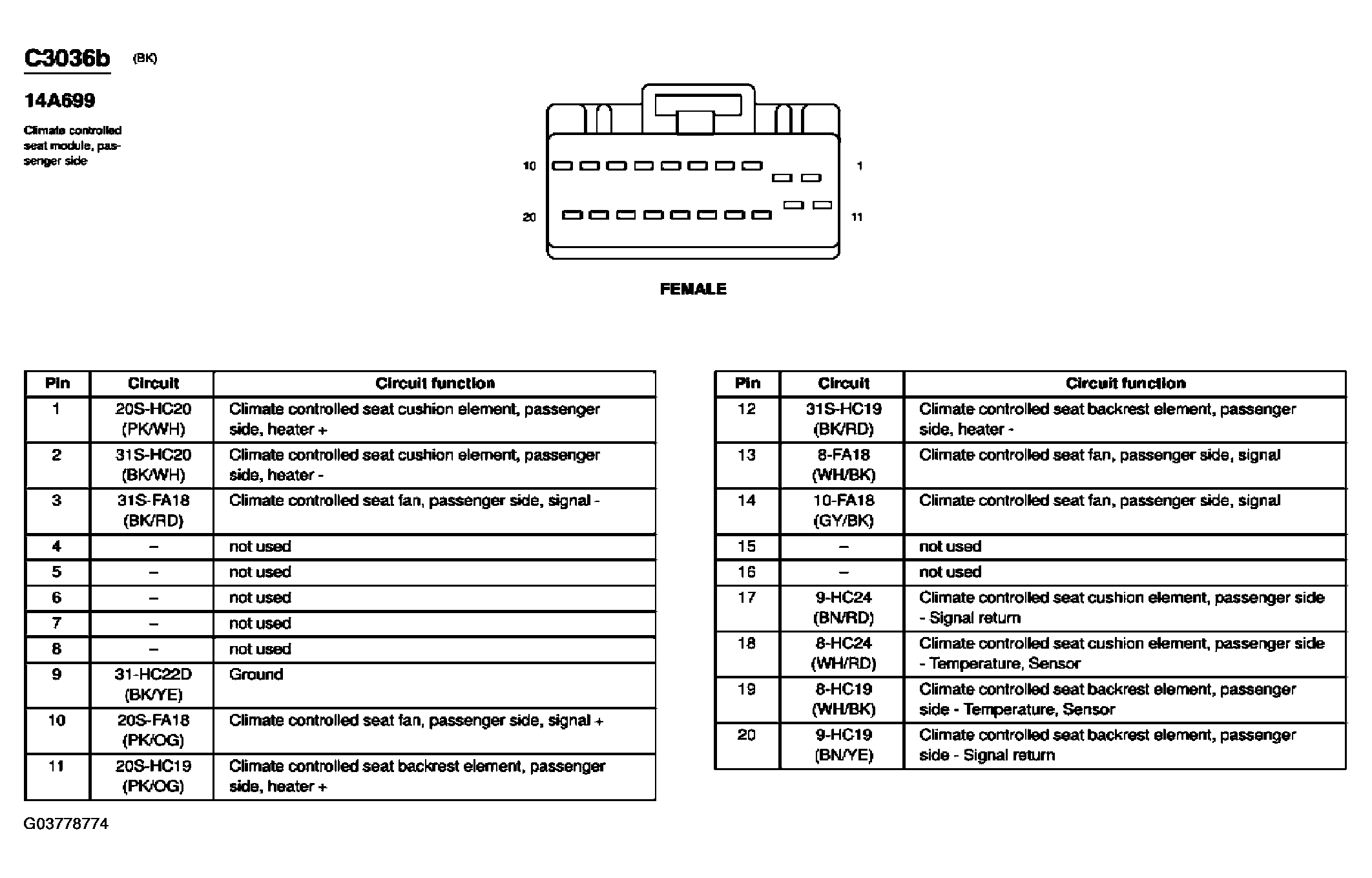

Fig 1: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
G03778774Courtesy of FORD MOTOR CO.
