Identifying Connector C310a

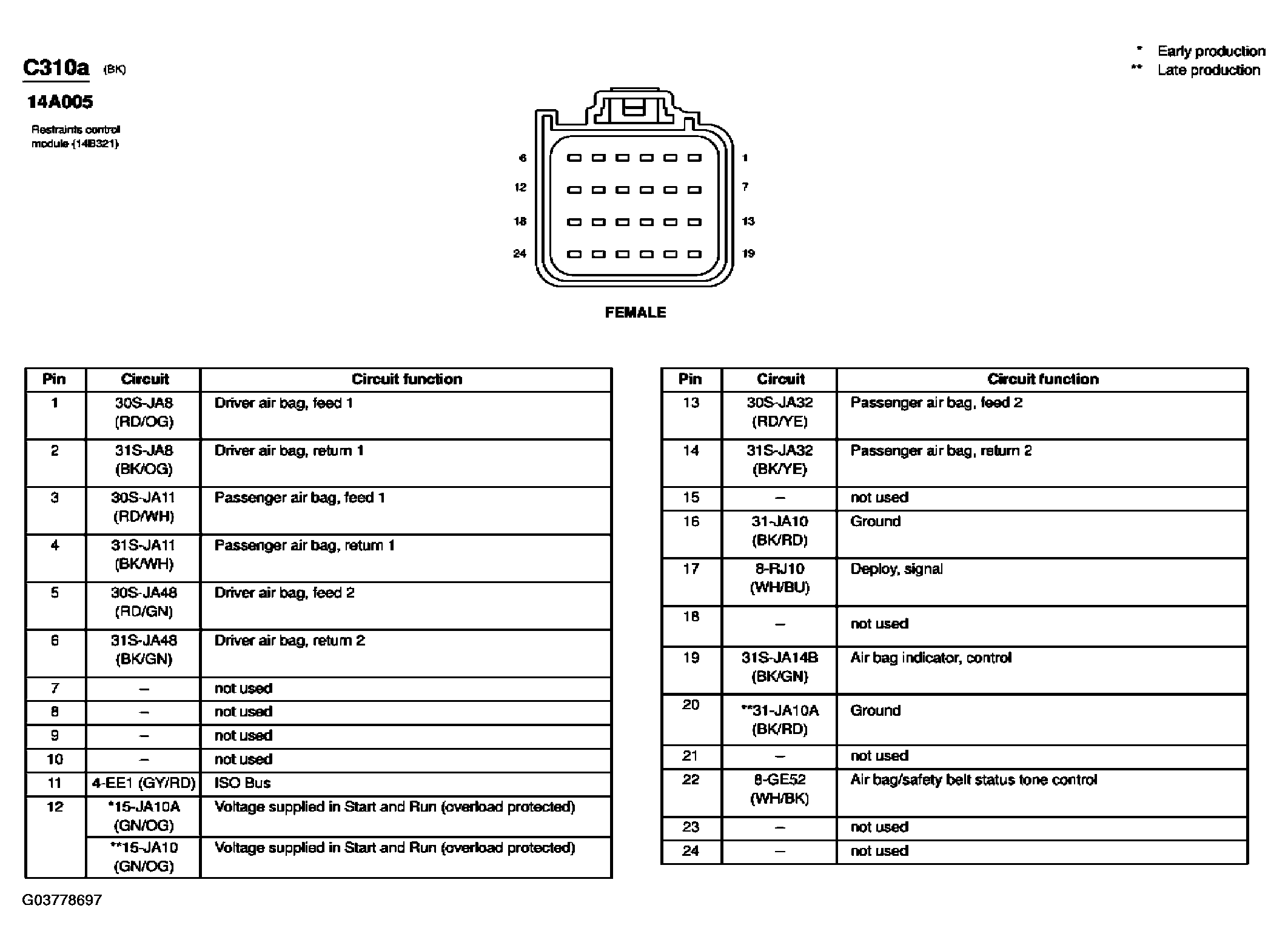

Fig 1: Restraints Control Module Connector End View (C310a)
Courtesy of FORD MOTOR CO.
