Identifying Connector C310b

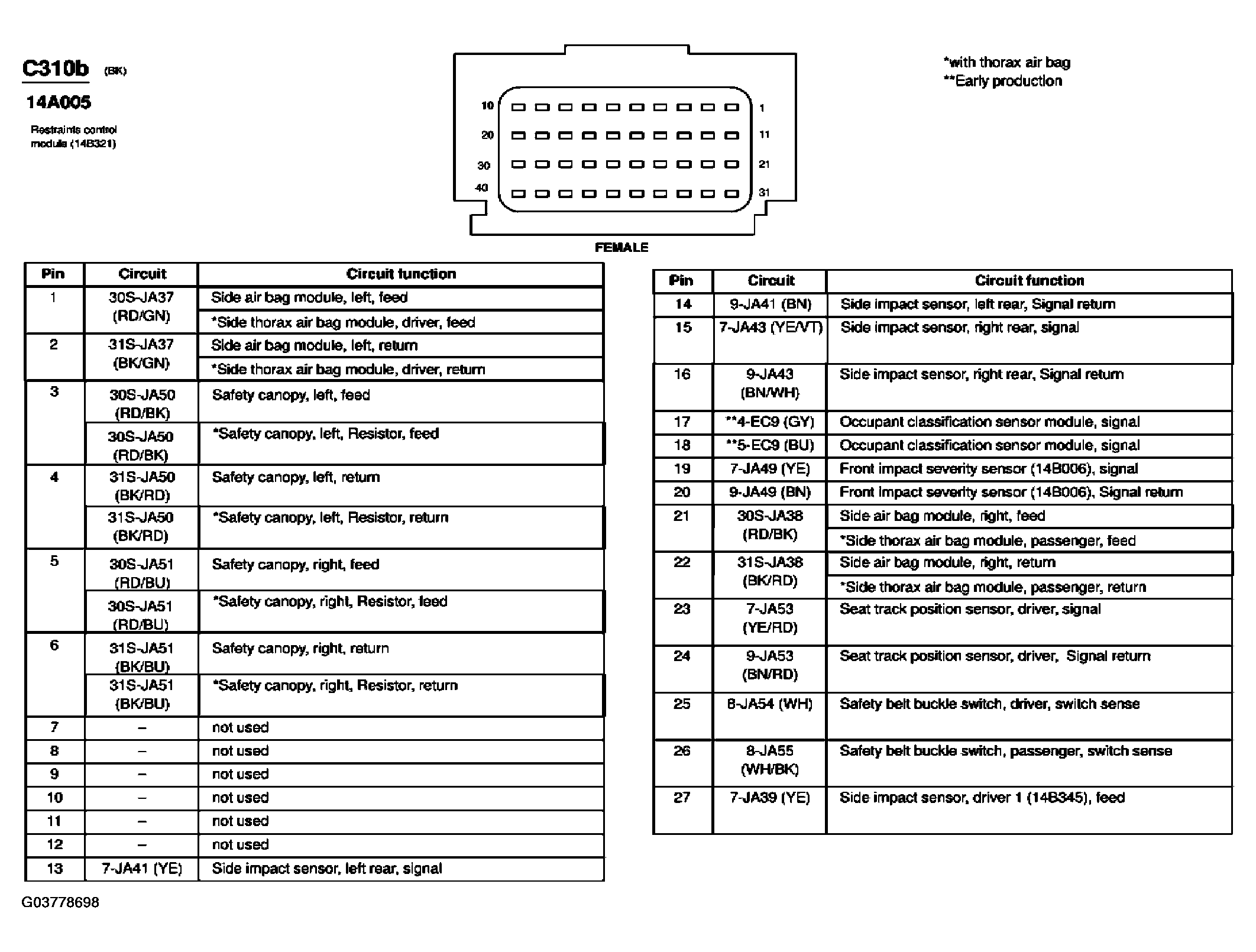

Fig 1: Restraints Control Module Connector End View (C310b) (1 Of 2)
Courtesy of FORD MOTOR CO.

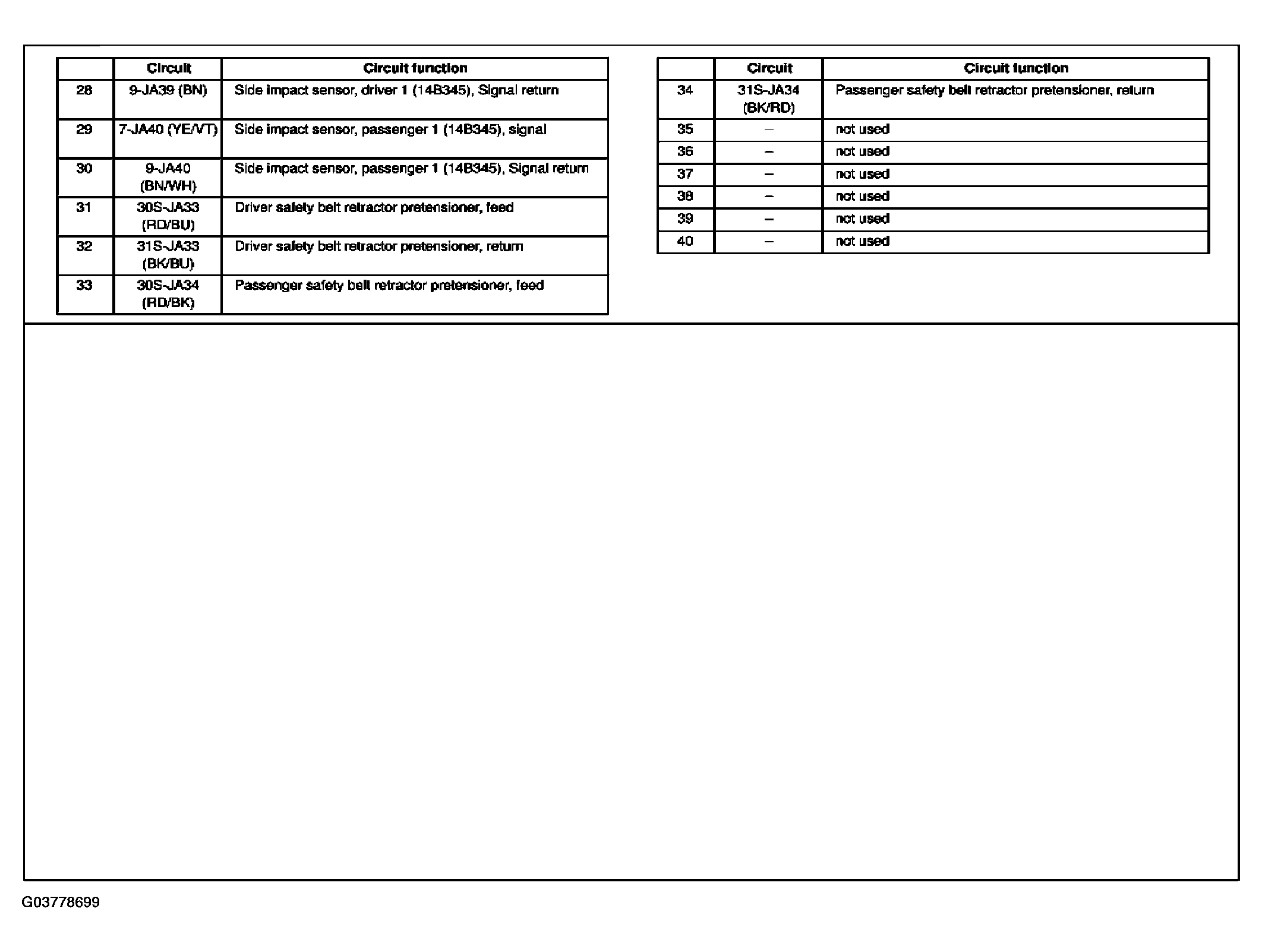

Fig 2: Restraints Control Module Connector End View (C310b) (2 Of 2)
Courtesy of FORD MOTOR CO.
