Identifying Connector C341a

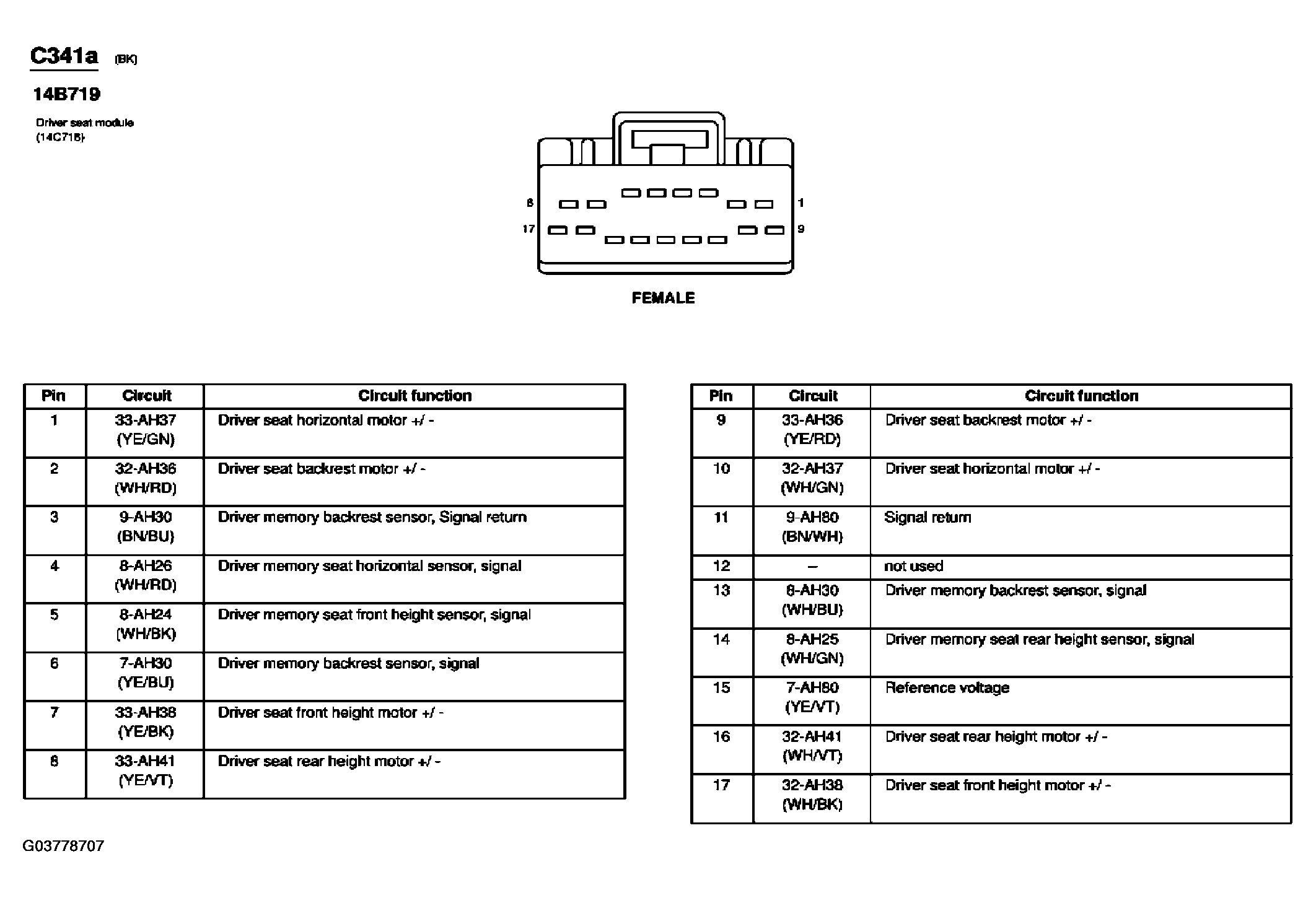

Fig 1: Driver Seat Module Connector End View (C341a)
Courtesy of FORD MOTOR CO.
