Identifying Connector C341c

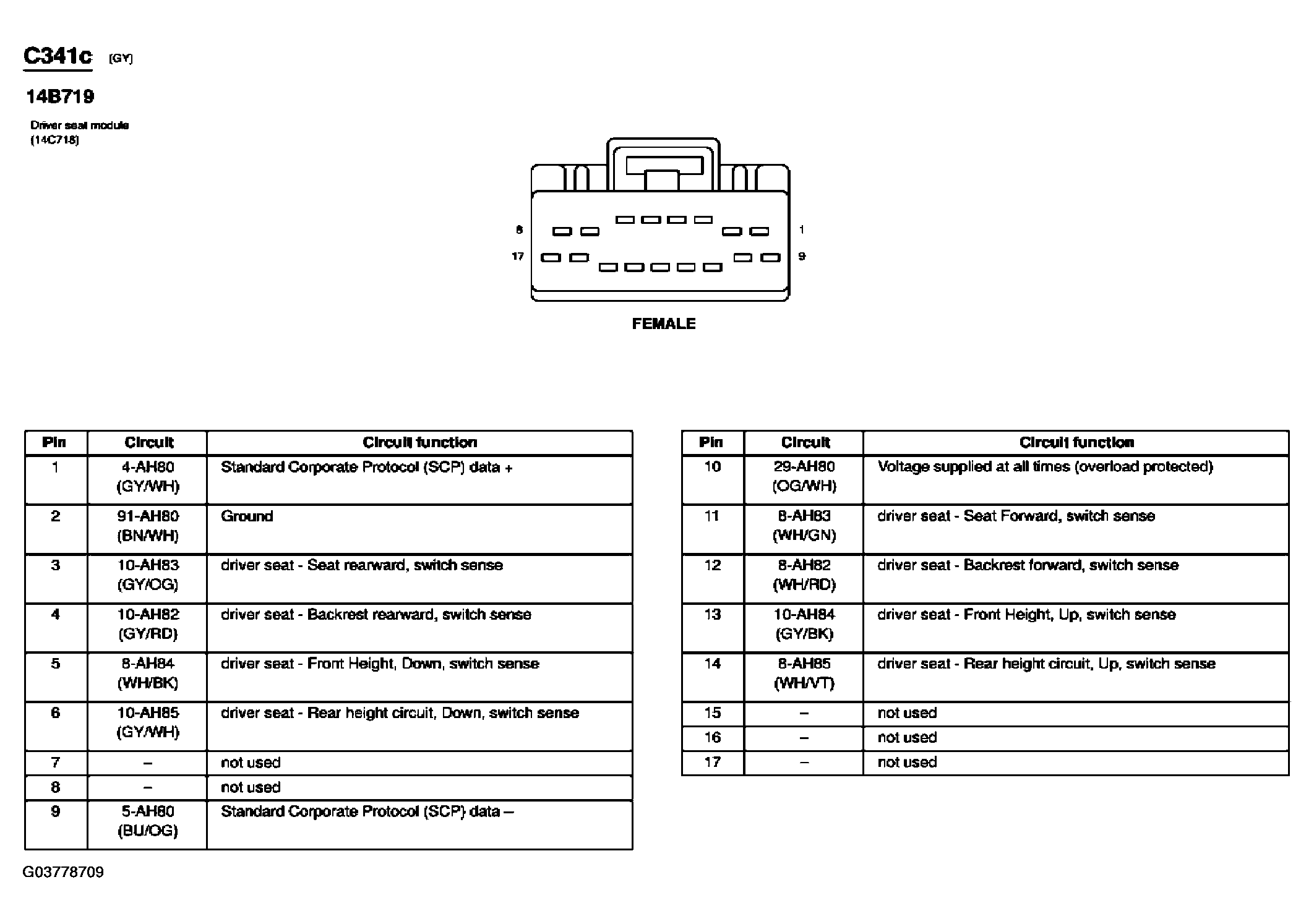

Fig 1: Driver Seat Module Connector End View (C341c)
Courtesy of FORD MOTOR CO.
