Identifying Connector C501c

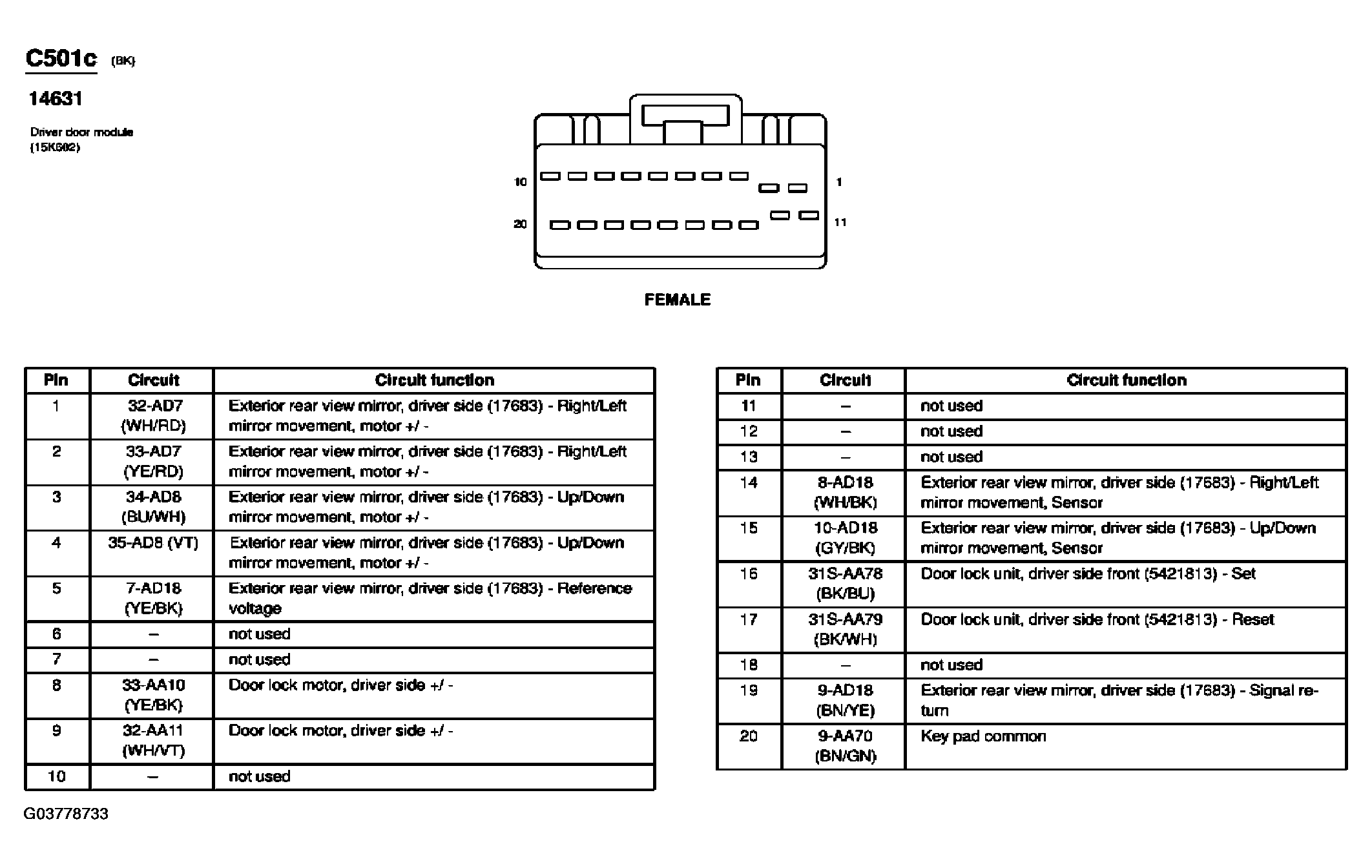

Fig 1: Driver Door Module Connector End View (C501c)
Courtesy of FORD MOTOR CO.
