Identifying Connector C504b

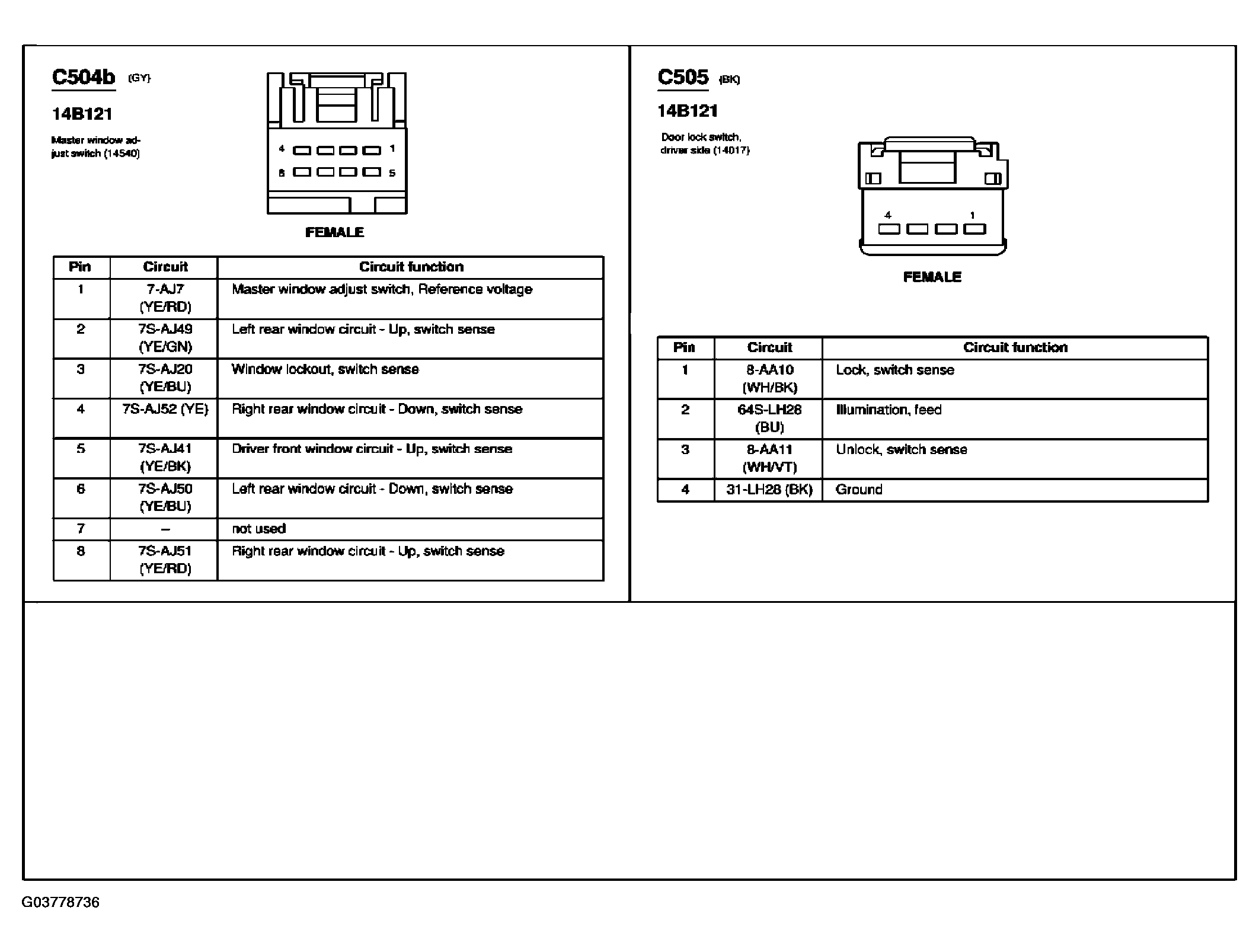

Fig 1: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.
