Control Assembly: Service and Repair

CLIMATE CONTROL ASSEMBLY

REMOVAL

NOTE: If installing a new climate control assembly (DATC module), the new module must be configured for the vehicle.

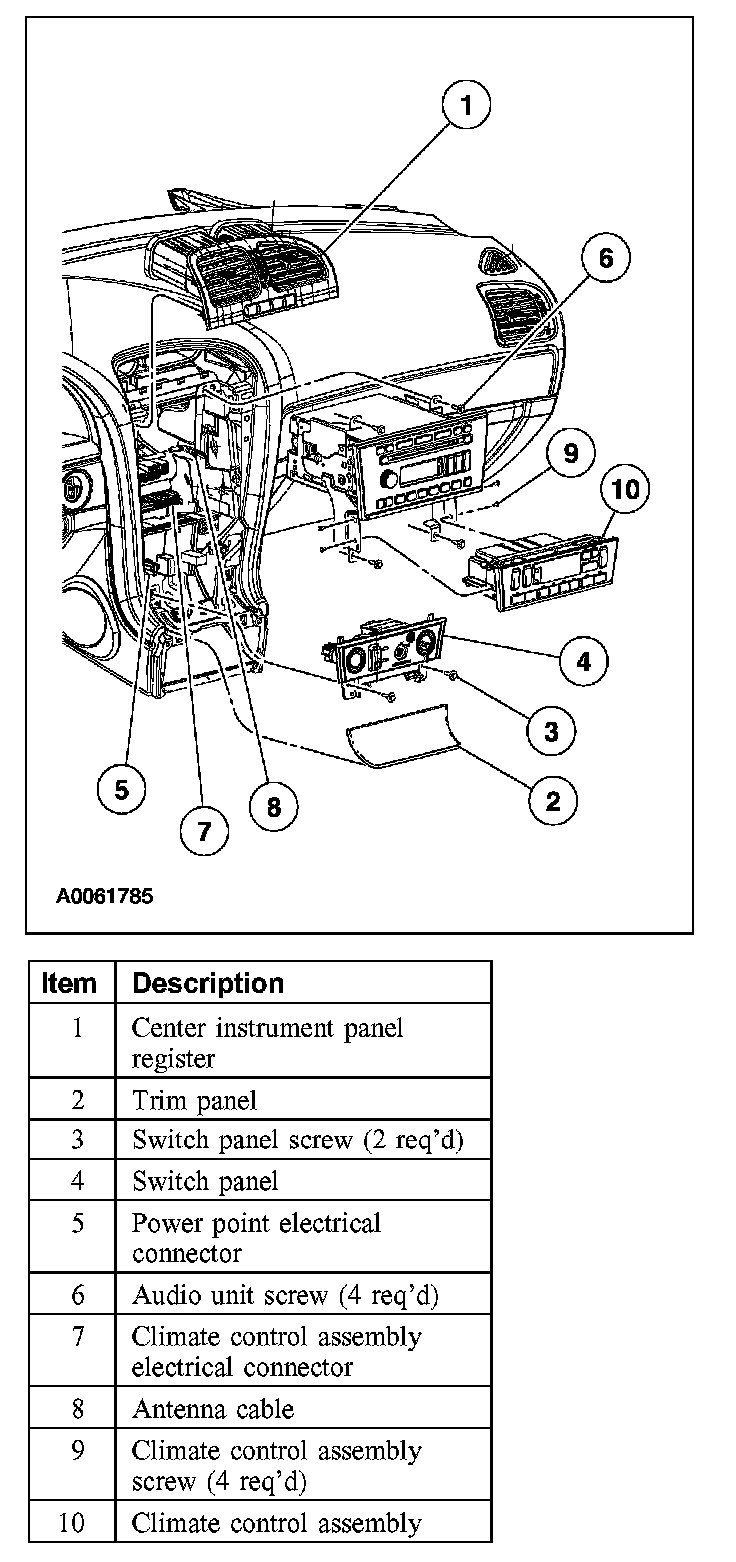

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
