Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> DATC Module C228b
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

DATC Module C228b

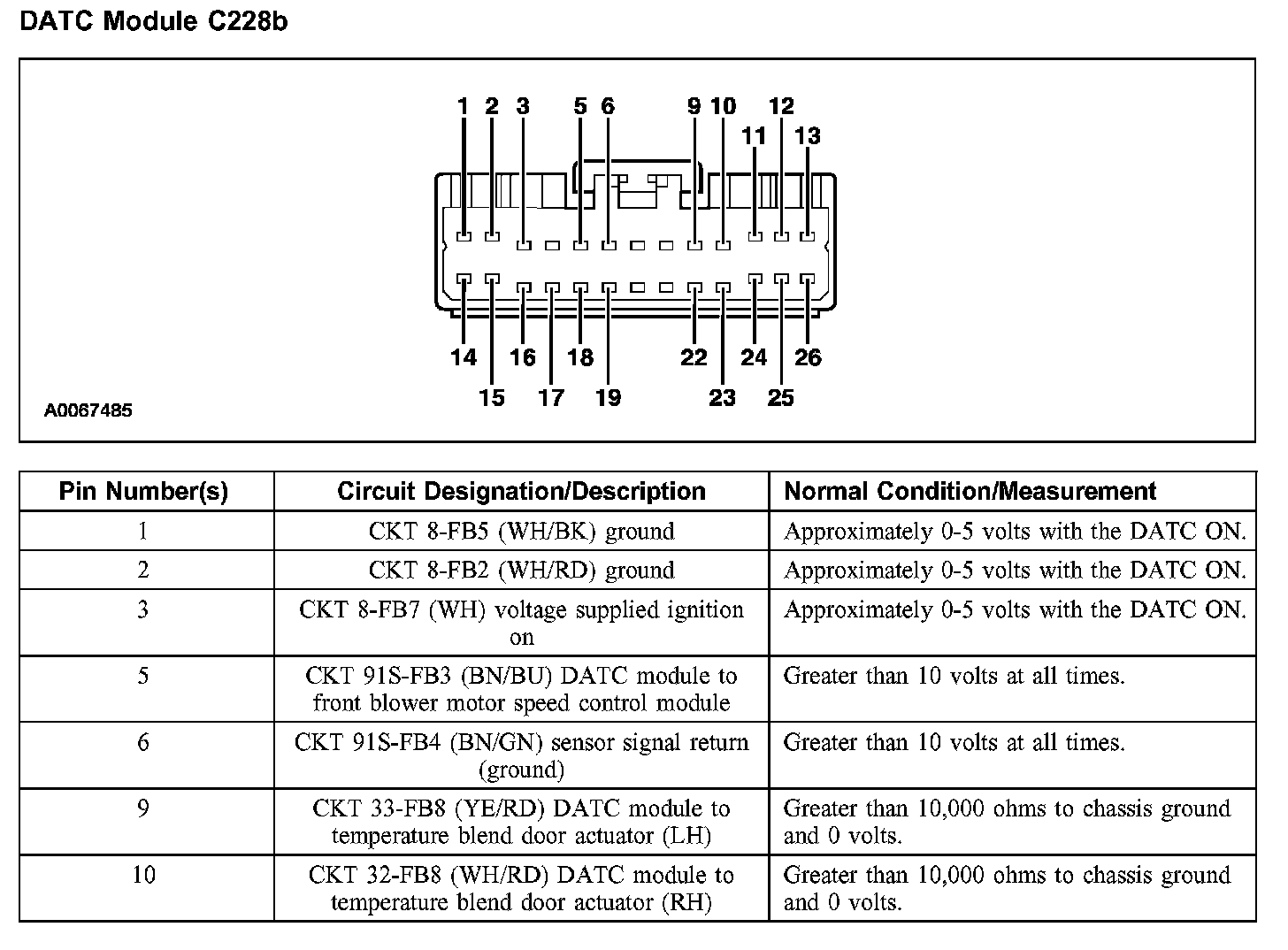

DATC Module C228b, Part 1:

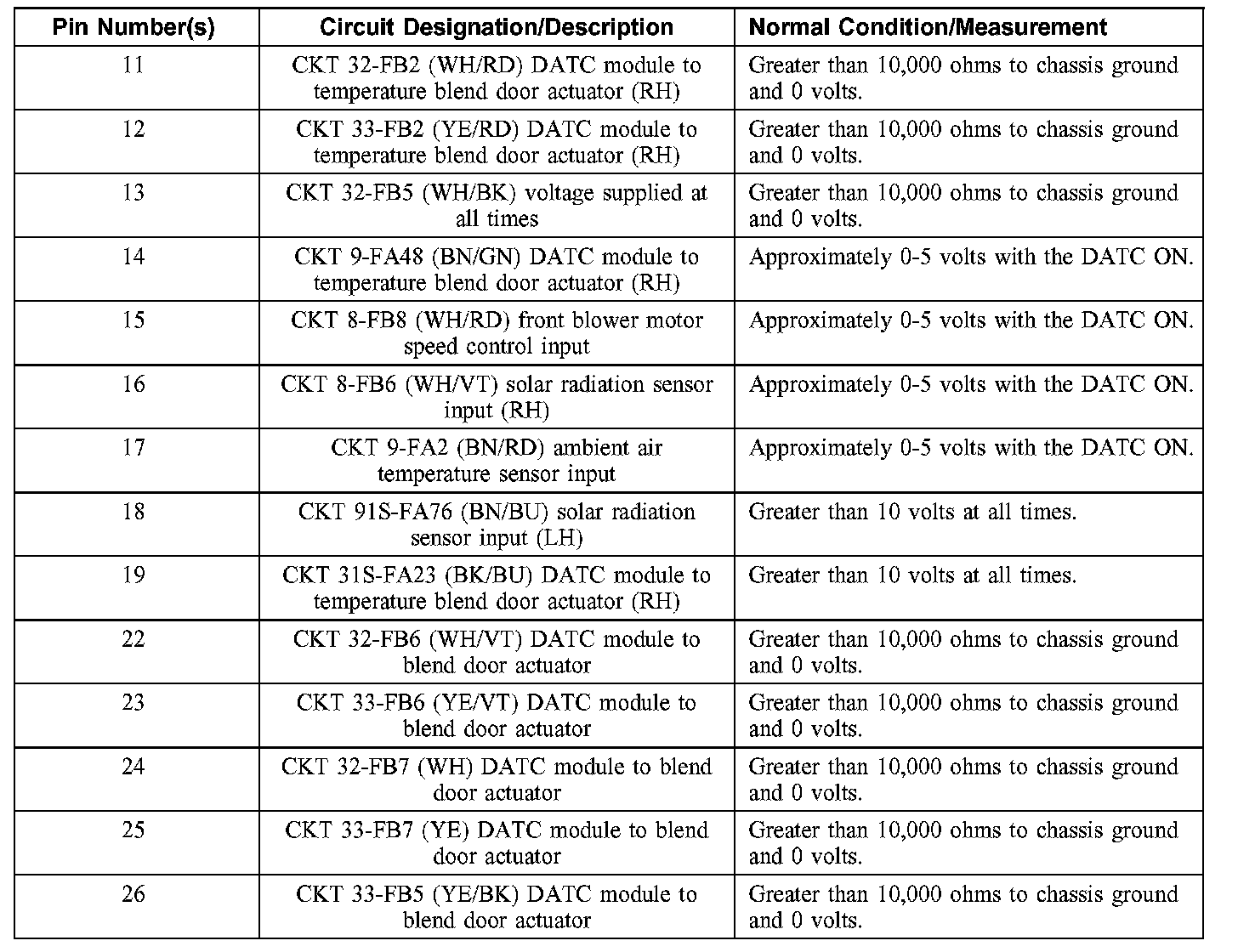

DATC Module C228b, Part 2:
