Camshaft Position Sensor: Service and Repair
CAMSHAFT POSITION SENSORREMOVAL
1. Disconnect the battery ground cable.

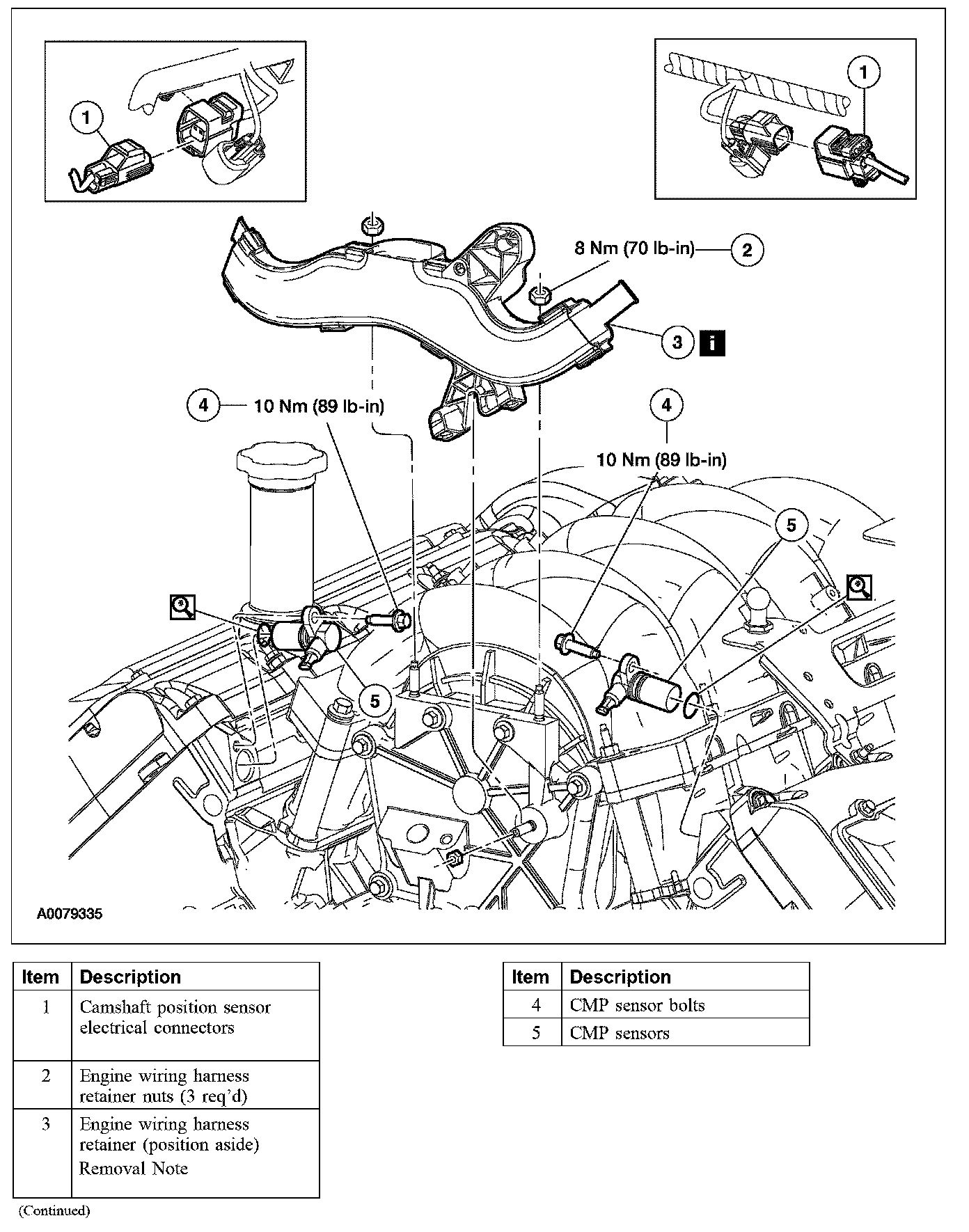

2. Remove the components in the order indicated in the illustration and table.
Item 3: Engine Wiring Harness Retainer Removal Note
1. Remove the ground strap retainer and position the ground strap aside.
INSTALLATION
1. To install, reverse the removal procedure.
