Tests DF: Vehicle Speed Circuit Check



PINPOINT TEST DF: VEHICLE SPEED CIRCUIT CHECK

DF Introduction 1 Of 2:





DF Introduction 2 Of 2:





DF1:





DF2 - DF3:





DF4:





DF5:

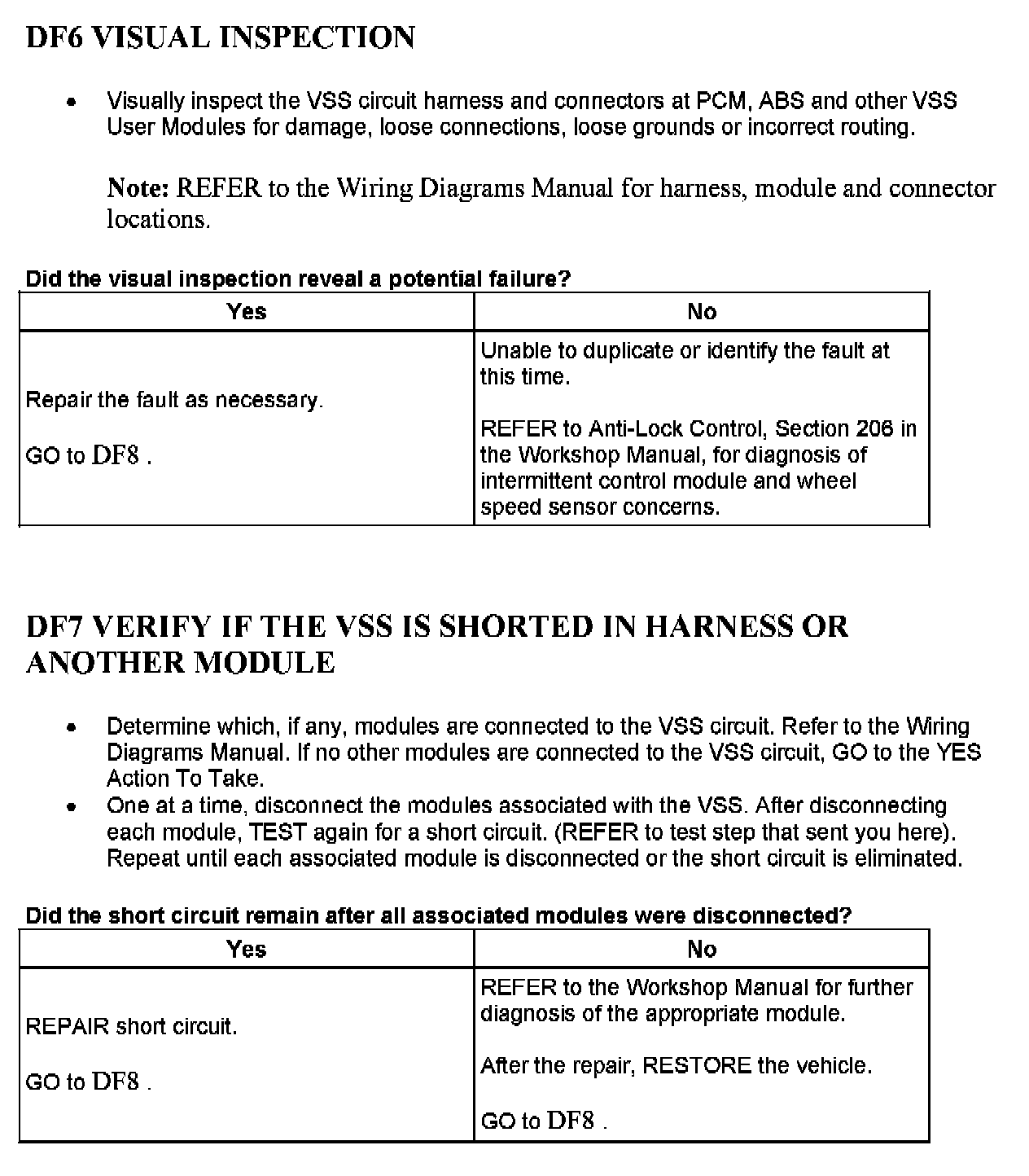

DF6 - DF7:





Df8:
