Electronic Brake Control Module: Service and Repair
Anti-Lock Brake System (ABS) Module1. Disconnect the battery.

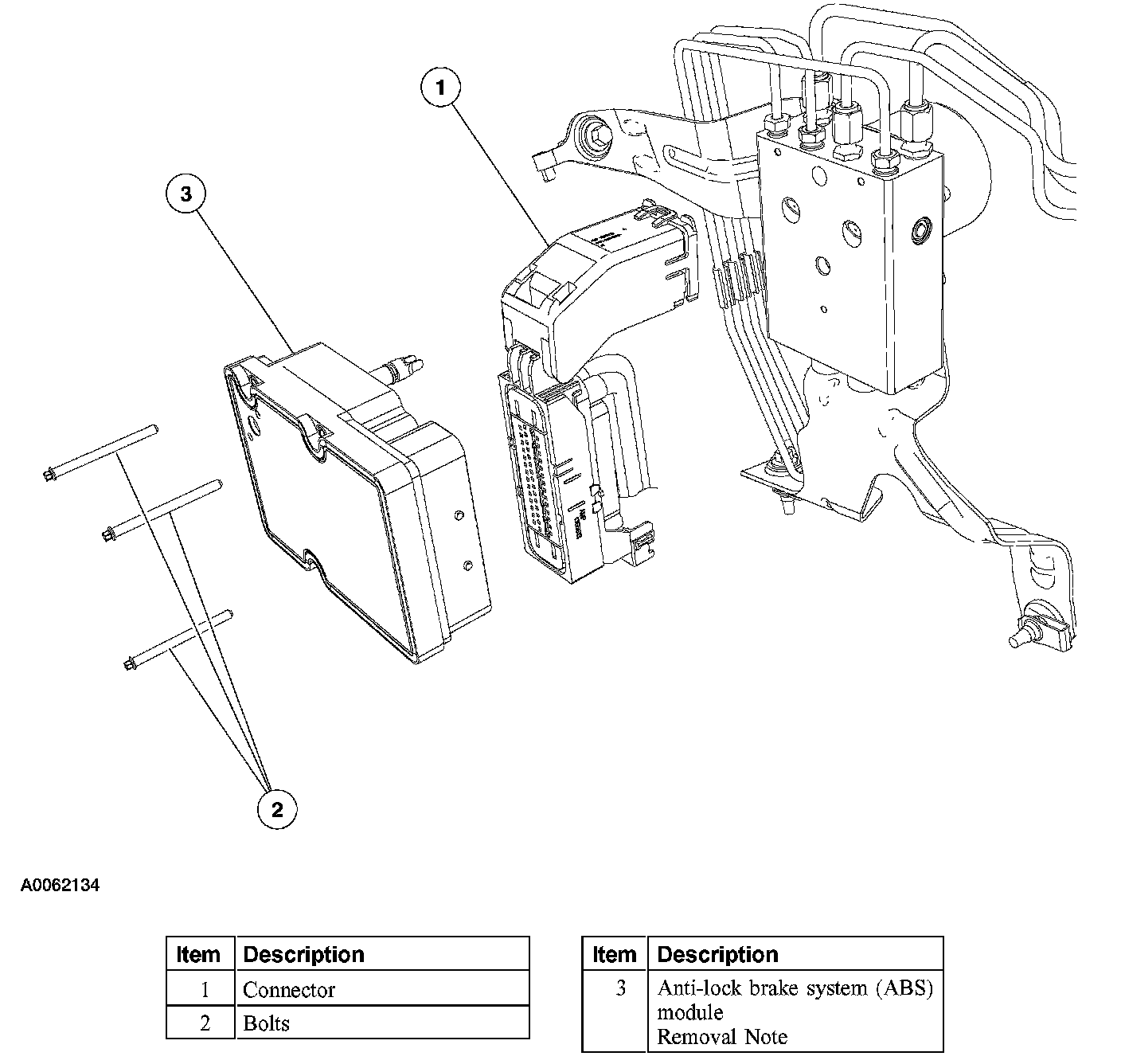

2. Remove the parts in the order indicated in the illustration and table.
3. To install, reverse the removal procedure.
Item 3: Anti-Lock Brake System (ABS) Module Removal Note
1. Position the Battery Junction Box (BJB) aside.
1 Release the clips.
2 Position the BJB aside.
Item 3: Anti-Lock Brake System (ABS) Module Installation Note
1. Use the diagnostic tool to reconfigure the ABS module. For additional information, refer to Information Bus.
