Timing Cover

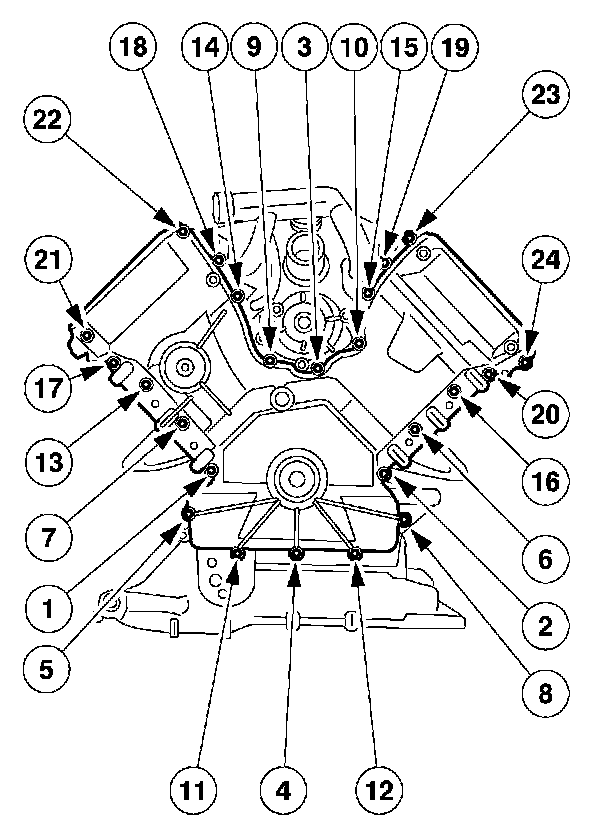

Torque Sequence:





Timing Cover bolts
Stage 1 5 Nm (44 inch lbs.)
Stage 2 10 Nm (89 inch lbs.)
