Speed Control Cable: Installation

Insert the speed control cable slug into the speed control actuator pulley slot.
1. Gently compress the speed control actuator spring.

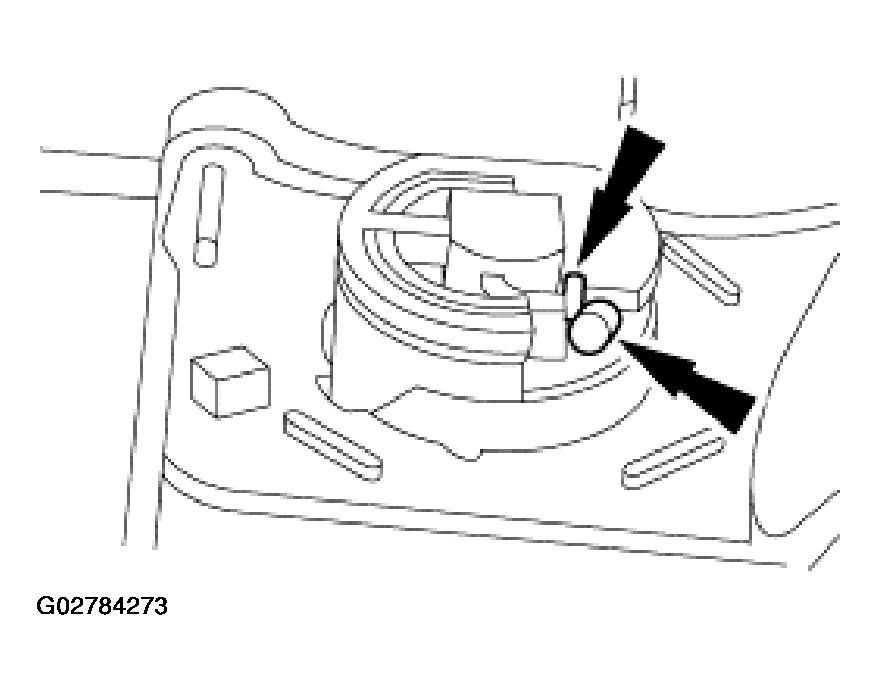

Fig 1: Inserting Speed Control Cable Slug Into Speed Control Actuator Pulley Slot
Courtesy of FORD MOTOR CO.

NOTE: Make sure the rubber seal is fully seated onto the speed control actuator cable cap.

NOTE: Incorrect wrapping of the speed control actuator cable around the speed control actuator pulley may result in a high idle condition.

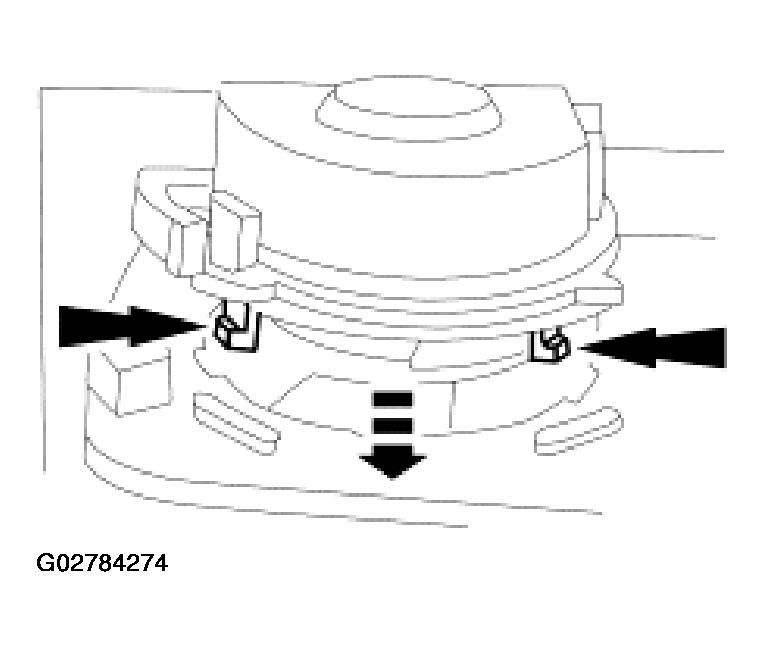

Fig 2: Releasing Compressed Spring While Aligning Cap Tabs With Speed Control Actuator Housing

Courtesy of FORD MOTOR CO.

Release the compressed spring while aligning the speed control actuator cable cap tabs with the slots in the speed control actuator housing.
Rotate the speed control actuator cable cap until the locking arm engages.

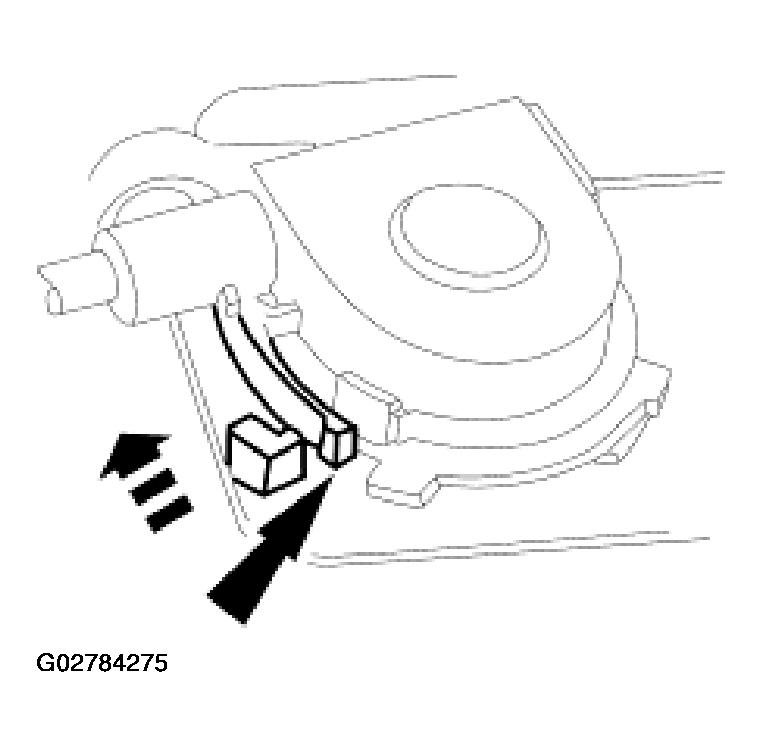

Fig 3: Rotating Speed Control Actuator Cable Cap Until Locking Arm Engages
Courtesy of FORD MOTOR CO.

NOTE: Make sure the speed control cable is installed to all cable retainer clips.

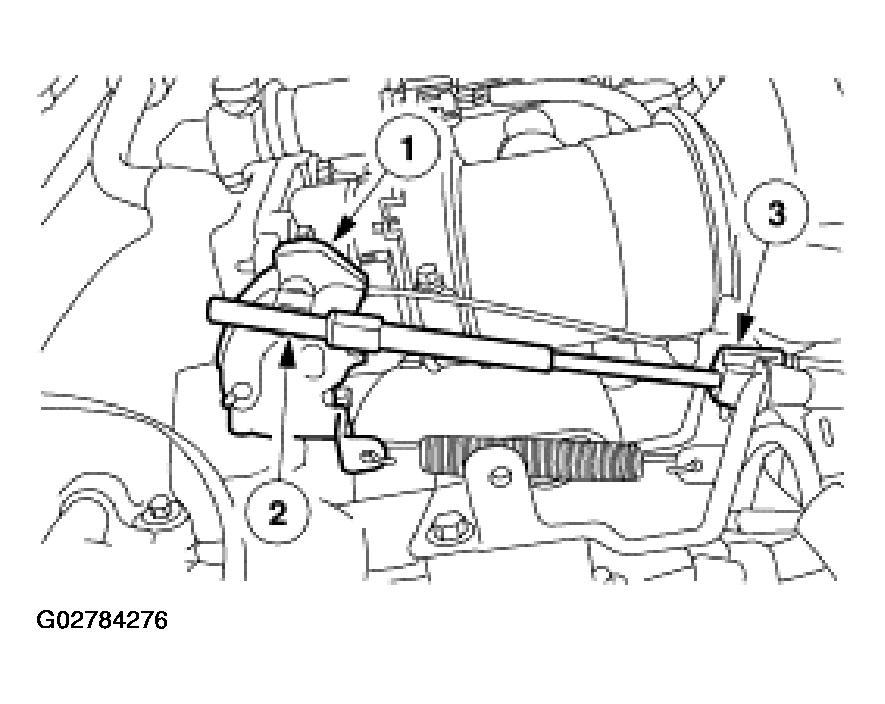

Fig 4: Installing Speed Control Actuator Cable

Courtesy of FORD MOTOR CO.

Install the speed control actuator cable.
1. Open the throttle valve.
2. Install the speed control cable to the throttle valve.
3. Install the speed control cable to the bracket.
Install the accelerator splash shield.
- Install the bolts.

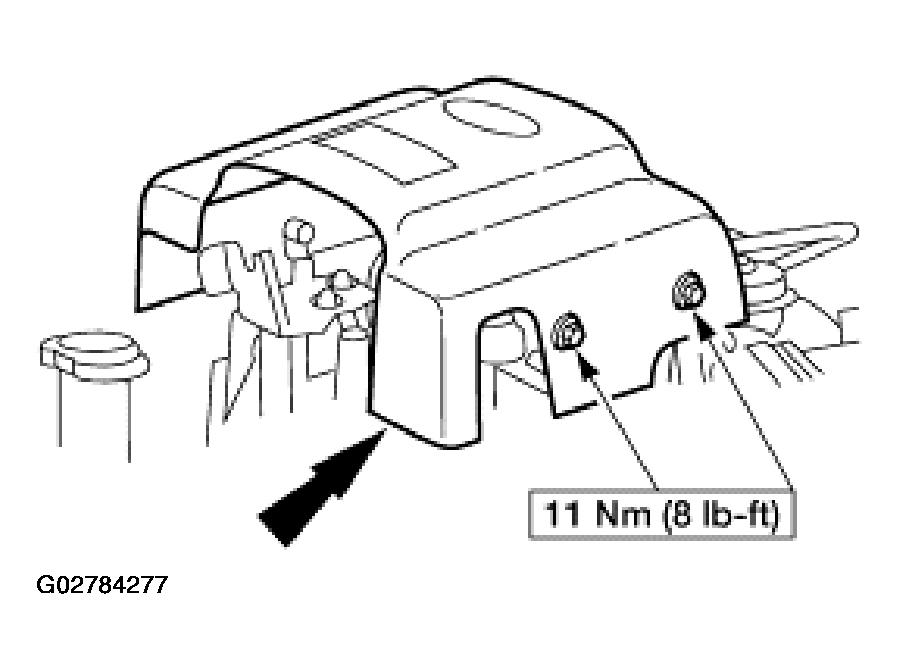

Fig 5: Installing Accelerator Splash Shield
Courtesy of FORD MOTOR CO.
