Speed Control Cable: Removal

NOTE: 5.4L 2-valve Triton V8 shown; others are similar.
  1. Remove the bolts and the accelerator control splash shield.

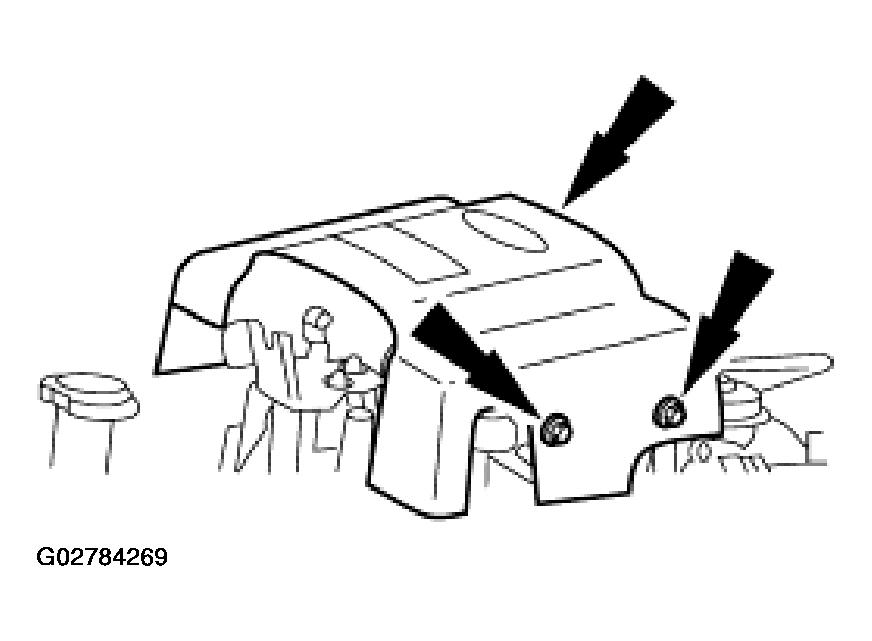

    Fig 1: Removing Accelerator Control Splash Shield
    G02784269Courtesy of FORD MOTOR CO.
  2. Remove the speed control actuator cable.
    1. Open the throttle valve.
    2. Slide the throttle cable back to remove it from the throttle cam nail head.
    3. Squeeze the speed control actuator cable tabs and remove from the accelerator bracket.

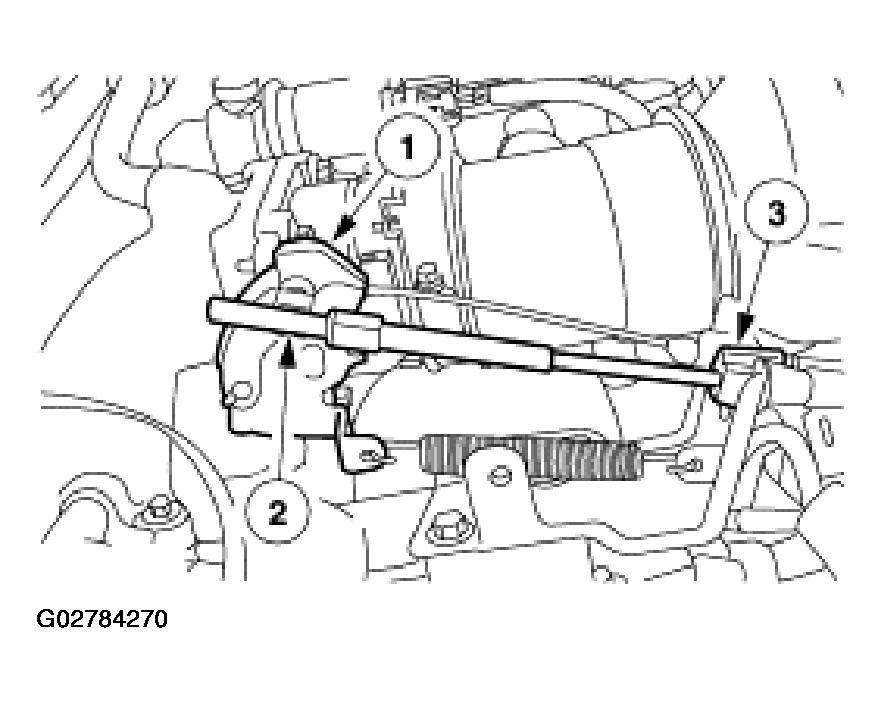

    Fig 2: Removing Speed Control Actuator Cable
    G02784270Courtesy of FORD MOTOR CO.
  3. Remove the speed control actuator cable cap from the speed control actuator.
    1. Push in the locking arm on the speed control actuator cable cap.
    2. Rotate the speed control actuator cable cap counterclockwise.

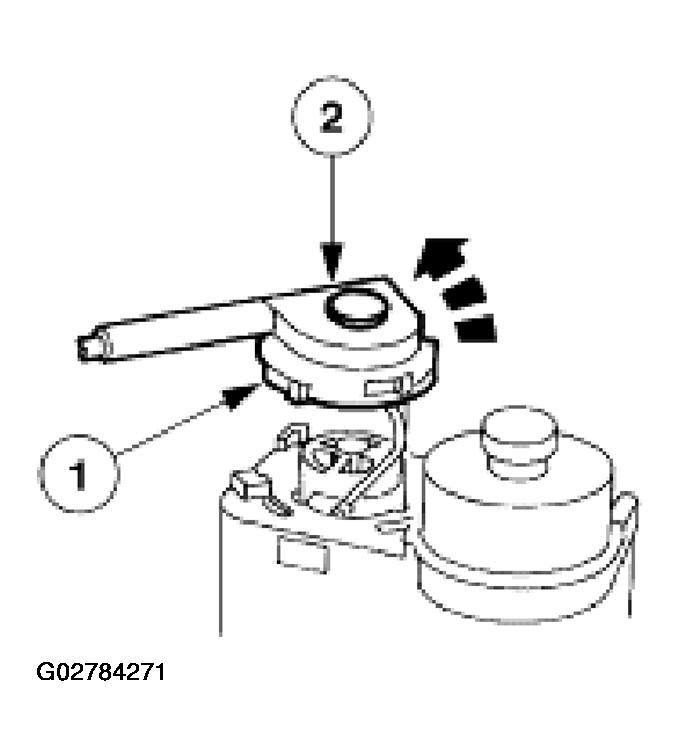

    Fig 3: Removing Speed Control Actuator Cable Cap From Speed Control Actuator
    G02784271Courtesy of FORD MOTOR CO.
  4. Remove the speed control actuator cable.
    1. Press the spring retainer.
    2. Slide the core wire end out of the speed control actuator pulley and remove the speed control actuator cable.

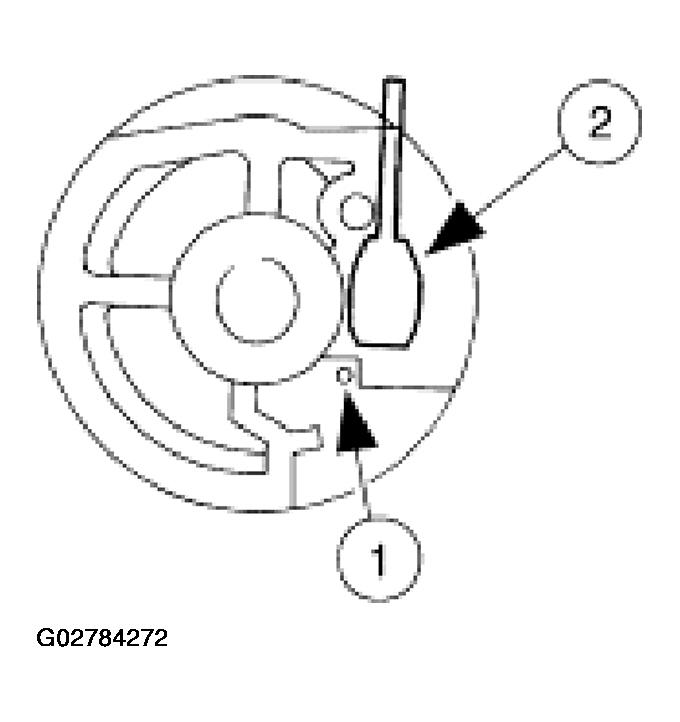

    Fig 4: Removing Speed Control Actuator Cable
    G02784272Courtesy of FORD MOTOR CO.
  5. Remove the cable from the retainer clips.
