Removal and Installation

  1. Remove the driver side air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the speed control actuator switch.
    1. Release the four (A) speed control actuator switch clips and remove the (B) speed control actuator switch.
    2. Disconnect the speed control actuator switch electrical connector.

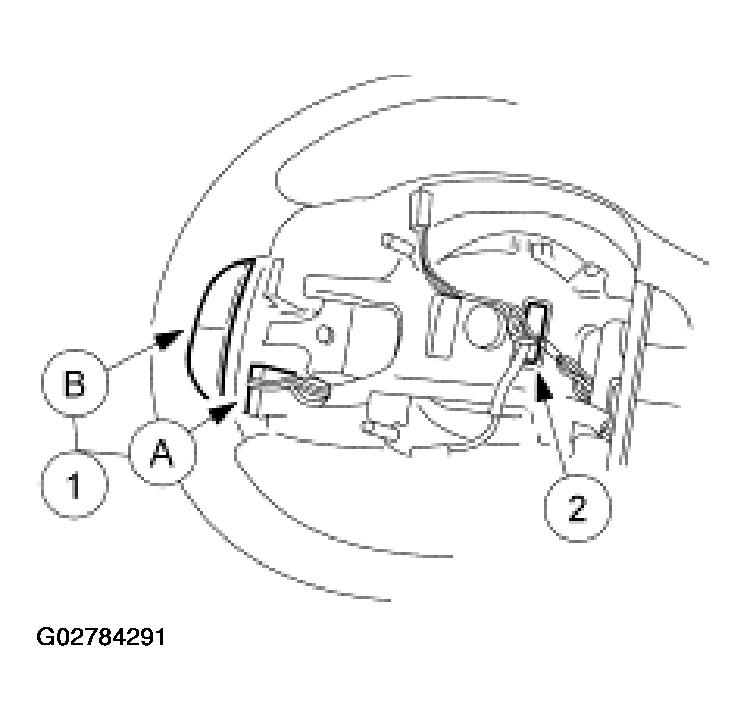

    Fig 1: Removing Speed Control Actuator Switch
    G02784291Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
