Forward Clutch Assembly, Disassembled View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Forward Clutch Assembly, Disassembled View

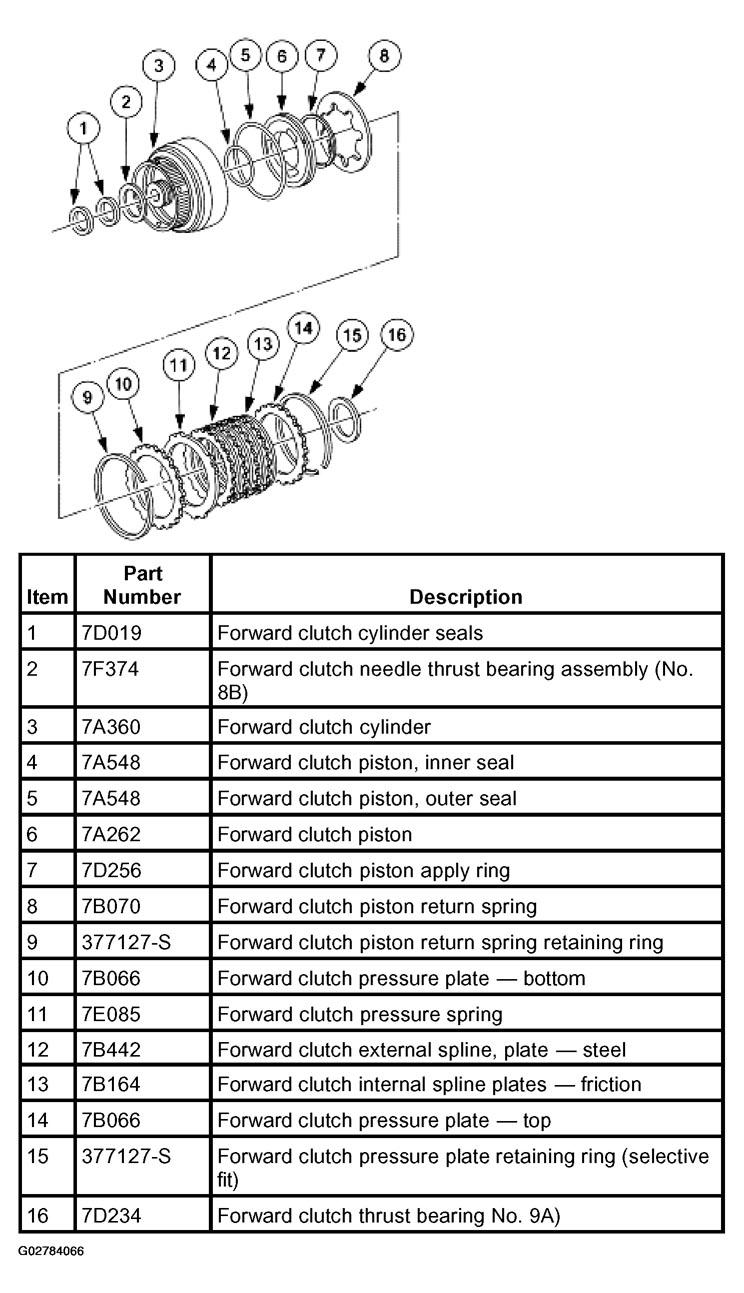

Fig 1: Exploded View Of Forward Clutch Assembly
Courtesy of FORD MOTOR CO.
