Removal and Installation

Remove the rear seat bottom. For additional information, refer to SEATING .
Disconnect the rear wheel speed sensor electrical connector.

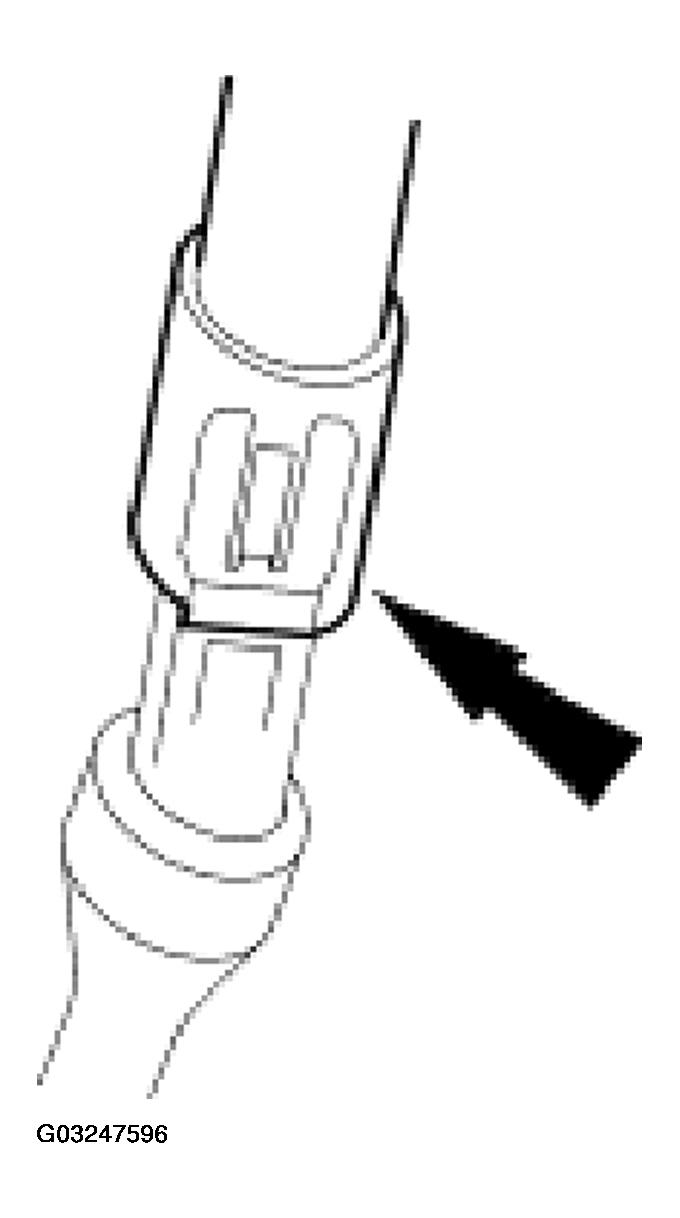

Fig 1: Disconnecting Rear Wheel Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Push the sensor harness grommet through the passenger compartment floor.

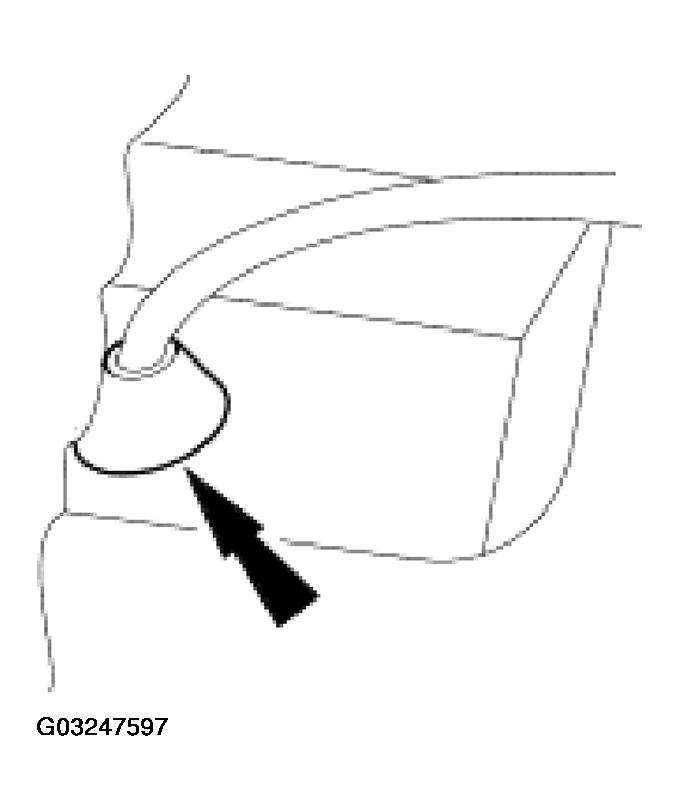

Fig 2: Pushing Sensor Harness Grommet Through Passenger Compartment Floor
Courtesy of FORD MOTOR CO.

WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking, or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations. Failure to follow these instructions may result in personal injury.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
Disconnect the routing clips.

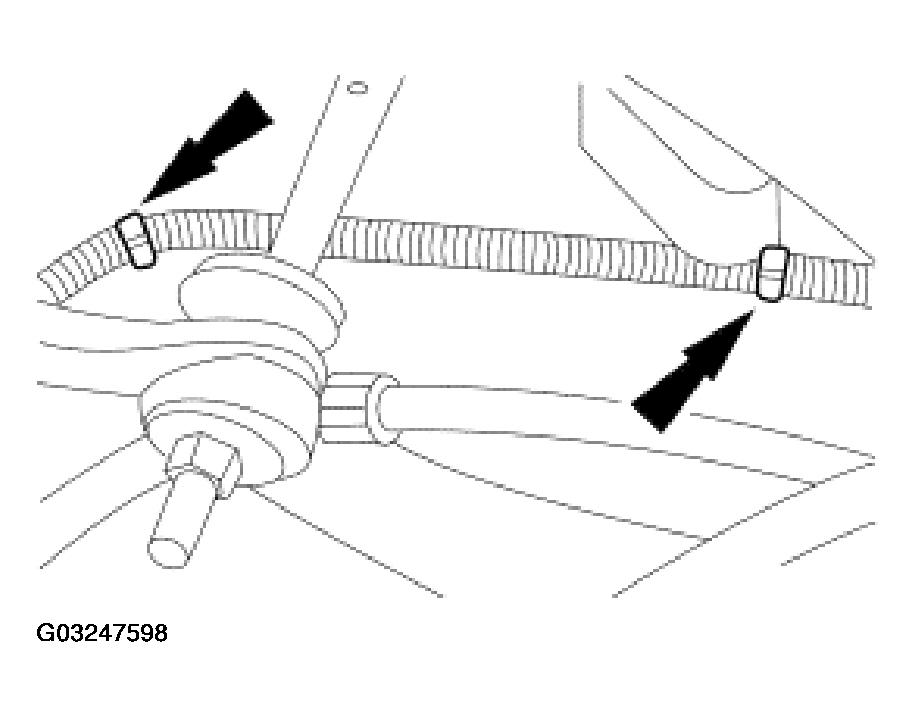

Fig 3: Disconnecting Routing Clips
Courtesy of FORD MOTOR CO.
Remove the rear wheel speed sensor.
1. Remove the bolt.
2. Remove the sensor.

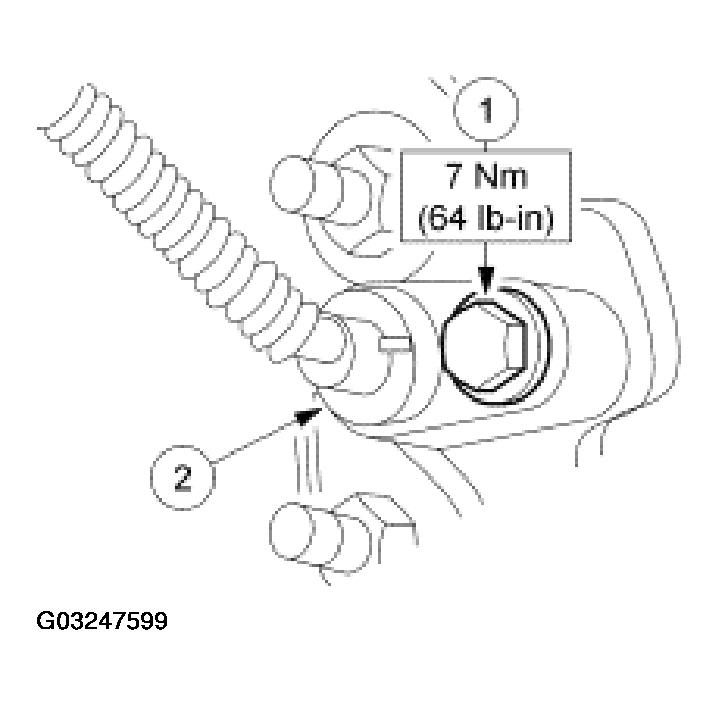

Fig 4: Removing Rear Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
