Piston - Selection

NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

Select a piston size based on the cylinder bore.

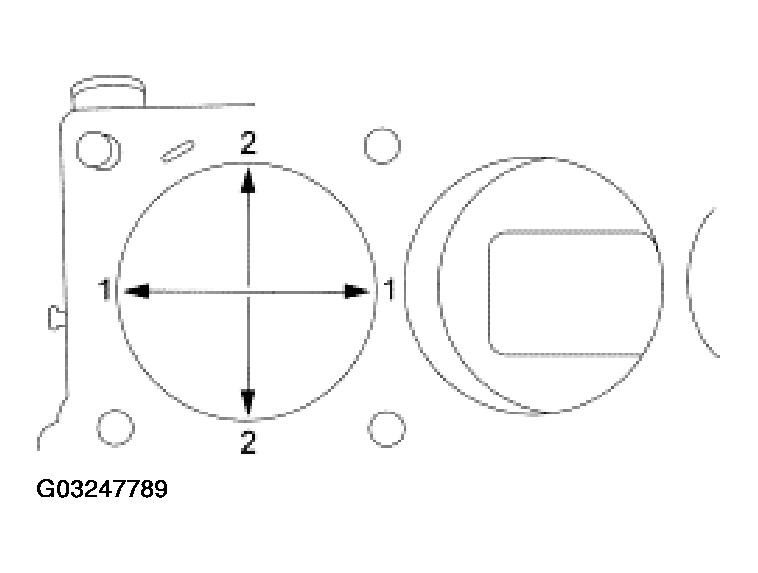

Fig 1: Selecting A Piston Size Based On Cylinder Bore
Courtesy of FORD MOTOR CO.

NOTE: For precision fit, new pistons are divided into three categories (grade sizes). A paint spot on the new pistons indicates the grade size. Choose the piston with the correct paint color after measuring the cylinder bore diameter.

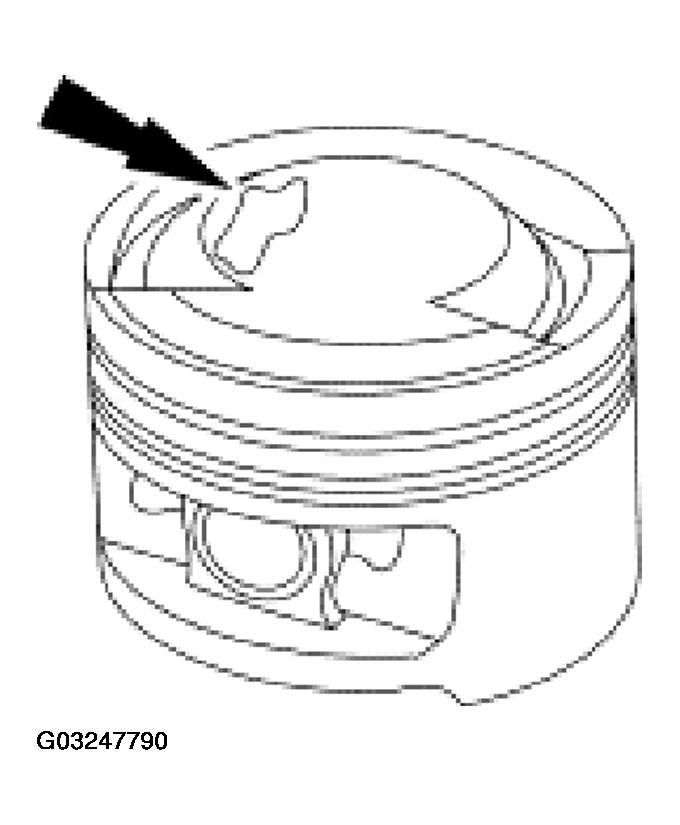

Fig 2: Locating Piston Paint Color

Courtesy of FORD MOTOR CO.

Choose the piston with the correct paint color.
- Refer to ENGINE for the procedure.
