Planetary Gear Support Assembly And Planetary One-Way Clutch: Notes

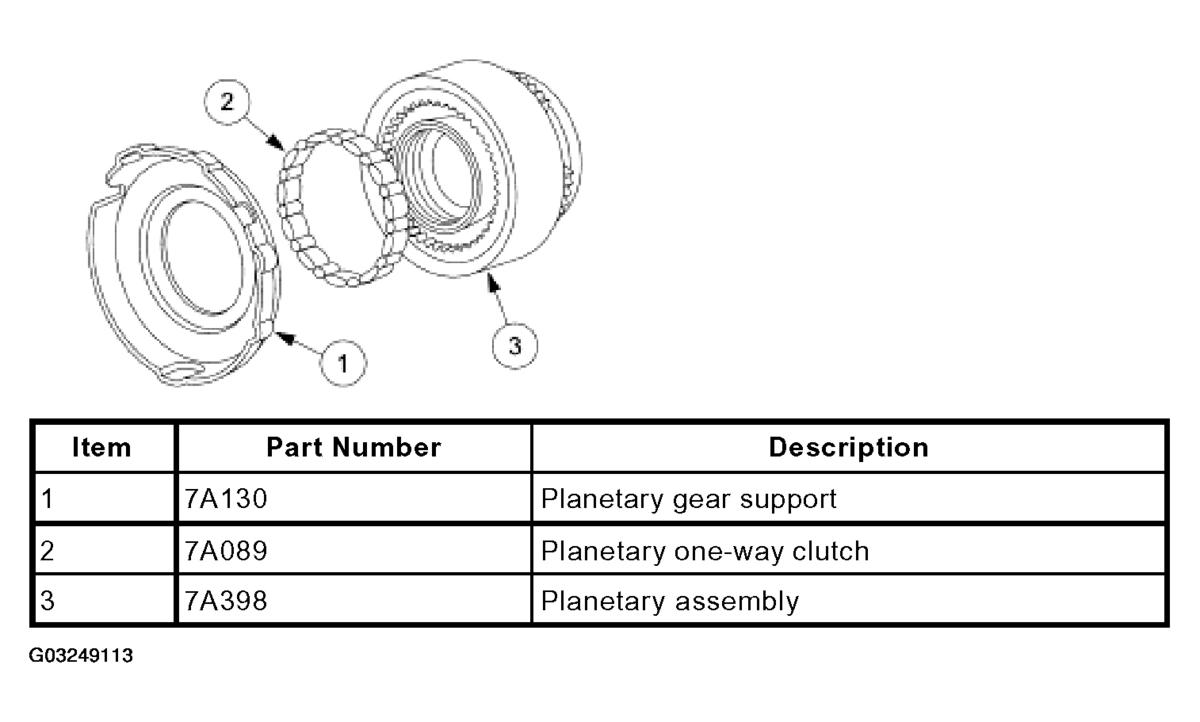

Fig 1: Identifying Planetary Gear Support Assembly And Planetary One-Way Clutch Components
G03249113Courtesy of FORD MOTOR CO.
