Audio Amplifier: Notes

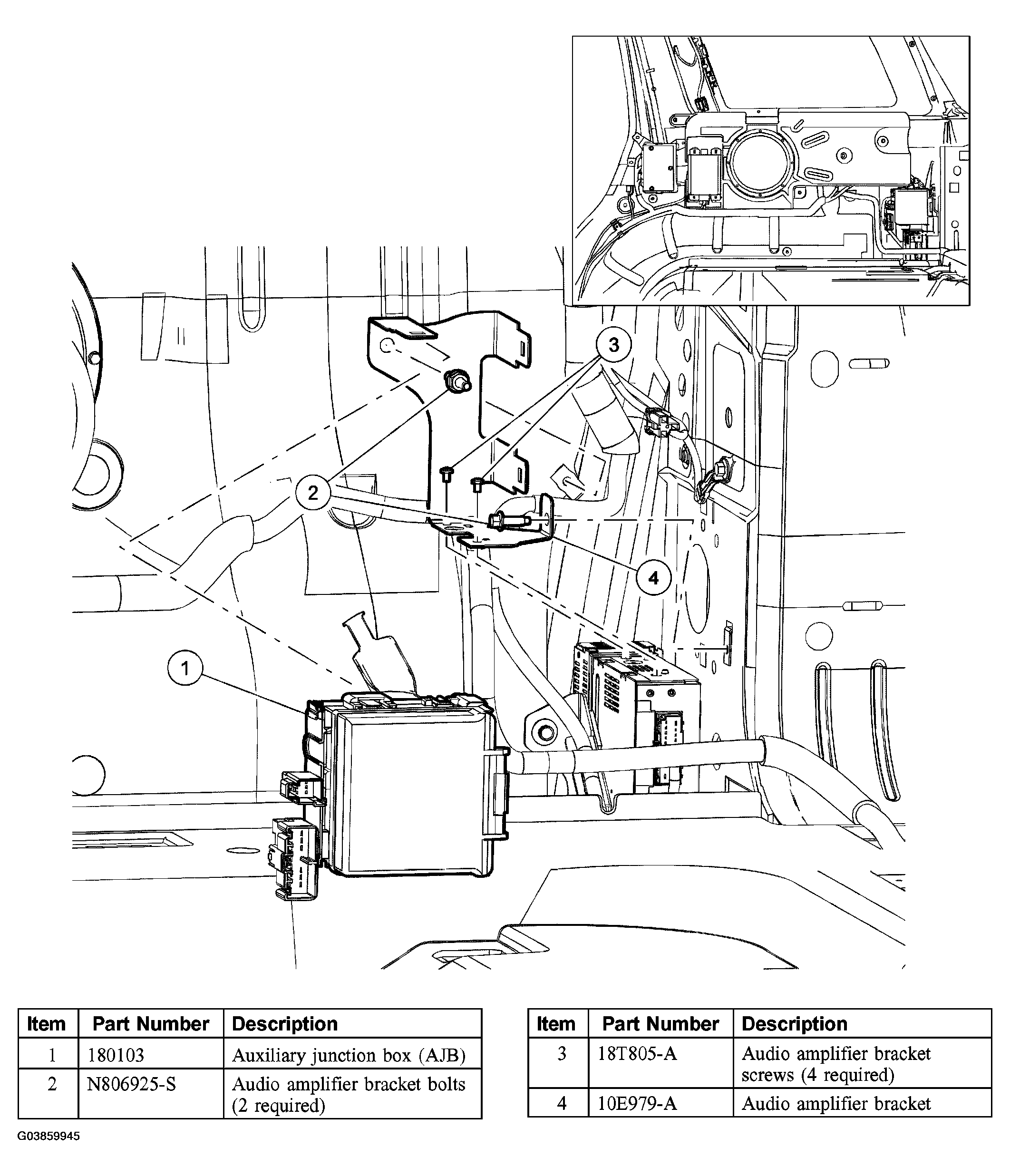

Fig 1: Identifying Audio Amplifier Components (1 Of 2)
G03859945Courtesy of FORD MOTOR CO.

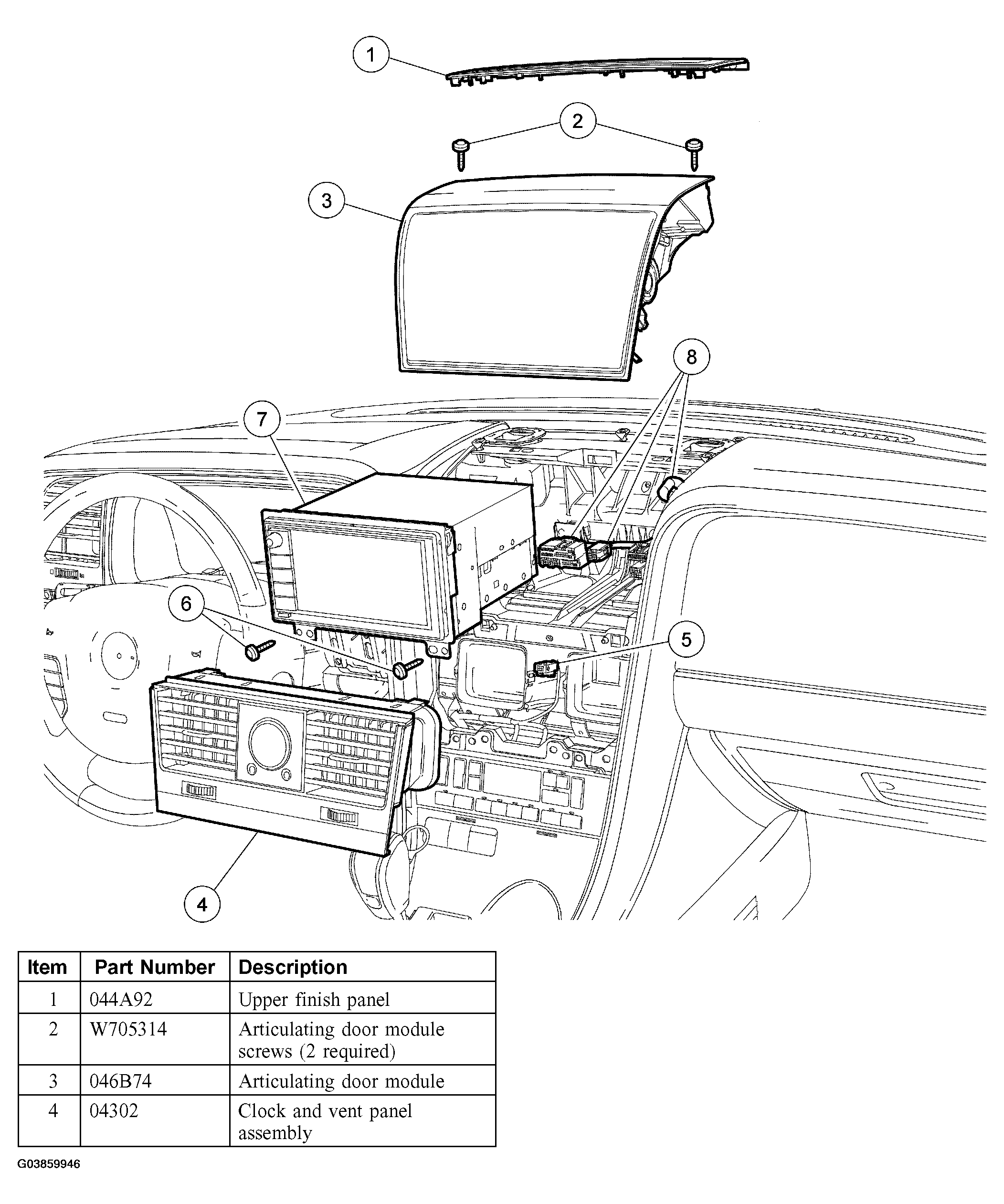

Fig 2: Identifying Audio Amplifier Components (2 Of 2)
G03859946Courtesy of FORD MOTOR CO.
