Body Support - Number 4: Notes

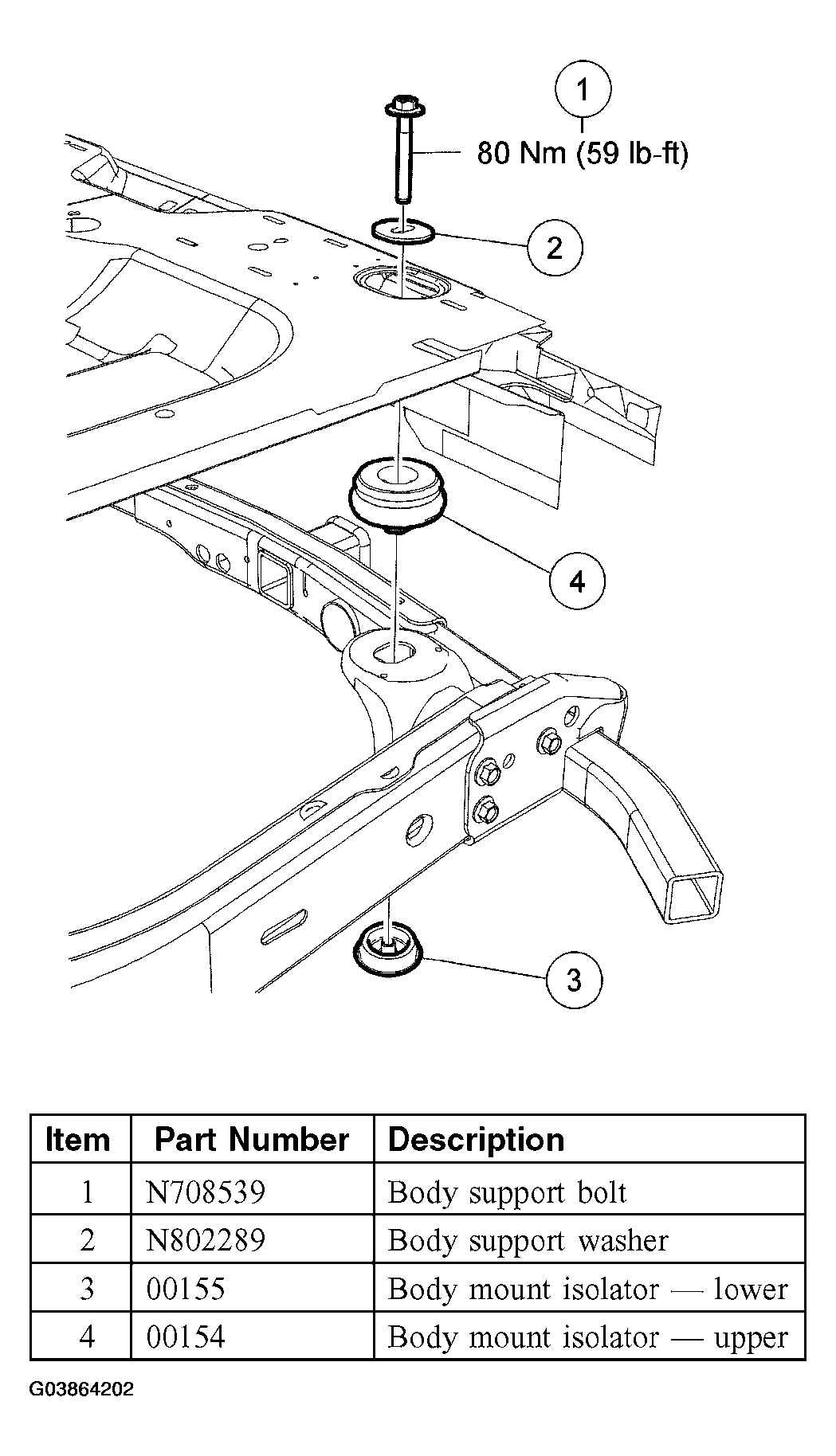

Fig 1: Identifying Body Support Components - Number 4
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
