Crossmember - Front: Notes

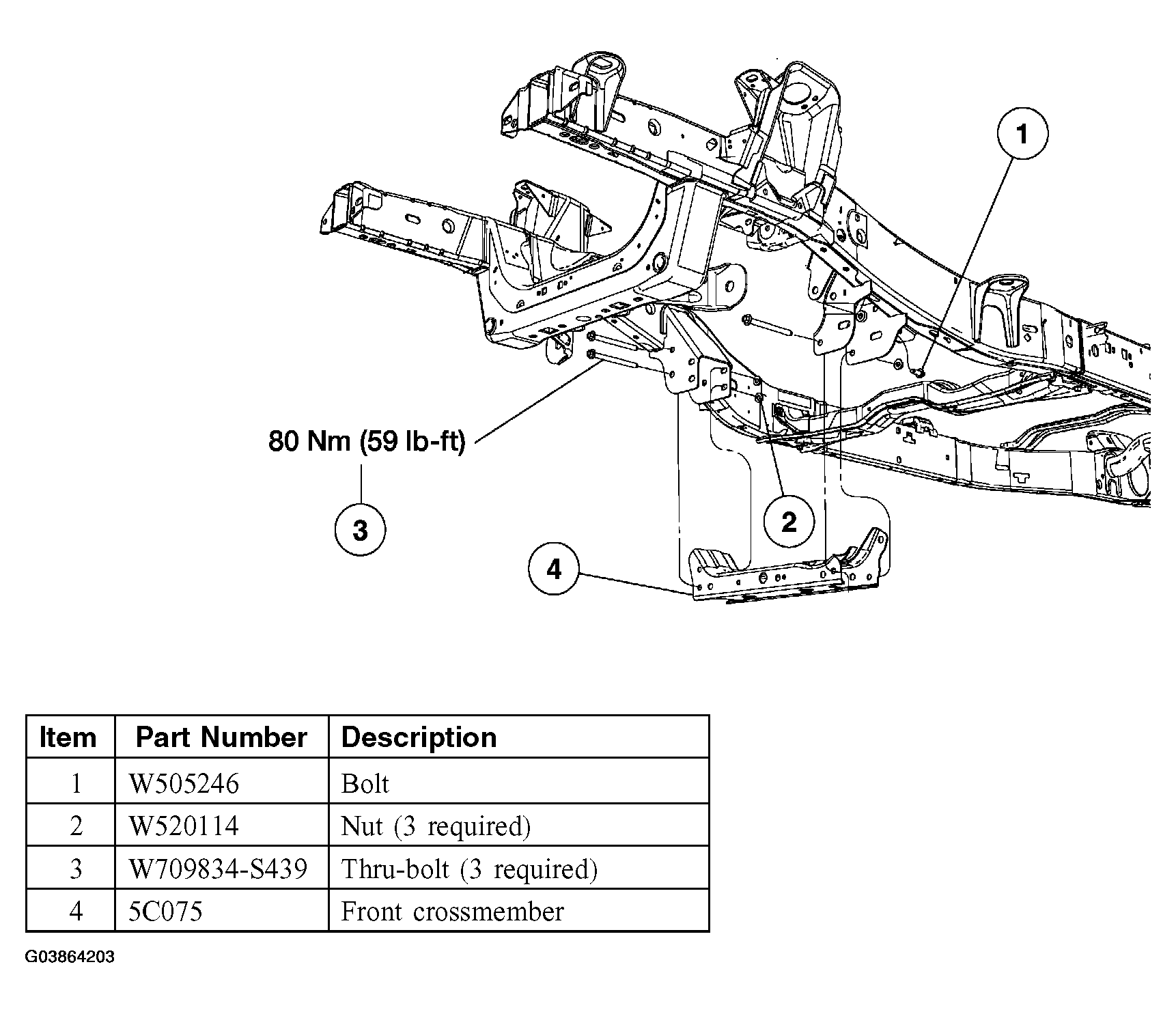

Fig 1: Identifying Front Crossmember Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
